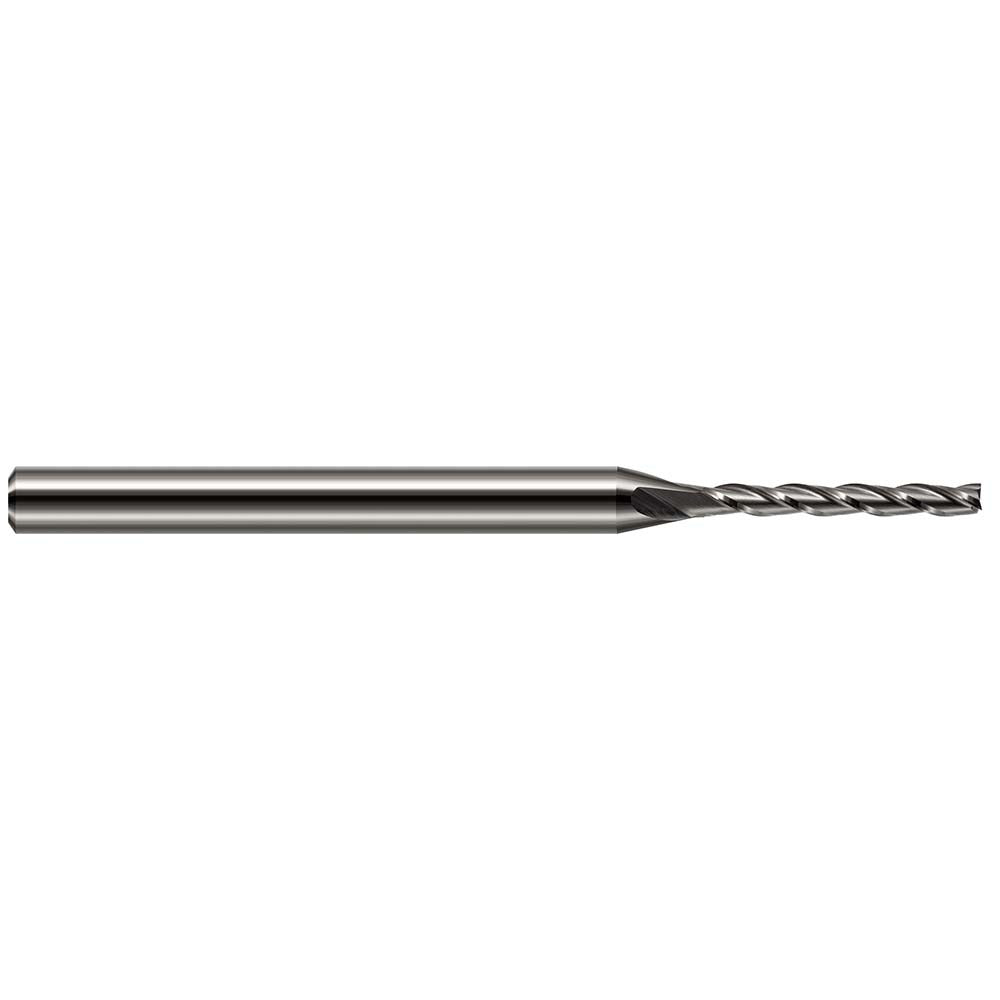

Harvey Tool 898010 Square End Mill 5/32 in 4 Flute Carbide

Product Description

The HARVEY TOOL 898010 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 5/32 inch (0.1562 inch) cutting diameter and a 1-3/32 inch (1.093 inch) length of cut, this four-flute tool delivers accurate material removal in demanding shop environments. The 30-degree helix angle promotes efficient chip evacuation and stable cutting performance. At 3 inches overall length with a 3/16 inch shank diameter, it mounts in standard end mill holders or collet chucks. The bright, uncoated finish makes it suited for a range of ferrous and non-ferrous workpiece materials. Machinists and CNC operators install this tool in vertical mills, machining centers, and manual mills.

This end mill is used in precision machining operations where tight tolerances and clean shoulder milling or slotting are required. Its single-end configuration and right-hand cut with right-hand flute spiral make it a standard choice for conventional and climb milling passes. The non-center-cutting design means it is intended for side milling and peripheral cuts rather than plunge operations. It is appropriate for production shops, tool rooms, and job shop environments handling light to medium-duty milling tasks.

Key Features

• 5/32 inch cutting diameter with 1-3/32 inch length of cut for detailed milling work
• Solid carbide construction for rigidity and wear resistance versus high-speed steel
• Four-flute geometry for improved finish quality and feed rate capability
• 30-degree helix angle promotes chip flow and reduces cutting forces
• Right-hand cut, right-hand flute direction for standard spindle setups
• Bright uncoated finish suitable for general-purpose milling applications

Compatibility

Designed as an OEM-style solid carbide square end mill for use in standard 3/16 inch collets or end mill holders on CNC machining centers and conventional vertical mills.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the 3/16 inch shank fully in the collet or holder and torque the retention mechanism per the toolholder manufacturer specification. This tool is not center-cutting and must not be used for direct plunge operations.
