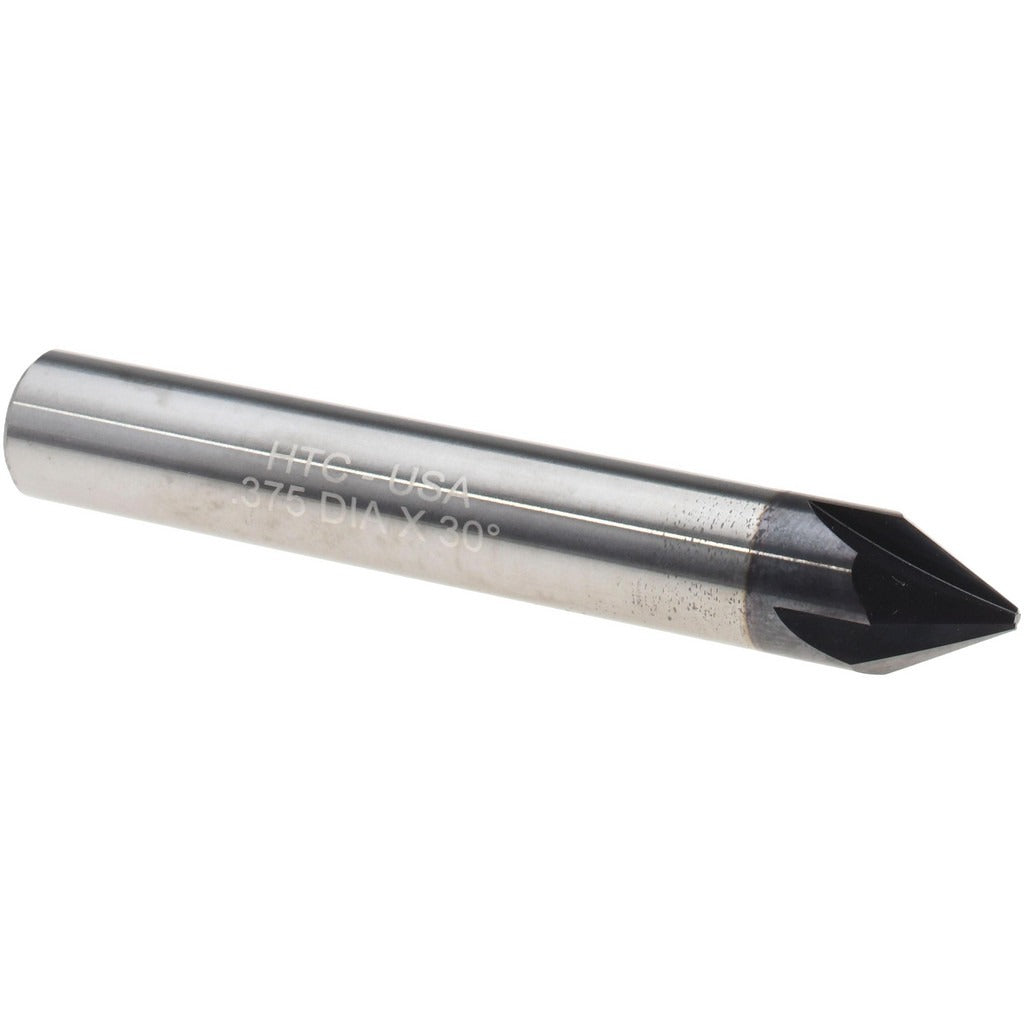

Harvey Tool 895130-C3 Chamfer Mill 3/8 in 4 Flutes Carbide

Product Description

The HARVEY TOOL 895130-C3 is a solid carbide chamfer mill designed for precise edge chamfering and deburring on metalworking and machining applications. This single-end tool features a 3/8-inch cutter head diameter, 4 right-hand cutting flutes, and an AlTiN (aluminum titanium nitride) coating that extends tool life under high-heat cutting conditions. With an overall length of 2.5 inches and a matching 3/8-inch shank diameter, the 895130-C3 is sized for standard end mill toolholders found on CNC machining centers and manual milling machines. The included angle options of 30 and 60 degrees make it adaptable to common chamfer geometry requirements in production and job shop environments.

This chamfer mill is suited for use on ferrous and non-ferrous metals where consistent, clean chamfer geometry is required. It is a practical choice for machinists and tool-and-die professionals working on CNC mills, VMCs, or manual knee mills. Typical applications include edge preparation before welding, thread lead-in chamfering, and part deburring. The AlTiN coating supports higher surface footage and helps resist built-up edge when cutting hardened steels and stainless alloys. The 0.273-inch length of cut provides adequate engagement depth for standard chamfer operations without sacrificing rigidity.

Key Features

• Solid carbide construction for rigidity and wear resistance in metal cutting
• AlTiN coating for extended tool life at elevated cutting temperatures
• 4 right-hand cutting flutes for smooth chip evacuation and finish quality
• 30 and 60 degree included angle geometry for common chamfer profiles
• 3/8-inch shank diameter fits standard end mill holders and collet chucks
• 0.273-inch length of cut for controlled chamfer depth engagement

Compatibility

Designed as an OEM-style replacement or direct-use chamfer mill for standard 3/8-inch end mill toolholders, collet chucks, and shrink-fit holders used on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Ensure the spindle is fully stopped and the machine is powered down before loading or removing the tool from the toolholder. Verify the shank is clean and seated fully in the collet or holder before tightening to the toolholder manufacturer's specification. Always confirm spindle direction is set to right-hand rotation before engaging the cut.
