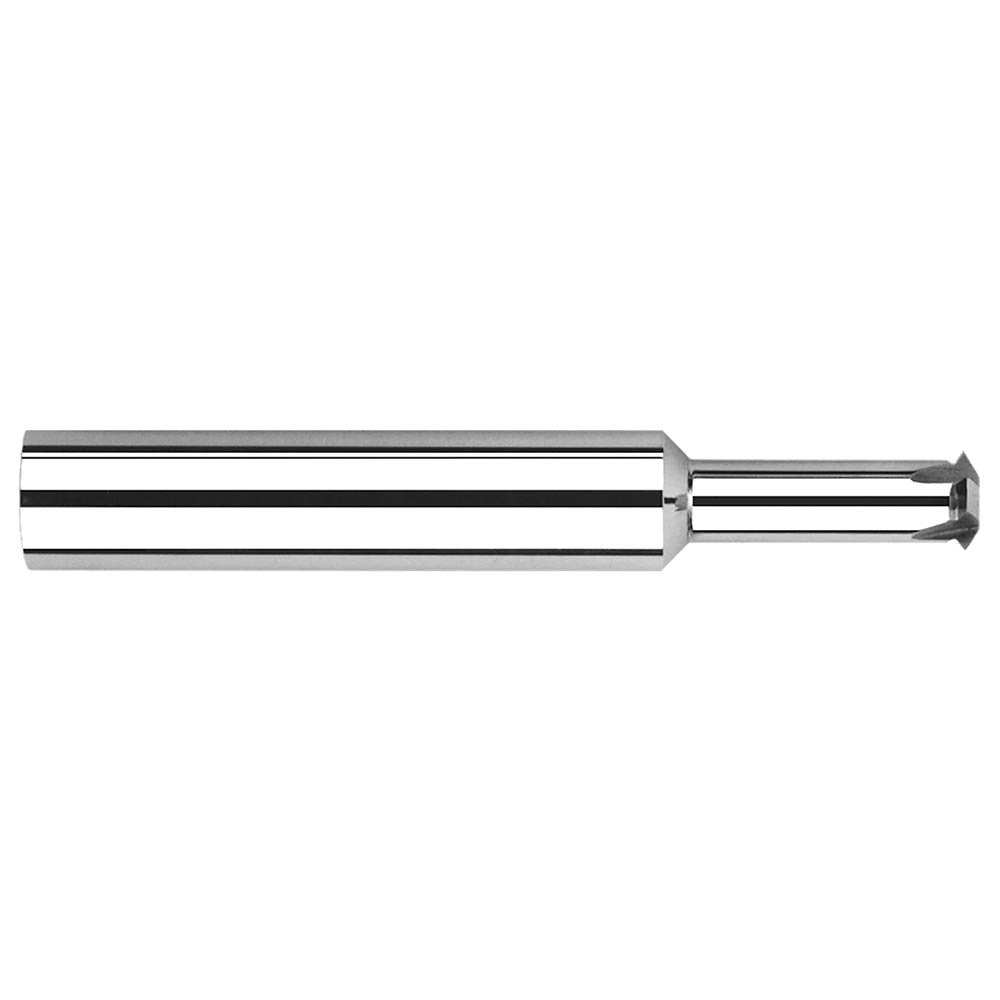

Harvey Tool 882130 Thread Mill M6 X 1.00 4 Flute Carbide

Product Description

The HARVEY TOOL 882130 is a single profile thread mill designed to cut M6 x 1.00 threads in both internal and external applications. Built from solid carbide, it delivers the rigidity and wear resistance required for precision threading in ferrous and non-ferrous materials. The 4-flute geometry supports efficient chip evacuation while maintaining thread form accuracy. With an overall length of 1.9685 inches and a cutting diameter of 4.8 inches, this tool is sized for CNC machining centers where thread milling is preferred over tapping for close-tolerance or difficult-to-reach features. The bright uncoated finish suits general-purpose threading operations across a range of workpiece materials.

This thread mill is suited for machining operations requiring M6 x 1.00 thread profiles in production or job-shop environments. Single profile thread mills like this are commonly used when thread depth, diameter, or material conditions make rigid tapping impractical. The tool handles both internal bores and external thread forms from a single setup, reducing tool changes. It is intended for use in CNC machining centers with helical interpolation capability and is appropriate for aerospace, automotive, and general machining applications.

Key Features

• Cuts M6 x 1.00 internal and external threads with a single tool
• Solid carbide construction for rigidity and extended tool life
• 4-flute design promotes efficient chip evacuation during threading
• Bright uncoated finish suitable for general-purpose and non-ferrous machining
• Neck diameter of 2.88 inches and neck length of 0.5512 inches support reach into confined features
• Compact overall length of 1.9685 inches reduces overhang and deflection risk

Compatibility

Designed for use in CNC machining centers with helical interpolation capability for M6 x 1.00 thread milling applications. No specific machine model compatibility data was provided in the product documentation.

Installation Notes

Thread milling requires a CNC program with helical interpolation; consult the machine controller documentation and tool manufacturer programming guidelines before use. Secure the tool in a collet or hydraulic chuck appropriate for the 6.00 mm shank diameter and verify runout before cutting. Always confirm spindle speed and feed rates against the tool manufacturer recommendations for the workpiece material. Follow standard shop safety practices and ensure the workholding fixture is rigid to minimize vibration during the threading cycle.
