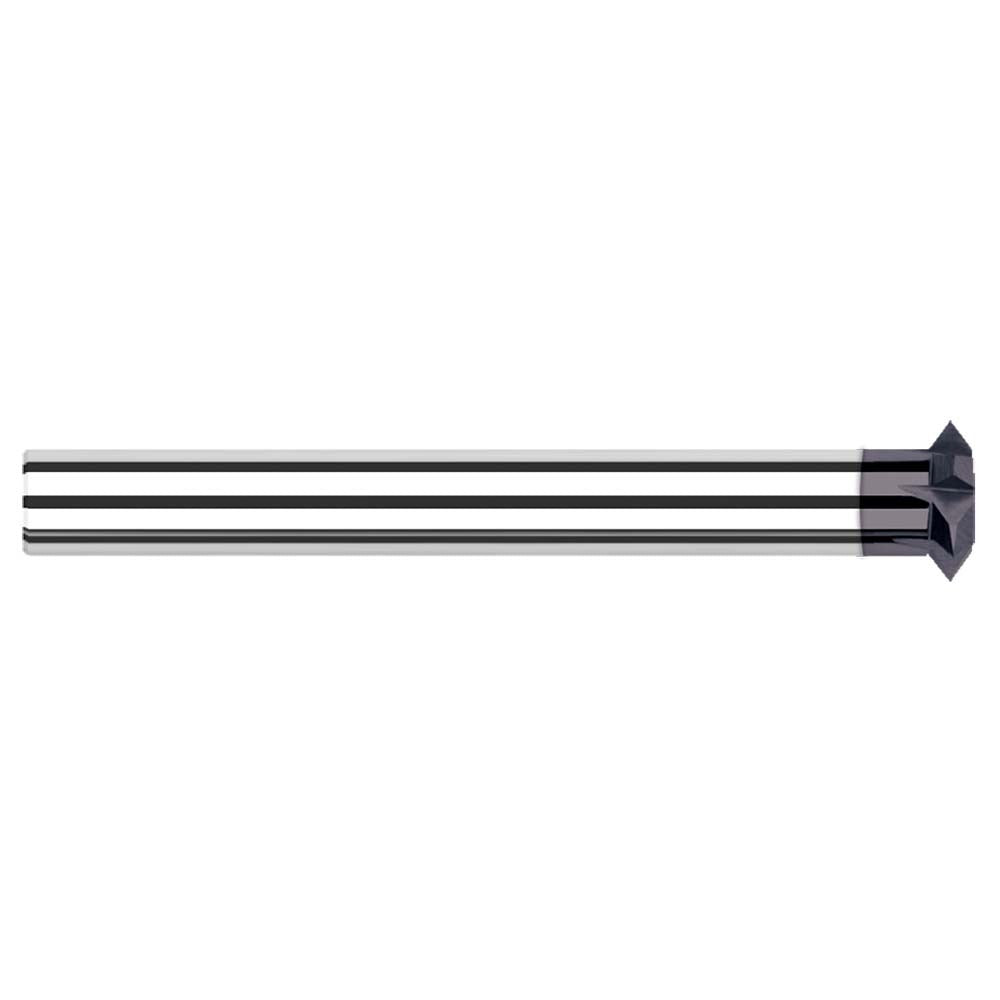

Harvey Tool 875515-C3 Double Angle Milling Cutter 90 Deg

Product Description

The HARVEY TOOL 875515-C3 is a double angle milling cutter designed for precision angular groove and chamfer milling operations in metalworking environments. Built from brazed solid carbide and finished with an AlTiN (aluminum titanium nitride) coating, this cutter handles high-temperature cutting conditions and abrasive materials with consistent edge life. It features a 90-degree included angle, a 5/8-inch cut diameter, and a 0.313-inch cutting width. With 8 teeth and a 5/16-inch shank diameter, it delivers fine chip loads per tooth and smooth finish cuts. It is installed and operated by machinists and CNC tooling professionals on milling machines and machining centers.

This cutter is suited for applications requiring symmetrical angular profiles, including dovetail prep work, V-groove milling, and chamfering on ferrous and non-ferrous metals. The AlTiN coating makes it particularly effective when running at elevated speeds without flood coolant, a common requirement in dry or near-dry machining setups. Its compact 3.313-inch overall length keeps overhang minimal for improved rigidity during aggressive passes. Typical use cases include job shops, tool rooms, and production machining cells where consistent angular geometry is critical.

Key Features

• 90-degree included angle for symmetrical V-groove and chamfer profiles
• Brazed solid carbide construction for rigidity and wear resistance
• AlTiN coating extends tool life in high-heat, dry cutting conditions
• 8 teeth for smooth finish and efficient material removal
• 5/16-inch shank diameter for compatibility with standard collet and end mill holders
• Compact 3.313-inch overall length minimizes overhang and vibration

Compatibility

Designed as an OEM-style replacement and standard tooling option for milling machines and machining centers accepting a 5/16-inch shank collet or tool holder.

Installation Notes

Installation should be performed by a qualified machinist familiar with rotating cutting tool setup. Secure the shank fully within the collet or tool holder to the recommended grip depth before tightening. Verify spindle speed and feed rate settings against the tool manufacturer data for the specific workpiece material before engaging the cut. Inspect the brazed carbide joint and cutting edges for chips or cracks before each use and remove from service if damage is present.
