Harvey Tool 838570-C3 Corner Radius Keyseat Cutter, 1-1/2 in Dia Cutter, 0.25 in W Cutting, 3-1/2 in OAL, 3/4 in Dia Shank Reduced Shank

Product Description

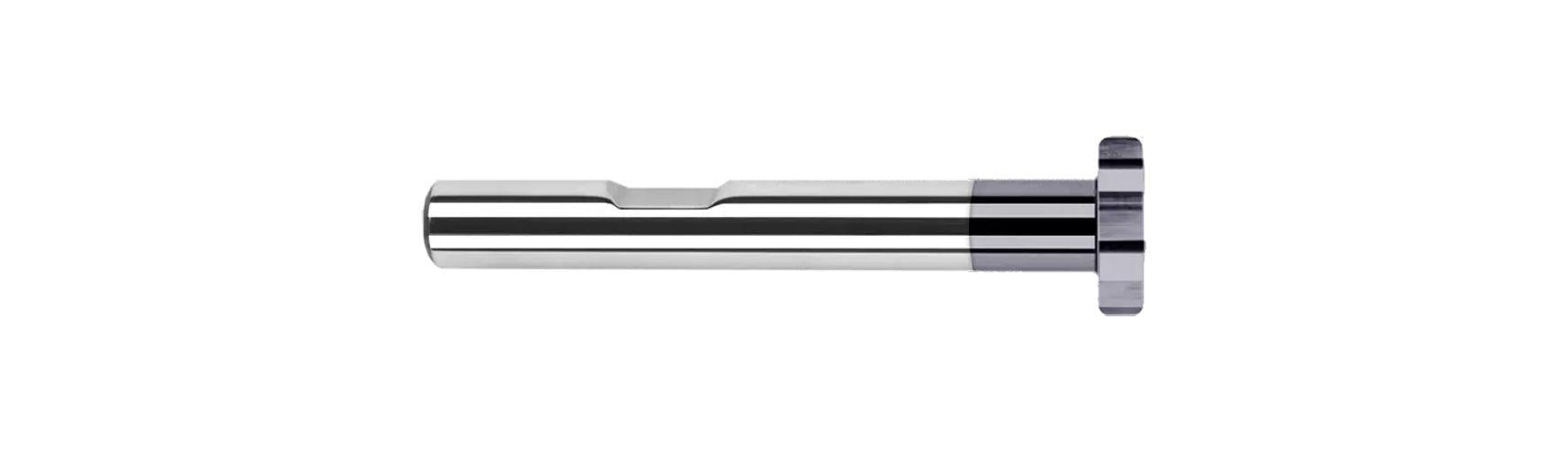

Harvey Tool 838570-C3 is a corner radius keyseat cutter made with a solid carbide head and a steel shank. This tool has a diameter of one and a half inches and cuts with a width of one quarter inch. Its overall length is three and a half inches, making it suitable for various milling applications.

• Material: Solid carbide head fused onto a steel shank
• Coating: AlTiN for improved durability
• Number of teeth: Sixteen for efficient cutting

Product Highlights

This keyseat cutter is designed for cutting keyways in non-ferrous metals, stainless steel, and composites. The reduced shank allows for easy fitting into standard collets and chucks.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 838570-C3

Technical Specifications

• Type: Corner Radius
• Diameter: 1.5000 inches
• Cut Width: 0.2500 inches
• Shank Diameter: 0.7500 inches
• Overall Length: 3.5000 inches
• No. Teeth: 16
• Corner Radius: 0.0300 inches
