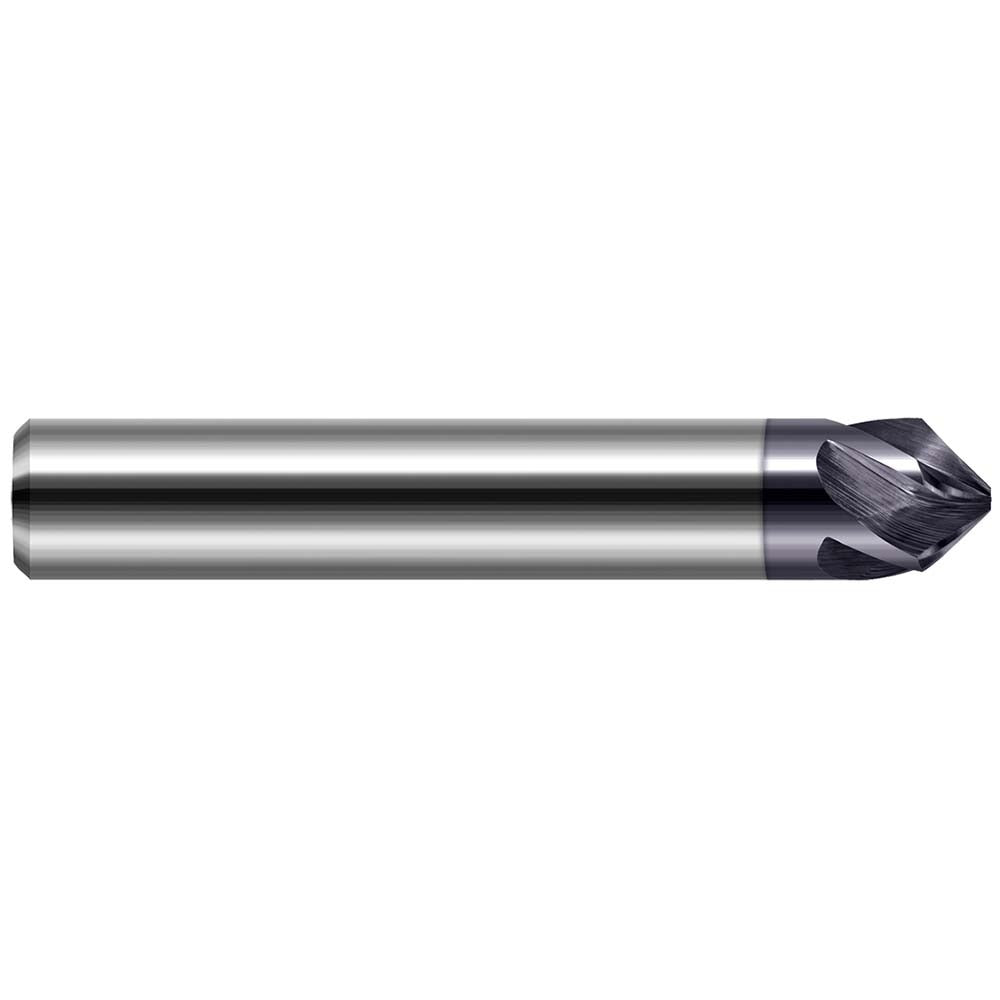

Harvey Tool 832524-C3 Chamfer Mill 3/8 in 5 Flute Carbide

Product Description

The HARVEY TOOL 832524-C3 is a solid carbide chamfer mill designed for chamfering, deburring, and countersinking operations on a wide range of materials. Built with 5 flutes and an AlTiN (Aluminum Titanium Nitride) coating, it handles high-temperature cutting environments and delivers clean, consistent edge breaks on ferrous and nonferrous workpieces. The 3/8 inch cutter head and 3/8 inch shank diameter pair with a 2.5 inch overall length to suit common toolholder setups on CNC machining centers and manual mills. This tool is typically installed and operated by machinists and toolroom professionals.

This chamfer mill is suited for production and job-shop environments where repeatable chamfer geometry is required. The 30 degree and 150 degree included angle configuration covers standard chamfer profiles on steel, aluminum, stainless, and hardened materials. The single-end design keeps setup straightforward, and the right-hand cutting direction is compatible with conventional CNC spindle rotation. The 0.569 inch length of cut provides adequate reach for typical edge-prep and countersink work across a range of workpiece thicknesses.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cutting conditions
• AlTiN coating extends tool life in high-heat, dry, or semi-dry machining applications
• 5-flute geometry increases feed rate capability and improves surface finish on chamfered edges
• 30 degree and 150 degree included angle covers standard chamfer profiles
• Right-hand cut, single-end design compatible with conventional CNC and manual mill setups
• 3/8 inch shank diameter fits standard ER and end mill toolholders

Compatibility

Designed as an OEM-style solid carbide chamfer mill for use in standard 3/8 inch end mill toolholders on CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the spindle before seating or removing the tool from its holder. Use a calibrated torque wrench and appropriate collet or set-screw holder to secure the shank per the toolholder manufacturer specifications. Inspect the cutting edges and coating for chips or wear before each use, and confirm runout with a dial indicator when tight tolerances are required.
