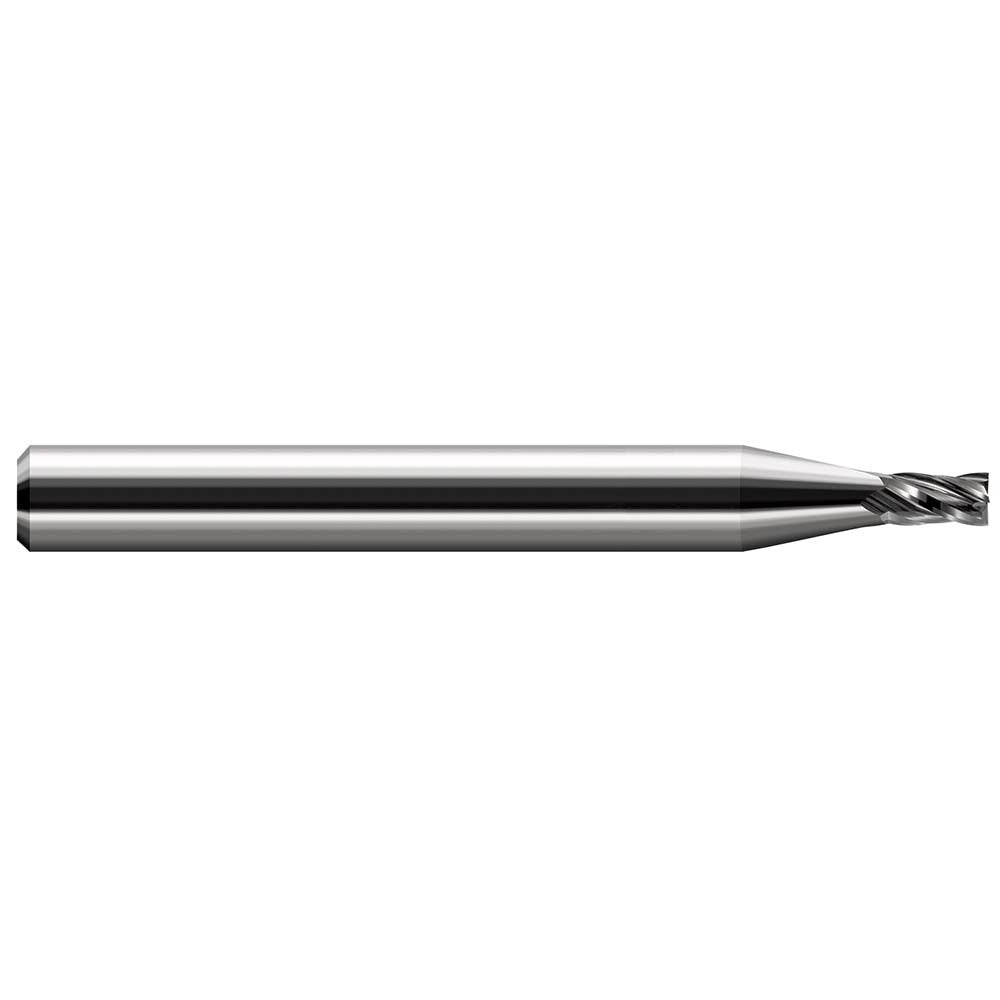

Harvey Tool 823110 Square End Mill 5/32 in 3 Flute Carbide

Product Description

The HARVEY TOOL 823110 is a solid carbide square end mill designed for precise milling operations in metal, composite, and engineering plastic applications. With a 5/32 inch (0.1562 inch) cutting diameter and a 9/32 inch (0.281 inch) length of cut, this tool delivers accurate square shoulders and flat-bottomed features. The 3-flute geometry with a 30-degree helix angle balances chip evacuation with surface finish quality. The bright, uncoated finish suits a broad range of workpiece materials where a coating-free cutting edge is preferred. Machinists and tool-and-die professionals install this end mill in CNC machining centers and manual knee mills.

This end mill is suited for light to medium material removal in ferrous and non-ferrous metals, plastics, and composites. The 3/16 inch (0.1875 inch) shank diameter fits standard ER collet chucks and end mill holders common in both production shops and toolroom environments. The 2 inch overall length keeps the tool compact for rigid setups with minimal deflection. The single-end configuration and right-hand cutting and flute direction make this a straightforward drop-in for standard CNC and manual milling applications.

Key Features

• 5/32 inch (0.1562 inch) cutting diameter for fine-detail milling
• 9/32 inch (0.281 inch) length of cut for adequate reach without sacrificing rigidity
• 3-flute design with 30-degree helix angle for efficient chip clearing and smooth finish
• Solid carbide construction for wear resistance and dimensional stability
• Center-cutting capability allows direct plunge entry into workpiece material
• Bright, uncoated finish compatible with a wide range of base materials

Compatibility

Designed as a standard square end mill for use with collet chucks, end mill holders, and milling arbors accepting a 3/16 inch shank diameter in CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and powered down before changing tooling. Seat the shank fully into the collet or holder and torque the retention hardware to the toolholder manufacturer's specification. Verify runout with a dial indicator before beginning a cut to prevent premature tool wear or part damage.
