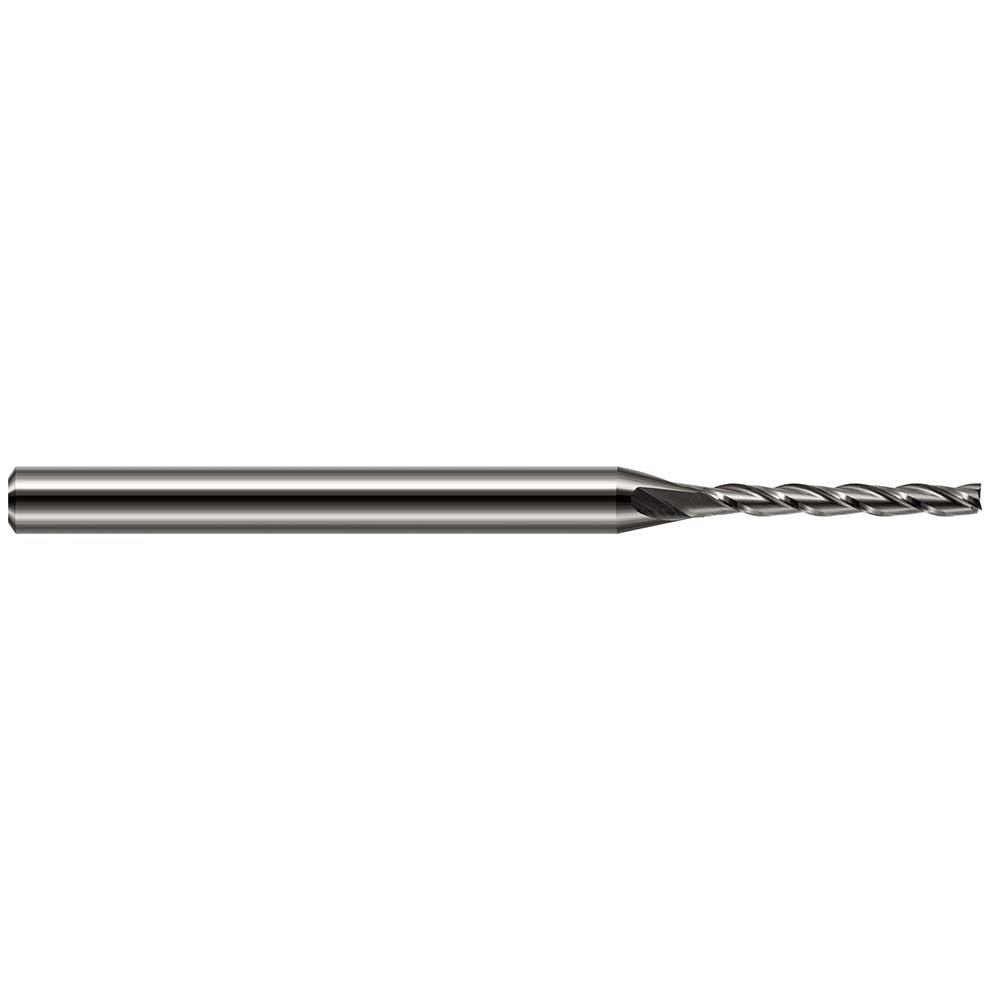

Harvey Tool 810362 Square End Mill 1/16 in 4 Flute Carbide

Product Description

The HARVEY TOOL 810362 is a solid carbide square end mill designed for precise milling in tight-tolerance applications. With a 0.062-inch (1/16 inch) cutting diameter and four flutes, it delivers clean, accurate cuts in ferrous and non-ferrous materials. The 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. The uncoated carbide substrate suits a wide range of general-purpose milling tasks. A 1/8-inch shank diameter makes this tool compatible with standard collets and toolholders found in CNC machining centers and manual mills. It is centercutting, allowing direct plunge entry into workpieces without pre-drilling.

This end mill is suited for detailed slotting, profiling, and pocketing operations where a small-diameter tool is required. The 7/16-inch length of cut (LOC) and 2-1/2-inch overall length (OAL) make it practical for shallow-to-moderate-depth features in dies, molds, medical components, aerospace parts, and precision fixtures. Machinists working with aluminum, brass, steel, and similar materials will find this tool effective for fine-detail work requiring tight runout control.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision milling
• 0.062-inch (1/16 inch) cutting diameter for fine-detail and small-feature work
• Four flutes provide a balance of chip clearance and surface finish quality
• 30-degree helix angle promotes smooth cutting and efficient chip evacuation
• Centercutting geometry allows direct plunge milling without a pilot hole
• Right-hand cut, right-hand flute configuration — standard for CNC and manual mill setups

Compatibility

Designed for use in CNC machining centers and manual mills equipped with 1/8-inch collets or compatible toolholders accepting a 0.125-inch shank diameter.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and the machine in a locked-out state per OSHA lockout/tagout procedures. Ensure the collet and toolholder are clean and free of debris before seating the shank. Use a calibrated torque wrench on collet nuts per the toolholder manufacturer's specification. Verify runout with a dial indicator before beginning a production cut to avoid premature tool wear or part damage.
