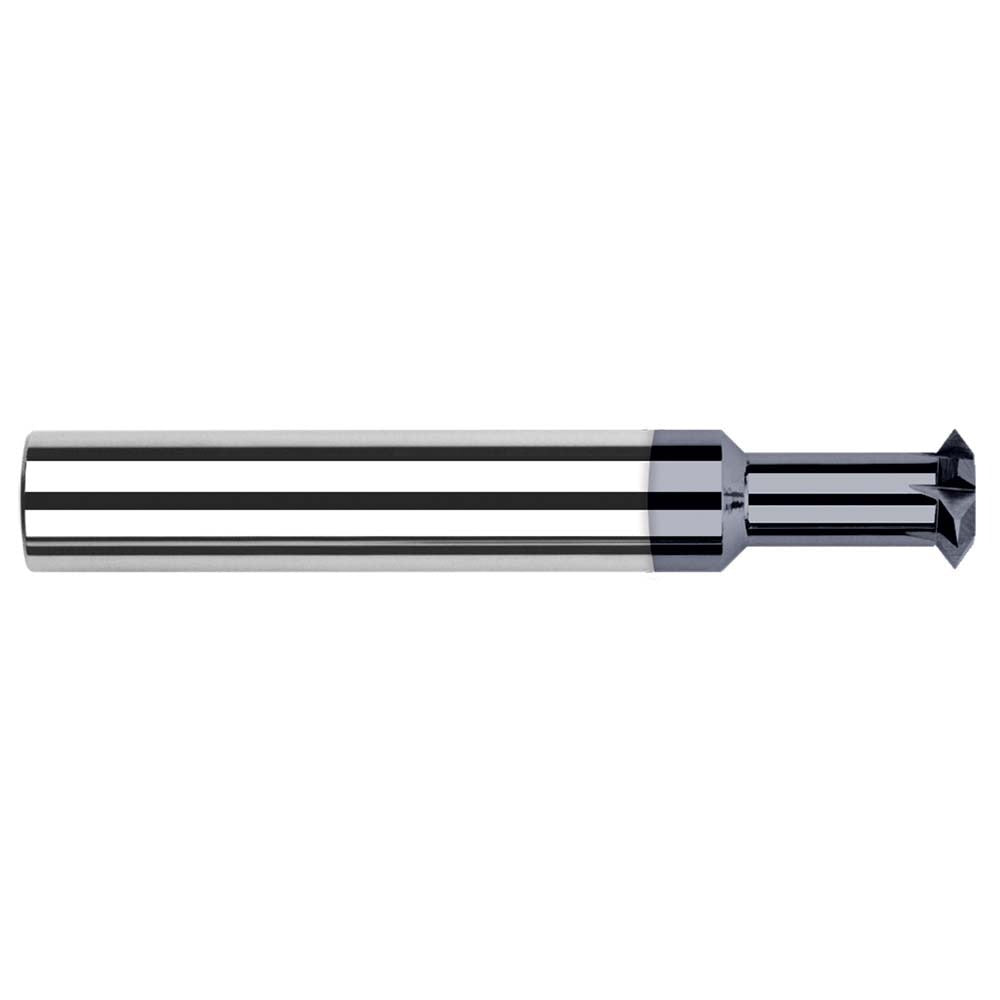

Harvey Tool 807324-C3 Double Angle Milling Cutter 90 Degree

Product Description

The HARVEY TOOL 807324-C3 is a solid carbide double angle milling cutter designed for precision grooving, chamfering, and dovetail-style milling operations on machining centers and manual mills. The included angle measures 90 degrees with a 3/8-inch cut diameter and a 1/8-inch cutting width, making it well suited for tight-tolerance work in ferrous and nonferrous materials. An AlTiN coating improves heat resistance and tool life in demanding cutting conditions. Overall length is 2.5 inches with a 3/8-inch shank diameter. This cutter is installed and operated by machinists and CNC tooling technicians in job shop and production environments.

This cutter fits standard 3/8-inch collets and tool holders used on vertical machining centers, CNC mills, and manual knee mills. With a 1/4-inch neck diameter and 3/4-inch neck length, it provides clearance for recessed features and angled groove work. The 6-flute configuration supports stable, chatter-resistant cutting in steel, stainless, aluminum, and hardened materials. It is appropriate for both roughing and finishing passes where a consistent 90-degree included angle profile is required.

Key Features

• 90-degree included angle for precise chamfering and double-angle groove milling
• Solid carbide construction provides rigidity and dimensional stability
• AlTiN coating improves wear resistance and performance in high-temperature cutting
• 6-tooth design supports smooth, stable cuts with reduced chatter
• 1/4-inch neck diameter and 3/4-inch neck length allow clearance in recessed features
• 3/8-inch shank fits standard collet chucks and end mill holders

Compatibility

Designed for use in standard 3/8-inch collet chucks and tool holders on CNC vertical machining centers and manual mills requiring a 90-degree double angle milling profile.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and locked out per applicable machine safety procedures. Seat the 3/8-inch shank fully into a clean, undamaged collet or end mill holder and torque the retention hardware according to the tool holder manufacturer specifications. Verify runout at the cutting diameter before beginning a cut. Solid carbide tooling is brittle and should not be used in holders with excessive runout or in applications with interrupted cuts beyond the cutter's rated capacity.
