Harvey Tool 787378-C3 Corner Radius End Mill 5/64 in 4 Flute

Product Description

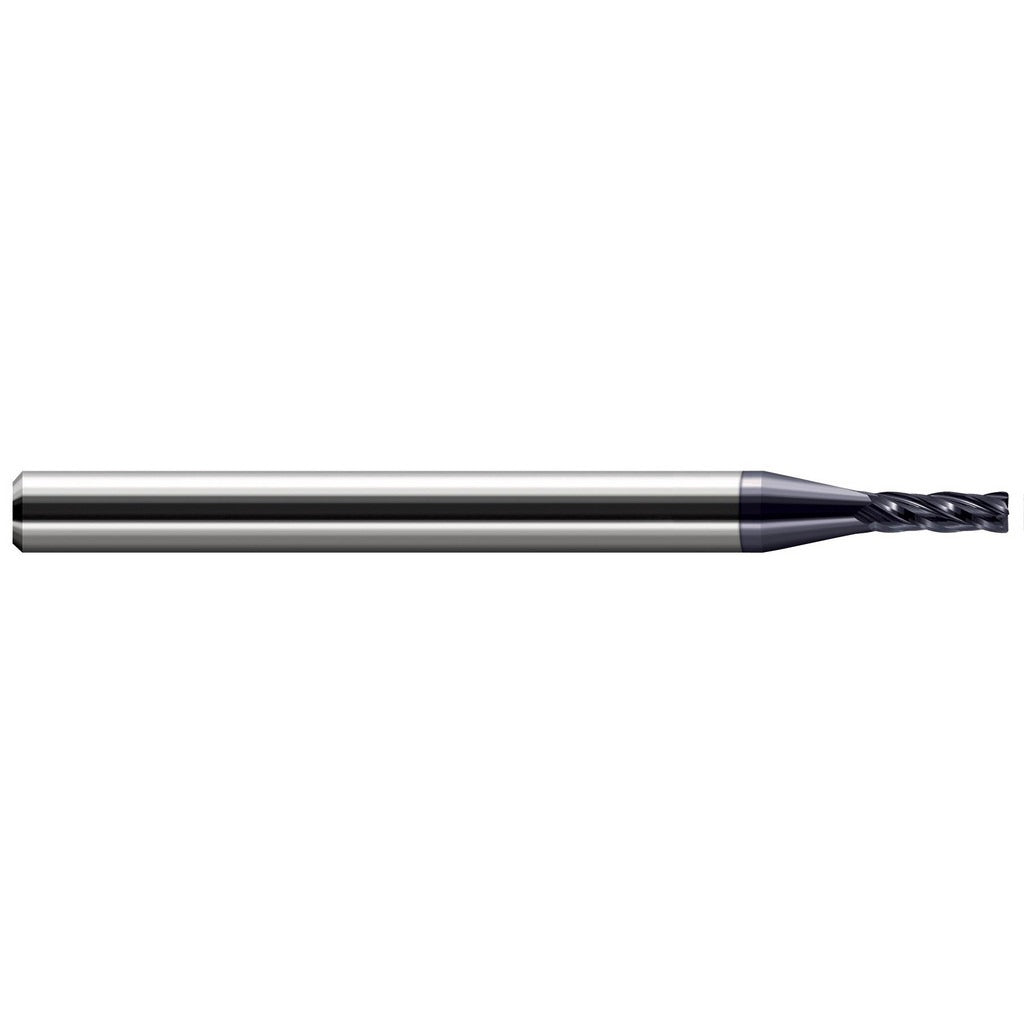

The HARVEY TOOL 787378-C3 is a miniature corner radius end mill designed for precision finishing operations in demanding metalworking applications. Built from solid carbide and coated with AlTiN via a PVD process, this single-end tool features a 5/64 inch (0.0780 inch) diameter, a 0.010 inch corner radius, and 4 helical right-hand flutes. The long-flute geometry provides a 5/16 inch length of cut and an overall length of 2.5 inches with a 1/8 inch straight-cylindrical shank. Centercutting capability allows direct plunging. This tool is intended for use by machinists and tool-and-die professionals running CNC milling operations where tight tolerances and fine surface finishes are required.

The 787378-C3 is suited for finishing passes on steel, stainless steel, cast iron, non-ferrous metals, and composite materials. Its miniature diameter and long-flute design make it well-matched for contouring, profiling, and corner-radius work in tight pockets and narrow features where reach and precision are critical. The 30-degree helix angle promotes smooth chip evacuation during right-hand cutting. It is appropriate for both prototype and production environments operating on CNC machining centers with compatible toolholders sized for a 1/8 inch shank.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous and non-ferrous materials
• AlTiN PVD coating extends tool life in steel and stainless steel applications
• 0.010 inch corner radius with tolerance of plus 0.0002 / minus 0.0002 inch for consistent edge geometry
• Centercutting design permits direct plunge entry without a pilot hole
• Long-flute configuration with 5/16 inch length of cut provides extended reach in shallow pockets
• Right-hand flute direction and right-hand cutting for standard CNC spindle setups

Compatibility

Designed for use with toolholders accepting a 1/8 inch straight-cylindrical shank. Compatible workpiece materials include steel (ISO P), stainless steel (ISO M), cast iron (ISO K), non-ferrous metals (ISO N), and composites (ISO O).

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer's clamping specifications. Ensure the spindle is fully stopped and the machine is in an safe state before changing tooling. Confirm shank seating depth meets the toolholder minimum engagement requirement before tightening. Coolant-through is not supported on this tool; use external coolant or mist lubrication as appropriate for the workpiece material.
