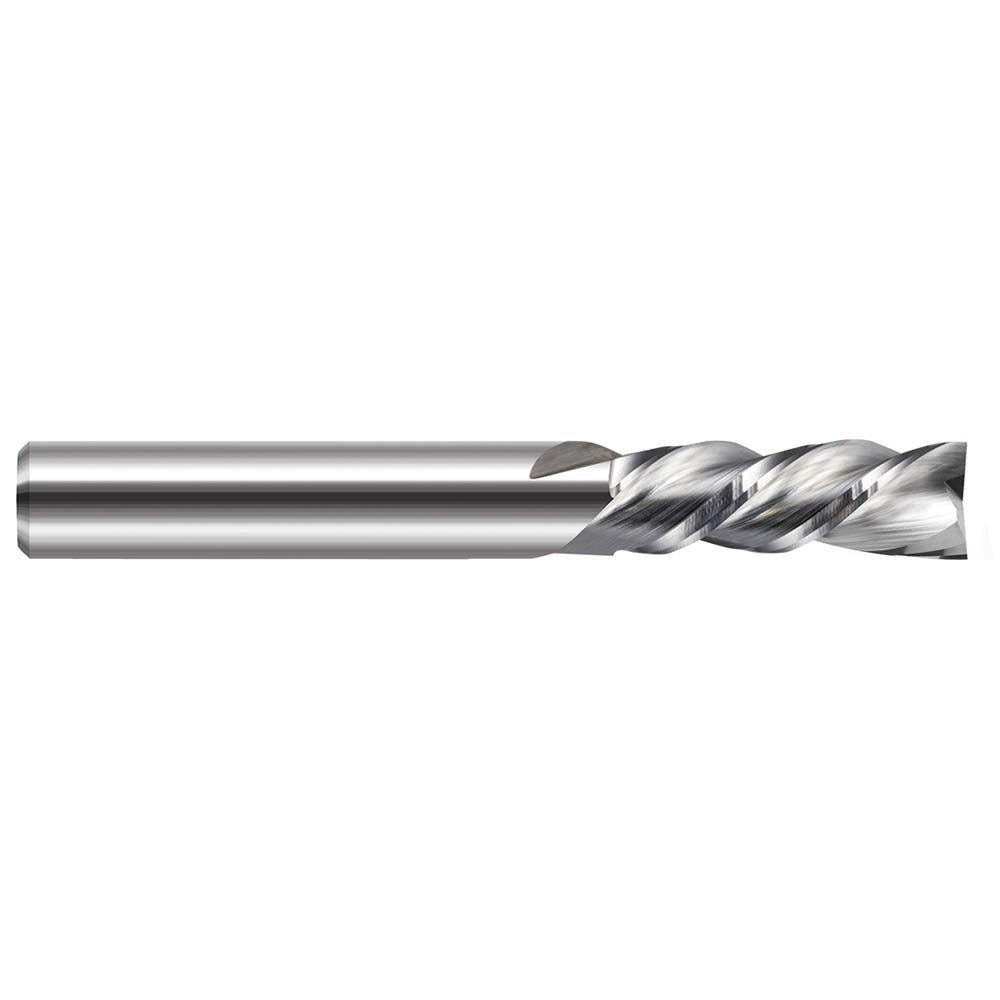

Harvey Tool 775932 Square End Mill 1/2 in 2 Flute Carbide

Product Description

The HARVEY TOOL 775932 is a solid carbide square end mill designed for precision milling operations in metal, wood, composite, and plastic materials. With a 1/2 inch cutting diameter and a 1-1/2 inch length of cut, this tool delivers consistent performance in slotting, profiling, and peripheral milling applications. The 2-flute geometry and 40-degree helix angle promote efficient chip evacuation and smooth cutting action. The bright, uncoated finish is suitable for a wide range of work materials where coating-related chemical reactions or heat buildup are a concern. This end mill is single-end and intended for use in CNC machining centers and manual knee mills operated by machinists and tool-and-die professionals.

This end mill is well suited for production and job-shop environments where a reliable, general-purpose square end geometry is required. The right-hand cutting direction and right-hand flute spiral make it compatible with standard spindle rotation on conventional vertical milling machines and machining centers. The downcut flute type helps reduce surface lifting and workpiece tearout, making it useful in laminated or layered material setups. The 1/2 inch shank diameter fits standard ER and end mill holder collet chucks.

Key Features

• 1/2 inch cutting diameter with 1-1/2 inch length of cut for deep slotting and profiling passes
• 2-flute design promotes chip clearance in full-slot and roughing cuts
• 40-degree helix angle for smooth cutting action and reduced cutting forces
• Downcut flute direction minimizes surface tearout in layered or laminated materials
• Bright, uncoated solid carbide construction compatible with a broad range of work materials
• Right-hand cut and right-hand flute direction for standard spindle operation

Compatibility

Designed as a general-purpose replacement solid carbide square end mill for use in standard 1/2 inch end mill holders, ER collet chucks, and compatible milling machine spindles. Not center-cutting; not suitable for direct plunge entry without a pre-drilled clearance hole.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down before inserting or removing the tool from the holder. Use a calibrated torque wrench and appropriate collet or end mill holder to secure the shank to the manufacturer-recommended clamping specification for the holder type in use. Confirm runout with a dial indicator before initiating a cut to protect both the tool and the workpiece.
