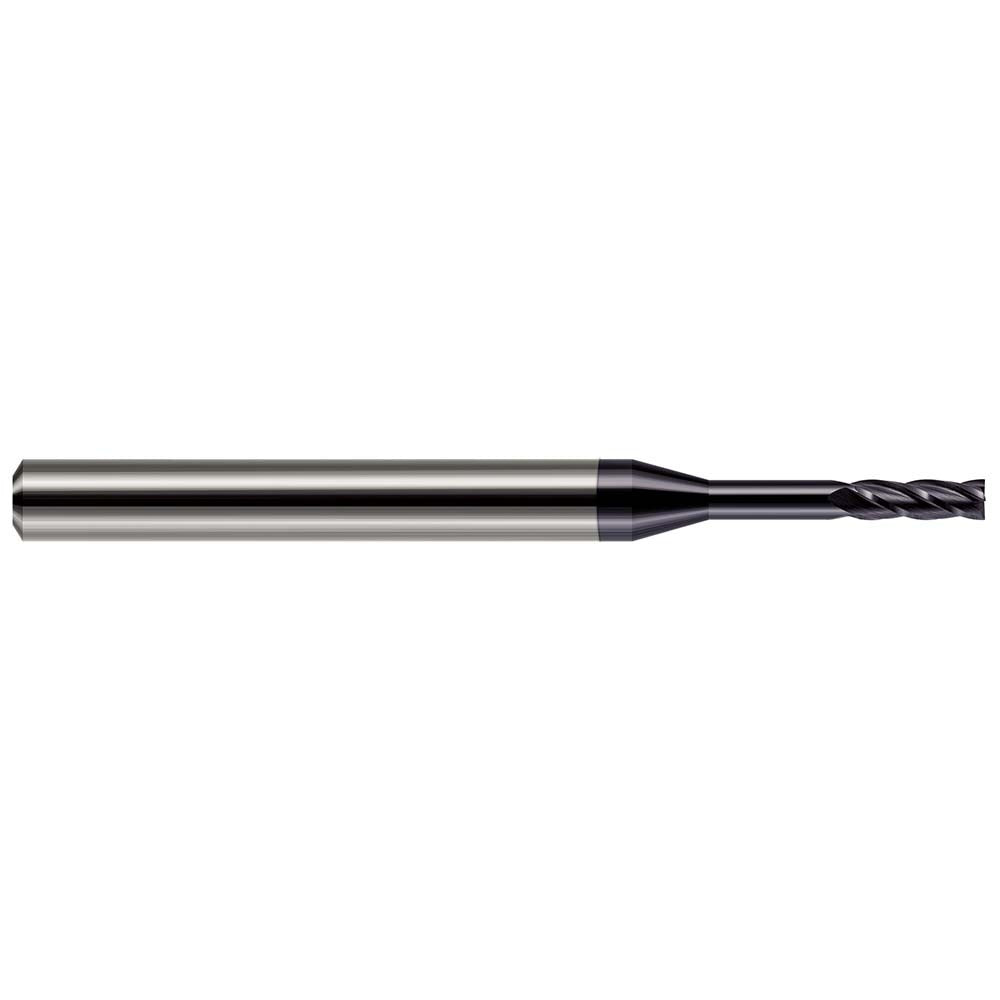

Harvey Tool 76493-C3 Square End Mill 3/32 in 4 Flute Altin

Product Description

The HARVEY TOOL 76493-C3 is a solid carbide square end mill designed for precision milling in ferrous and non-ferrous materials. With a 3/32 inch (0.093 inch) cutting diameter and a 0.279 inch length of cut, this tool handles slotting, profiling, and finishing passes in tight-tolerance work. The AlTiN coating provides oxidation resistance and thermal hardness at elevated cutting temperatures, extending tool life in hardened steels, stainless, and high-temp alloys. Four flutes and a 30-degree helix angle promote efficient chip evacuation and a smooth surface finish. Centercutting geometry allows plunge entry without a pre-drilled hole.

This end mill is suited for CNC machining centers and manual mills where a small-diameter, high-rigidity tool is required. The extended reach design and 5/8 inch reach length make it practical for accessing recessed features or stepped pockets in mold and die work, aerospace components, and precision part manufacturing. The 1/8 inch shank fits standard collets and tool holders in that bore size. Right-hand cut and right-hand flute direction are standard for conventional and climb milling on most setups.

Key Features

• AlTiN coating for thermal resistance and extended tool life in ferrous and hardened materials
• Solid carbide construction for rigidity and wear resistance at small diameters
• 4 flutes with 30-degree helix angle for smooth finish and efficient chip evacuation
• Centercutting design allows direct plunge entry
• Extended reach with 5/8 inch reach length for accessing deep or recessed features
• Right-hand cut, right-hand flute for standard milling direction

Compatibility

Designed as a direct-fit replacement or stocking tool for CNC machining centers and manual mills using 1/8 inch bore collets or tool holders. Compatible with applications requiring small-diameter solid carbide end mills in the 3/32 inch range.

Installation Notes

Installation is performed by a machinist or tooling technician. Secure the 1/8 inch shank in a matched collet or end mill holder and verify runout before cutting. Follow machine manufacturer guidelines for spindle speed, feed rate, and depth of cut appropriate to the workpiece material. Inspect the cutting edge for chipping or wear before each use; do not operate a damaged tool.
