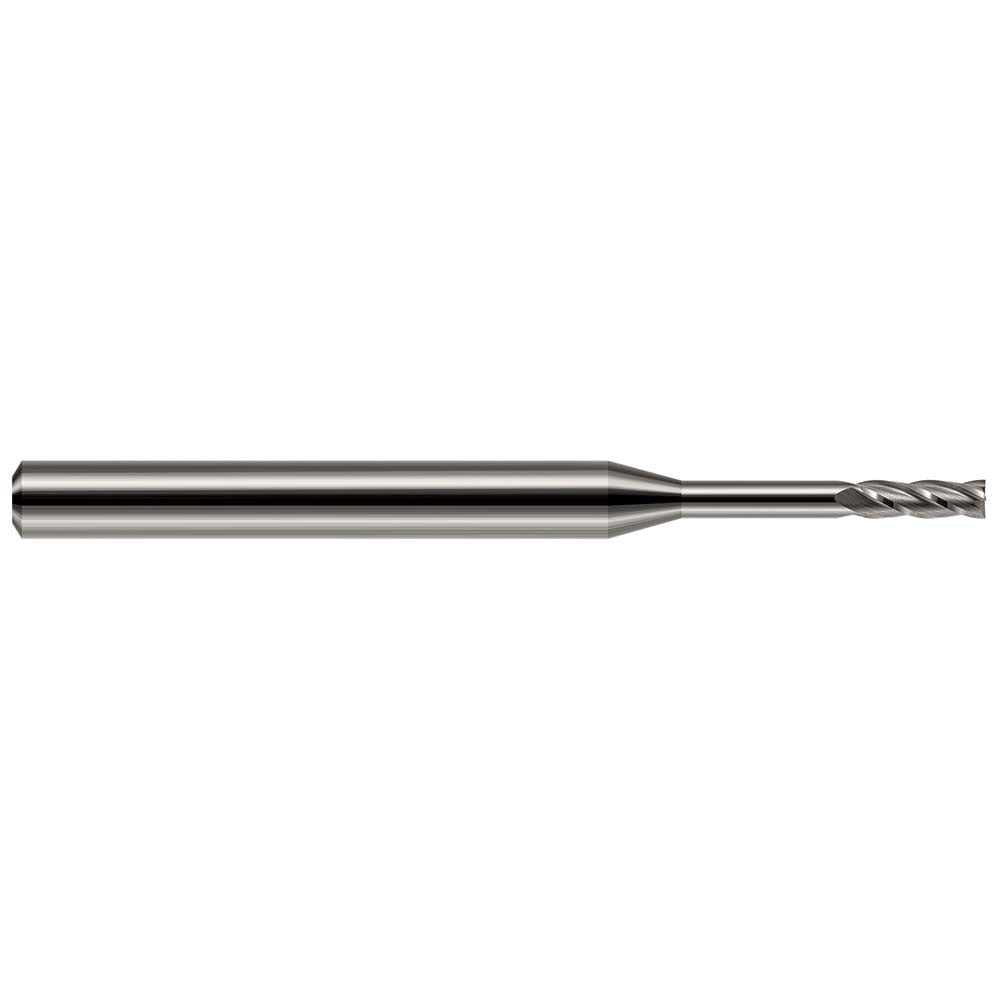

Harvey Tool 76462 Square End Mill 1/16 in 4 Flute Carbide

Product Description

The HARVEY TOOL 76462 is a solid carbide square end mill designed for precision milling in ferrous and non-ferrous materials. With a 1/16 inch (0.0625 inch) cutting diameter and four right-hand spiral flutes at a 30-degree helix angle, this tool delivers clean, accurate cuts in tight-tolerance machining applications. The bright, uncoated finish suits general-purpose use across a range of workpiece materials. At 1.5 inches overall length with a 0.186 inch length of cut, it is built for machinists and tool-and-die professionals who need consistent performance in a small-diameter end mill.

This end mill is suited for CNC milling operations requiring extended reach in close-quarter or deep-pocket work. The 1/2 inch reach length and long-length configuration allow access to features that standard-length tools cannot reach. It is centercutting, enabling plunge entry, and its right-hand cutting direction is compatible with standard CNC spindle rotation. Typical applications include die work, prototype machining, and precision part production in job shops and production environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision milling
• 4 right-hand spiral flutes with 30-degree helix angle for efficient chip evacuation
• Centercutting design allows direct plunge entry without a pre-drilled pilot hole
• Long-length configuration with 1/2 inch reach for extended-reach milling applications
• Bright, uncoated finish suitable for general-purpose use across multiple materials
• Single-end design with 1/8 inch shank diameter for standard collet compatibility

Compatibility

Designed as a general-purpose small-diameter end mill compatible with CNC machining centers and manual mills equipped with a standard 1/8 inch collet or end mill holder.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines for tool holding and runout specifications. Ensure the machine spindle is fully stopped and locked before inserting or removing the tool from the collet. Verify collet size matches the 1/8 inch shank diameter before tightening. Secure the tool to the manufacturer-specified pull-out force to prevent slippage during cutting.
