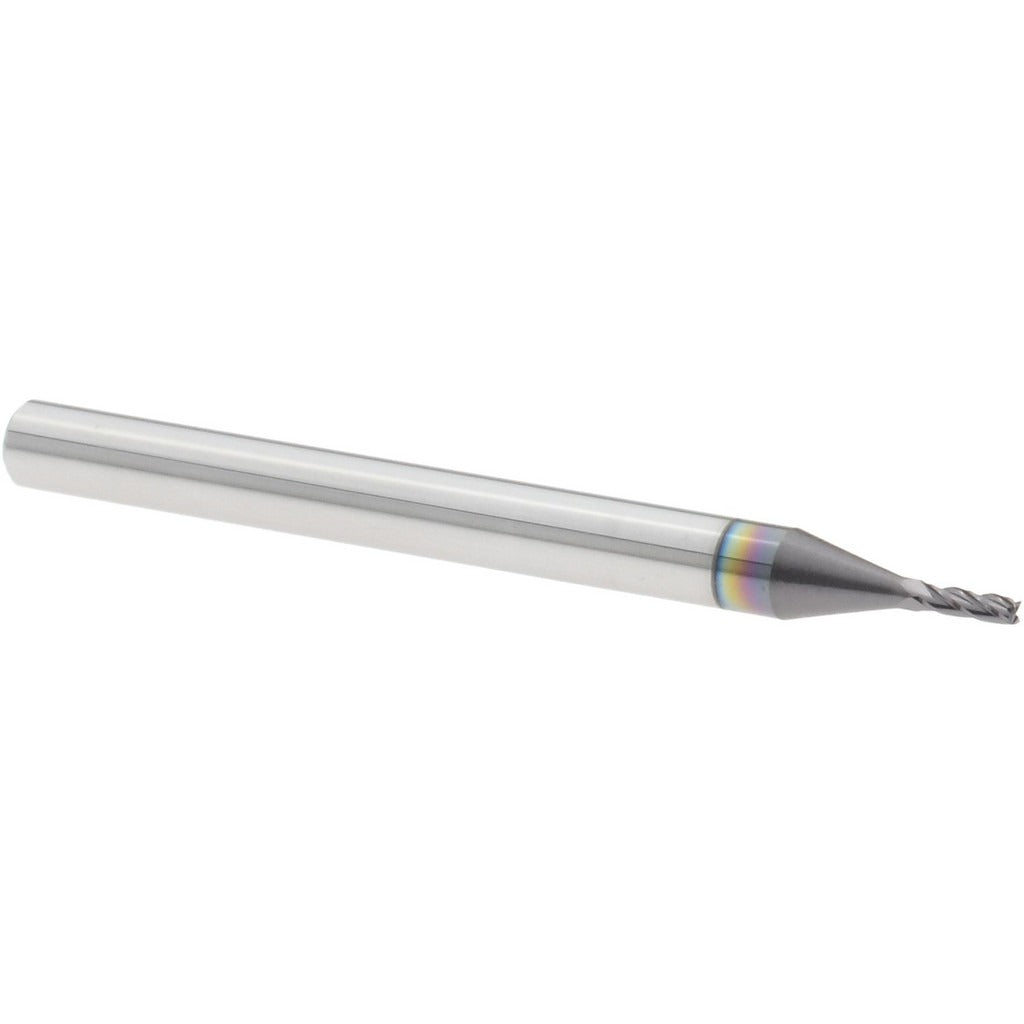

Harvey Tool 73040-C3 Square End Mill 0.04 in 4 Flute Carbide

Product Description

The HARVEY TOOL 73040-C3 is a miniature square end mill designed for precision milling in tight tolerances and small-feature applications. Built from solid carbide, this single-end tool features a 0.04-inch cutting diameter, a 0.12-inch length of cut, and a 1/8-inch shank diameter with an overall length of 1.5 inches. The 4-flute geometry paired with a 30-degree helix angle promotes efficient chip evacuation and smooth surface finishes in hardened and abrasive materials. An AlTiN coating extends tool life by improving heat resistance and reducing friction at the cutting edge. This end mill is centercutting, allowing direct plunge entry into the workpiece.

This end mill is suited for precision machining work in CNC milling centers handling small-scale features in molds, dies, aerospace components, and medical device parts. The 0.04-inch diameter makes it appropriate for micro-slot milling, engraving, and fine-detail contouring in ferrous and non-ferrous metals, as well as hardened steels where AlTiN coating performance is critical. Right-hand cut and right-hand flute orientation are standard for conventional CNC spindle setups. Machinists and tooling shops operating high-speed CNC equipment are the primary users of this tool.

Key Features

• 0.04-inch cutting diameter for micro and small-feature milling operations
• Solid carbide construction for rigidity and wear resistance in demanding materials
• AlTiN coating for elevated heat resistance and extended tool life in ferrous materials
• 4-flute design with 30-degree helix for balanced chip evacuation and surface finish quality
• Centercutting geometry allows direct plunge cutting without pre-drilled entry
• Right-hand cut and right-hand flute for standard CNC spindle compatibility

Compatibility

Designed for use in CNC milling machines and machining centers accepting a 1/8-inch shank diameter collet or end mill holder. Suitable for operations requiring a length-of-cut range of 0.10 to 0.20 inches.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the spindle is fully stopped and the machine is in a safe state before loading or changing tooling. Use a properly sized collet or end mill holder rated for a 1/8-inch shank to prevent runout and tool pull-out during cutting. Due to the small diameter, handle with care to avoid chipping the cutting edges prior to use.
