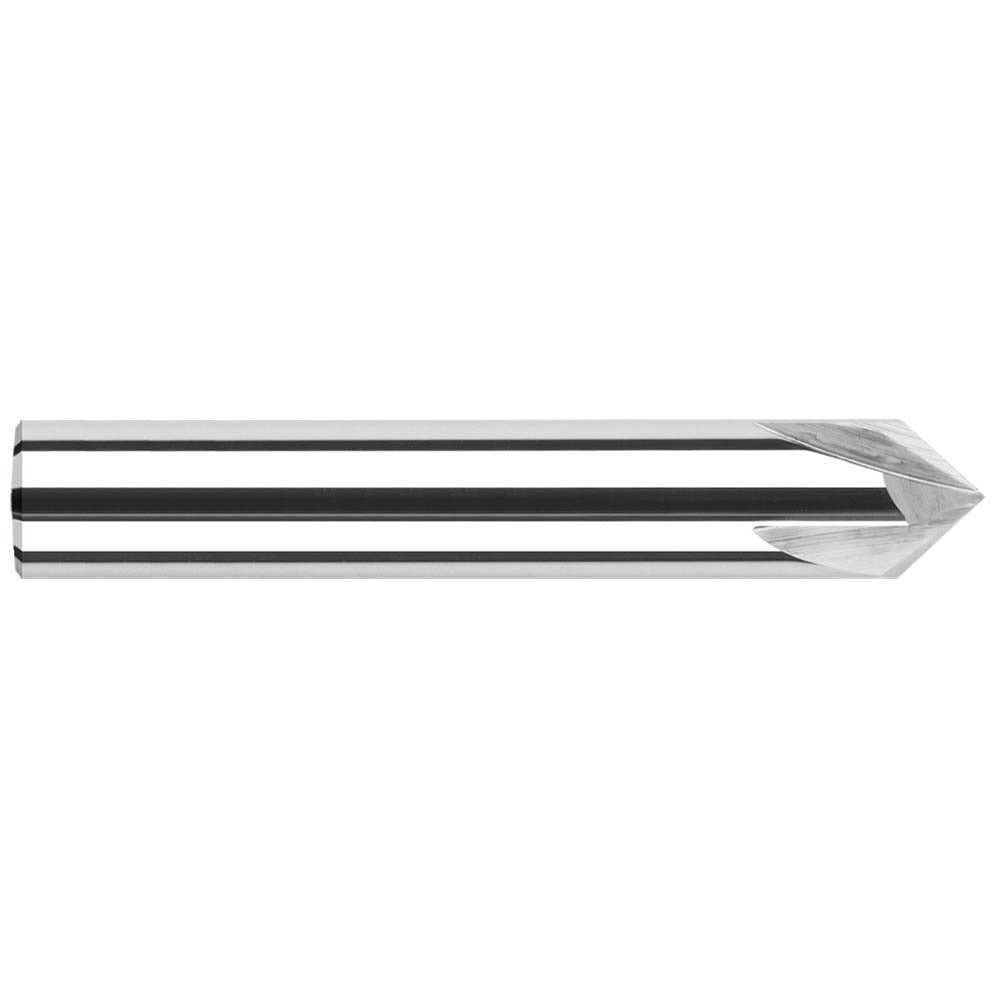

Harvey Tool 72460 Chamfer Mill 3/16 Inches 2 Flute Carbide

Product Description

The HARVEY TOOL 72460 is a single-end chamfer mill designed for chamfering, deburring, and edge-breaking operations on metal and composite workpieces. The cutter is machined from solid carbide, delivering the rigidity and wear resistance required for consistent edge geometry at high spindle speeds. At 3/16 inches in cutter head diameter with a 2-flute configuration, this mill is well suited for small-feature work and tight-tolerance chamfering. It carries a 60-degree and 120-degree included angle geometry, giving machinists flexibility across common chamfer specifications. The bright, uncoated finish keeps it ready for immediate use. Overall length is 2 inches, keeping it compact for use in machining centers and manual mills alike.

The 72460 is intended for use in CNC machining centers and manual milling operations where precise, repeatable chamfers are required on small features. Its 3/16-inch shank diameter and 2-inch overall length make it a practical choice for work in confined areas or on small part profiles. Right-hand cutting direction is standard. Machinists working in job shops, toolrooms, and production environments handling metal parts will find this tool appropriate for deburring drilled holes, prepping edges for weld joints, and generating 60-degree or 120-degree chamfers in a single pass.

Key Features

• Solid carbide construction for rigidity and extended tool life versus high-speed steel alternatives
• Dual included angle geometry: 60 degrees and 120 degrees in a single tool
• 2-flute, single-end design optimized for small-diameter chamfering and deburring
• Bright, uncoated finish suitable for use with or without cutting fluid
• Right-hand cutting direction, compatible with standard spindle rotation
• Compact 2-inch overall length for access to small or confined features

Compatibility

Designed as an OEM-style solid carbide chamfer mill for use in standard 3/16-inch collet or end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by a machinist or toolroom technician. Secure the 3/16-inch shank in a correctly sized collet or end mill holder and verify runout before cutting. Power down the spindle completely before tool changes. Do not exceed the tool manufacturer's recommended feed and speed parameters for solid carbide at this diameter, as small-diameter carbide tooling is susceptible to breakage from side load or excessive chip load.
