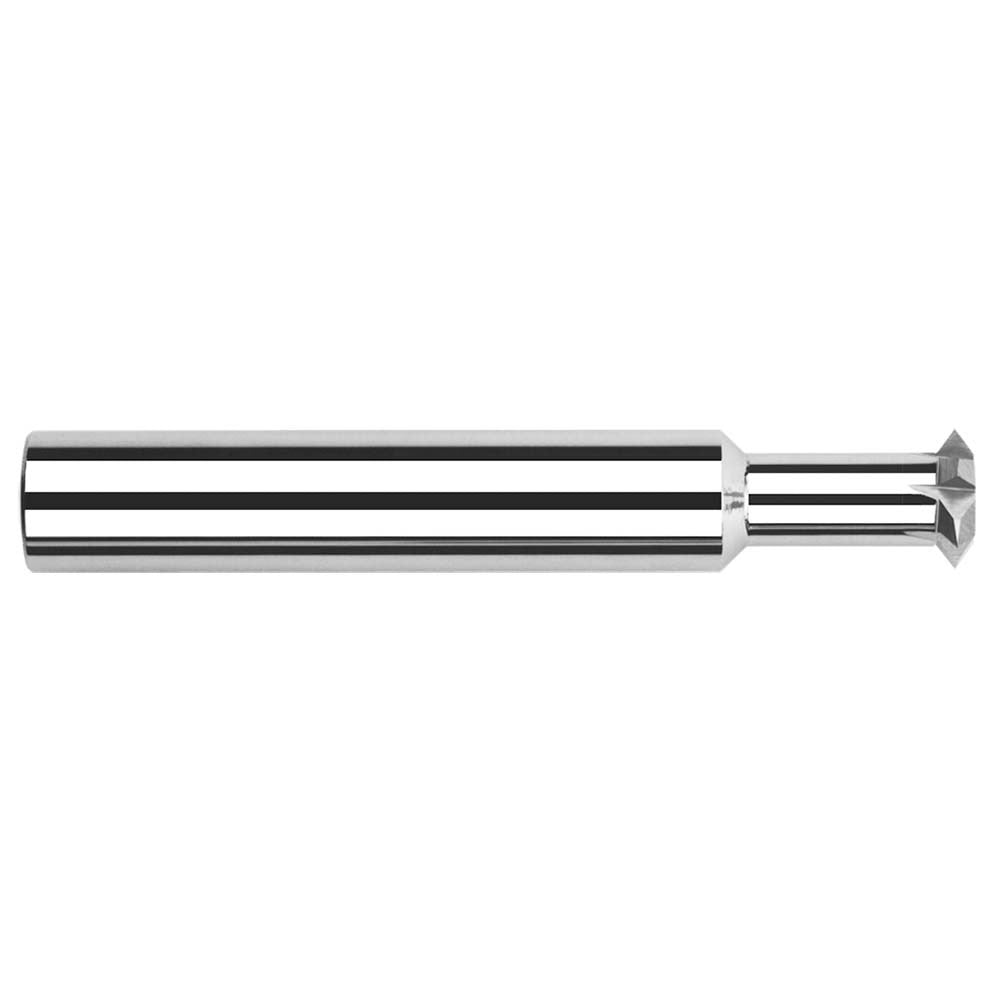

Harvey Tool 71701 Double Angle Milling Cutter 90 Deg

Product Description

The HARVEY TOOL 71701 is a solid carbide double angle milling cutter designed for precision groove milling, chamfering, and angular form work on machining centers and manual mills. The included angle measures 90 degrees, with a cutting diameter of 0.125 inches and a cutting width of 0.0625 inches. The bright uncoated carbide construction delivers sharp edges and dimensional consistency suited for tight-tolerance work in ferrous and non-ferrous materials. With 4 teeth and a 2-inch overall length, this cutter is sized for use in small-bore and close-quarters milling setups. It is typically installed and operated by machinists, tool-and-die makers, and CNC programmers working in job shops or precision manufacturing environments.

This cutter is well suited for dovetail preparation, V-groove finishing, and angular chamfer work on parts requiring a precise 90-degree included angle. The 0.125-inch shank diameter makes it compatible with standard collet systems at that size. The 0.0625-inch neck diameter and 0.625-inch neck length allow reach into recessed features without interference from the shank body. Applications span both prototype and production runs where small-diameter angular cutters are required.

Key Features

• 90-degree included angle for V-groove and chamfer milling
• Solid carbide construction for rigidity and wear resistance
• Bright uncoated finish for sharp cutting edges out of the box
• 4-flute geometry balances chip clearance and surface finish
• 0.0625-inch neck diameter enables reach into tight or recessed features
• 0.125-inch shank diameter fits standard collet chucks at that bore size

Compatibility

Designed for use with standard collet toolholding systems accepting a 0.125-inch shank diameter on CNC machining centers and manual milling machines.

Installation Notes

Installation and operation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank fully into a properly sized collet and torque the drawbar or collet nut per the toolholder manufacturer specification. Verify runout with a dial indicator before beginning a cut, particularly given the small cutter diameter.
