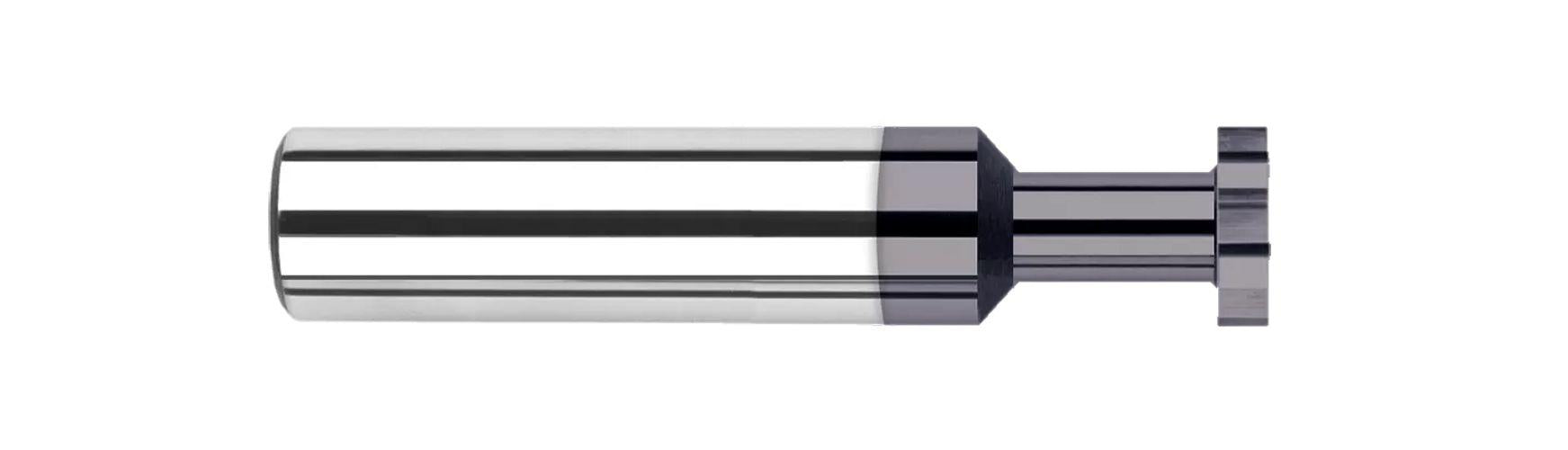

Harvey Tool 70831-C3 Deep Slot Keyseat Cutter 1/4 in Diameter

Product Description

The Harvey Tool 70831-C3 is a deep slot keyseat cutter designed for efficient and precise milling applications. Made from solid carbide and coated with AlTiN for enhanced durability, this cutter is ideal for various materials including non-ferrous metals, steel, and stainless steel. With an overall length of two and a half inches, it features a diameter of one quarter inch and a cutting width of thirty-one thousandths inch.

• Material: Solid Carbide
• Coating: AlTiN for extended cutter life
• Right Hand Cutting Direction

Product Highlights

This cutter is suitable for keyseat cutting tasks and can handle a variety of applications. Its design allows for clearance on both sides, ensuring smooth operation.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 70831-C3

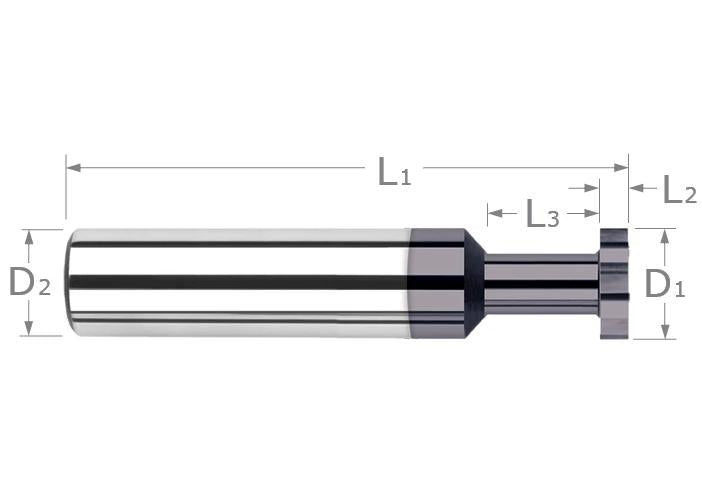

Technical Specifications

• Diameter: 1/4 in
• Cut Width: 0.031 in
• Overall Length: 2-1/2 in
• Neck Diameter: 0.078 in
• No. of Teeth: 6
• Neck Length: 1/8 in
• Shank Diameter: 1/4 in
• Connection Type: Shank
