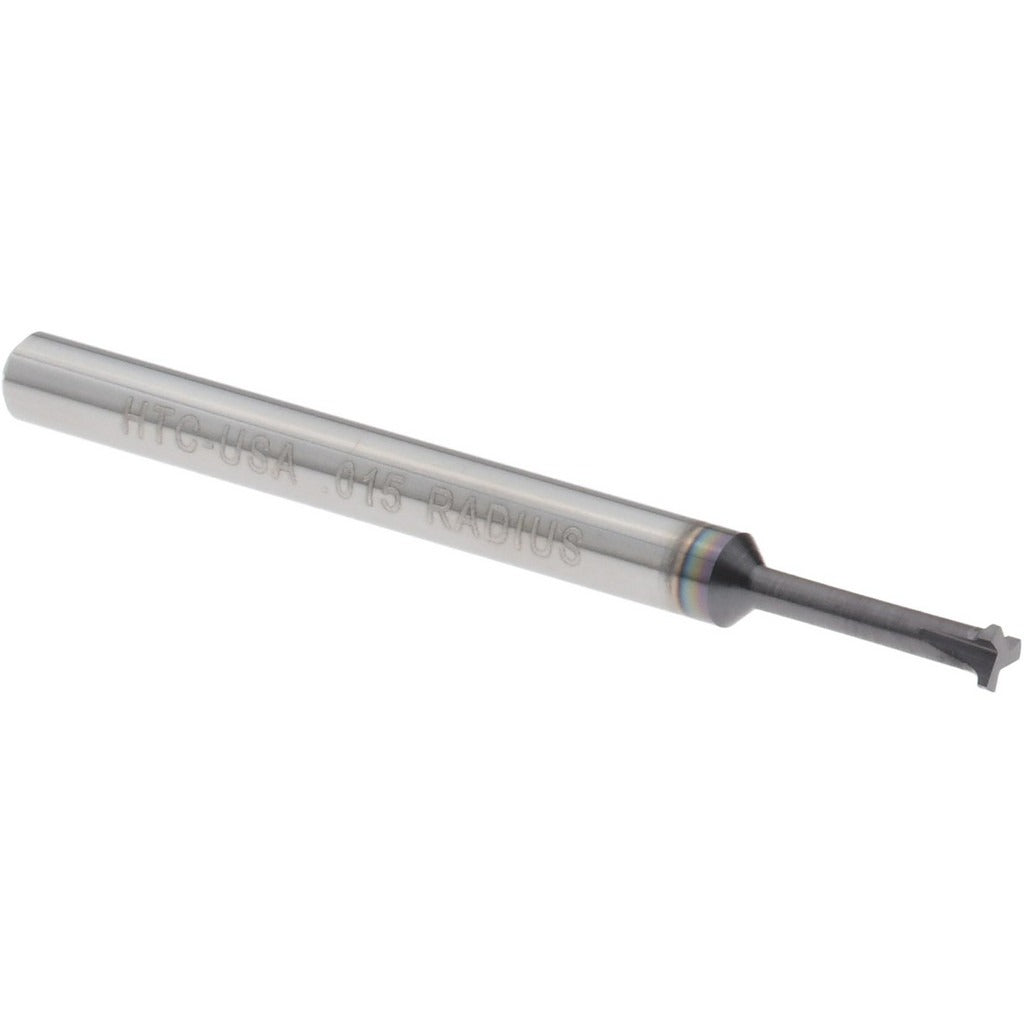

Harvey Tool 59715-C3 Corner Rounding End Mill 3 Flute

Product Description

The HARVEY TOOL 59715-C3 is a corner rounding end mill designed to machine precise radius profiles on workpiece edges. With a 1/64 inch radius and a 0.0900 inch cutting diameter, this tool produces consistent, controlled edge breaks and rounded profiles in a single pass. The 3-flute geometry balances chip evacuation with surface finish quality, making it well suited for finish passes in ferrous and non-ferrous materials. Right-hand cutting and right-hand flute direction are standard on this tool. Machinists and CNC operators working in tight-tolerance environments rely on tools like this for repeatable edge geometry without secondary deburring operations.

This corner rounding end mill is intended for use on CNC machining centers and manual mills where edge radius consistency is critical. Typical applications include aerospace components, medical parts, mold work, and precision mechanical assemblies where sharp edge removal must meet a defined radius specification rather than a simple chamfer. The small diameter and tight radius make this tool appropriate for fine detail work and confined part features where larger tools cannot reach.

Key Features

• 1/64 inch corner radius for precise, defined edge profiling
• 0.0900 inch cutting diameter suited for small-feature and tight-clearance work
• 3-flute design balances chip flow and surface finish on finish passes
• Right-hand cut and right-hand flute direction for standard spindle operation
• Compact overall length of 2.36 inches for use in crowded fixturing setups

Compatibility

Designed as an OEM-style replacement and direct-use corner rounding end mill compatible with standard CNC machining centers and manual mills accepting tool shanks of the appropriate diameter.

Installation Notes

Installation and tool changes must be performed with the spindle fully powered down and the machine in a locked-out state per shop safety and OSHA lockout/tagout procedures. Secure the tool in a collet or end mill holder appropriate for the shank diameter and verify runout before engaging the workpiece. Confirm feeds, speeds, and depth of cut are appropriate for the workpiece material and this tool diameter before beginning the cut. Do not use this tool as a plunge mill unless the specific geometry supports it.
