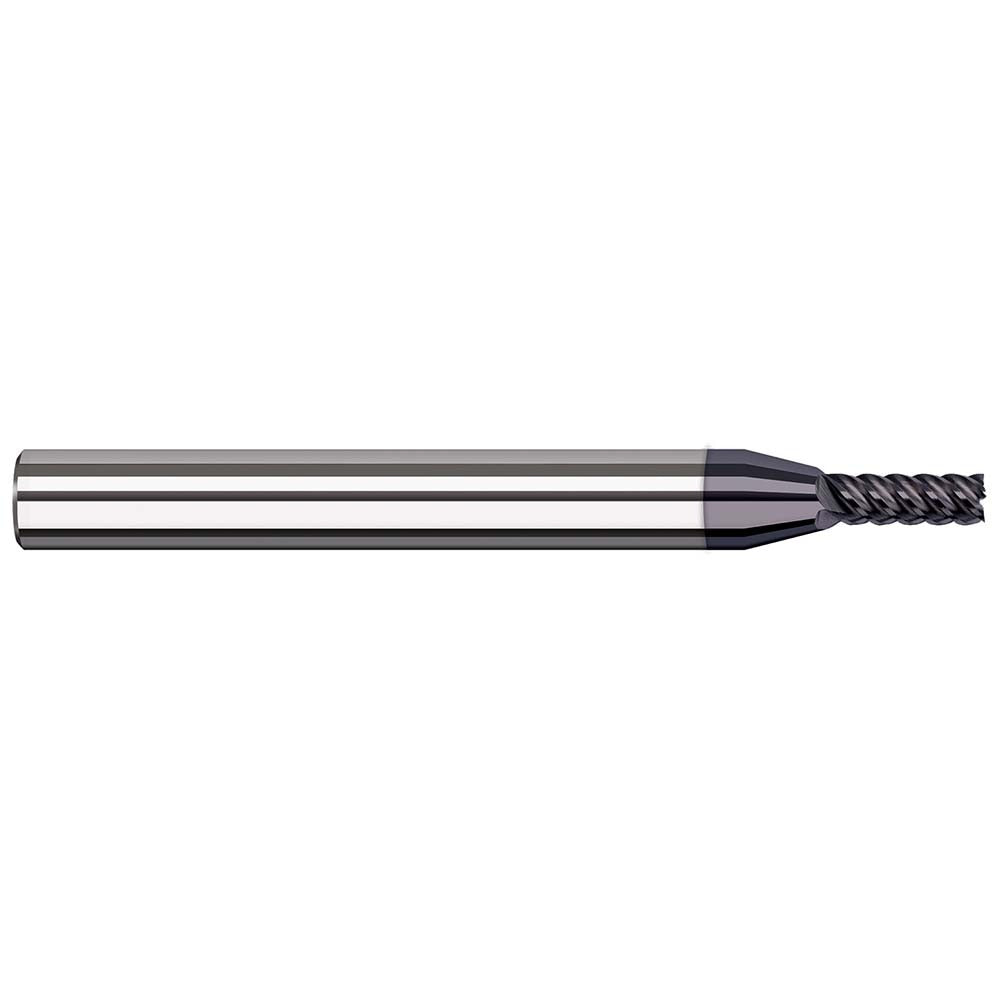

Harvey Tool 57916-C6 Square End Mill 1/4 in 7 Flute Carbide

Product Description

The HARVEY TOOL 57916-C6 is a 7-flute solid carbide square end mill designed for high-performance milling in ferrous and hardened materials. With a 1/4 inch cutting diameter and a 3/4 inch length of cut, this single-end tool is engineered for finishing passes and aggressive material removal in tight-tolerance applications. The AlTiN coating provides thermal resistance and surface hardness, extending tool life in dry or semi-dry cutting conditions. A variable helix geometry at 41 degrees reduces harmonic vibration and chatter, making it well suited for challenging workpiece materials. Machinists and toolroom operators install this end mill in CNC vertical machining centers and similar setups.

This end mill is intended for use in CNC milling operations where vibration damping and tool life are critical concerns. The 7-flute configuration increases chip load per tooth while maintaining core strength, making it appropriate for finishing cuts in steel, stainless steel, and similar hard materials. The right-hand cutting and right-hand flute direction are standard for conventional CNC spindle setups. The 1/4 inch shank diameter fits standard ER and end mill holders commonly found in production and toolroom environments.

Key Features

• 7-flute design increases feed rate capability while maintaining a strong core
• AlTiN coating improves heat resistance and wear life in ferrous materials
• Variable 41-degree helix reduces vibration and chatter during cutting
• Solid carbide construction provides rigidity and dimensional stability
• Right-hand cut and right-hand flute direction for standard CNC spindle compatibility
• Single-end geometry with a 3/4 inch length of cut suited for finish milling passes

Compatibility

Designed as a direct-fit replacement end mill for CNC machining centers and milling machines accepting a 1/4 inch shank diameter toolholder.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the shank fully in the toolholder to the recommended gauge line depth before tightening; insufficient engagement reduces rigidity and accelerates tool wear. Verify spindle runout with a dial indicator before cutting. Note that this end mill is not centercutting and should not be used for direct plunge entry into a solid workpiece.
