Harvey Tool 52916-C3 HARVEY 1/4X3/8 270 DEG BALL ENDMILL ALTIN

Product Description

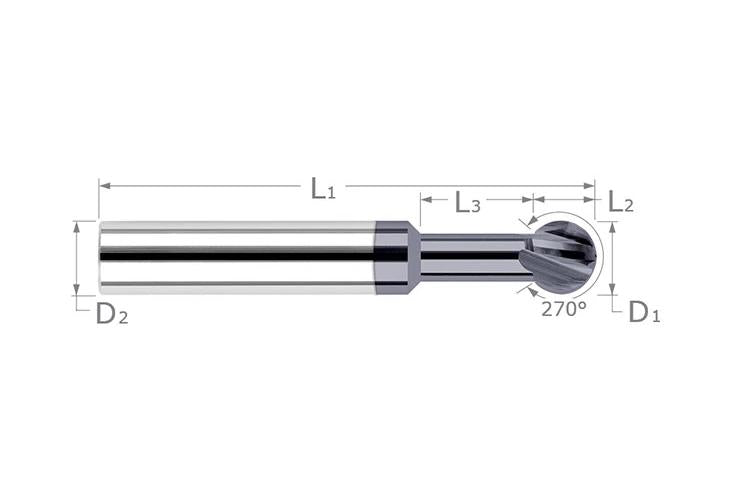

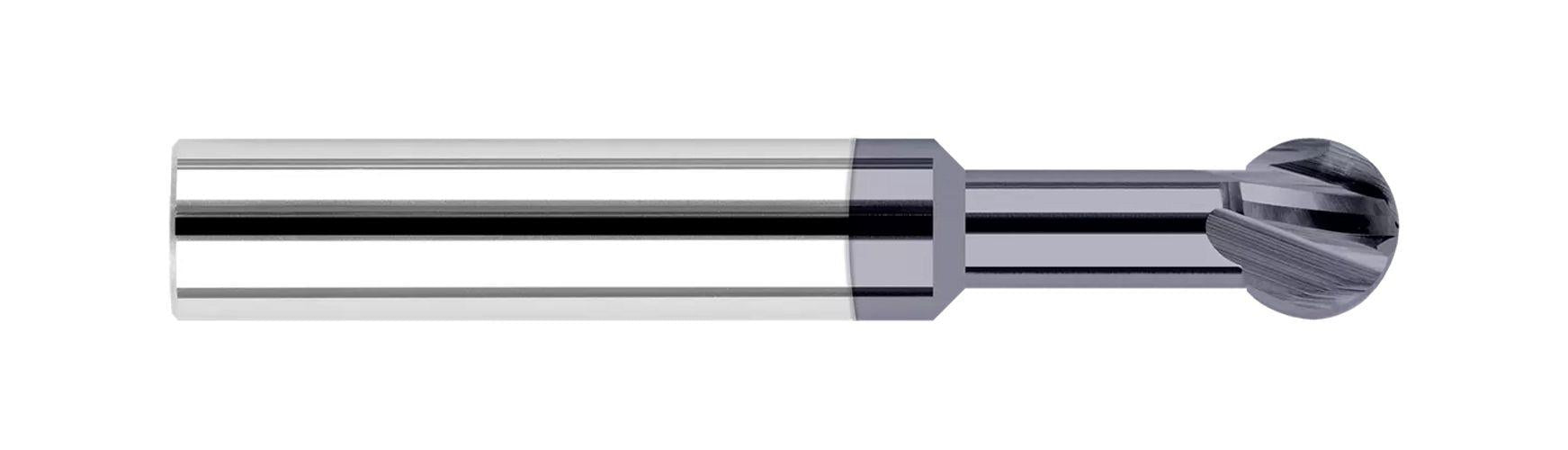

The Harvey Tool 52916-C3 is a carbide undercutting end mill designed for effective milling tasks. This tool features a cutter diameter of one fourth of an inch and a neck length of three eighths of an inch with a 270-degree spherical profile. The four-flute design allows for precision cutting, making it ideal for various applications including deburring and multi-axis machining.

• 270-degree spherical ball design
• Solid carbide construction with AlTiN coating
• Suitable for non-ferrous metals, cast iron, and steel

Product Highlights

This end mill is engineered for stability and efficiency, providing a reliable option for milling operations.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

Technical Specifications

• MPN: 52916-C3
• Diameter: 0.25 in
• Shank Diameter: 1/4 in
• Overall Length: 2-1/2 in
• Length of Cut: 0.213 in
• Number of Flutes: 4
• Helix Angle: 10 deg
• Neck Length: 0.3750 in
