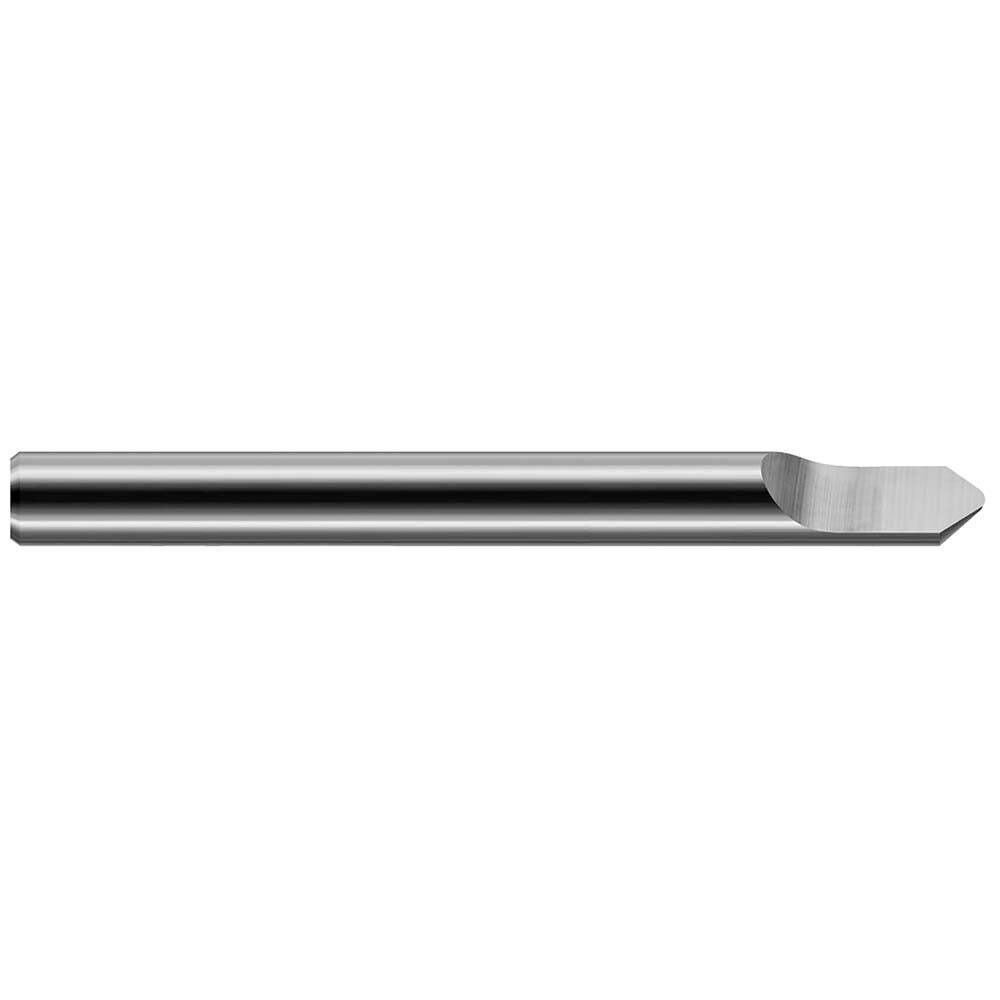

Harvey Tool 49110 Engraving Cutter 90 Degree 1/8 in Carbide

Product Description

The HARVEY TOOL 49110 is a solid carbide engraving cutter designed for precision engraving and marking operations on ferrous and non-ferrous metals. Built with a 90-degree included angle and a tip radius point geometry, it cuts clean, consistent V-profiles in demanding materials. The single-flute design aids chip evacuation in tight engraving passes. With a 1/8-inch cutter diameter and 0.058-inch length of cut, this tool is suited for fine detail work where dimensional accuracy is critical. Machinists and CNC operators specify this cutter for jobs where surface finish and edge definition are non-negotiable.

This engraving cutter is intended for use on ferrous and non-ferrous metals in CNC machining and engraving applications. Its 1/8-inch shank fits standard collets and tool holders commonly found on vertical machining centers and engraving machines. The 1-1/2-inch overall length provides adequate reach for most fixturing setups without sacrificing rigidity. It is appropriate for shop environments handling stainless steel, aluminum, brass, and similar materials where a reliable, repeatable engraving profile is required.

Key Features

• 90-degree included angle with tip radius point for clean V-groove engraving
• Solid carbide construction for rigidity and wear resistance in metal applications
• Single-flute design promotes chip clearing during engraving passes
• Uncoated finish suitable for both ferrous and non-ferrous metal workpieces
• 0.058-inch length of cut for controlled, fine-detail engraving depth
• Right-hand cutting direction compatible with standard CNC spindle configurations

Compatibility

Designed for use on ferrous and non-ferrous metals. Fits 1/8-inch collets and tool holders on CNC machining centers and engraving machines.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine spindle fully stopped and the controller in a safe state. Secure the 1/8-inch shank firmly in a matched collet or tool holder to minimize runout. Verify tool projection and reach against the workpiece setup before initiating a cutting program. Follow the machine manufacturer and shop safety guidelines for speeds and feeds appropriate to the workpiece material.
