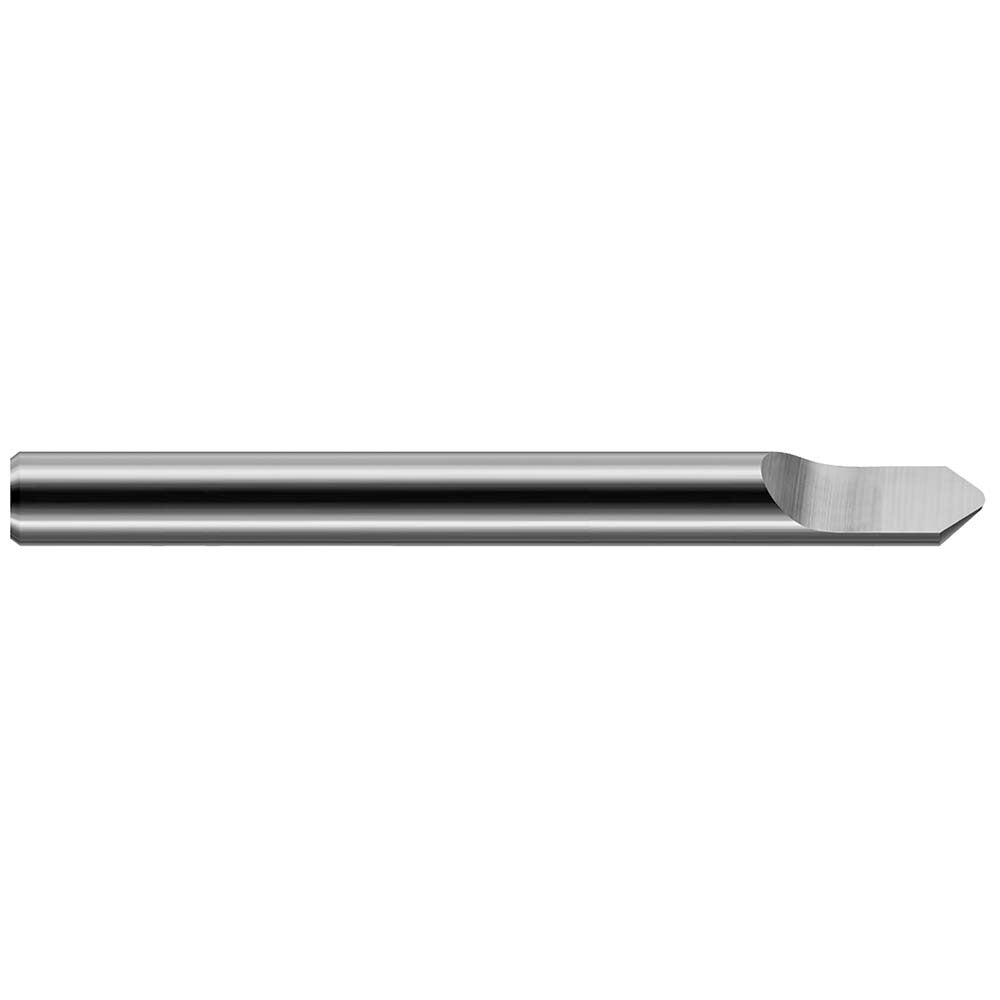

Harvey Tool 48410 Engraving Cutter 90 Degree 1/8 in Carbide

Product Description

The HARVEY TOOL 48410 is a solid carbide engraving cutter designed for precise marking, engraving, and detail cutting in metalworking applications. Built with a 90-degree included angle and a tip radius point geometry, this single-flute cutter produces clean, controlled lines in both ferrous and non-ferrous metals. The 1/8-inch cutter diameter and 1/8-inch shank keep the tool compact and rigid, while the bright uncoated solid carbide construction delivers the hardness and edge retention needed for consistent results. Licensed machinists, toolmakers, and CNC operators use this type of cutter for part marking, decorative engraving, and v-groove work on metal workpieces.

The HARVEY TOOL 48410 is suited for use on ferrous metals and non-ferrous metals in both shop and production environments. With a 0.06-inch length of cut and a 1-1/2-inch overall length, this cutter fits standard CNC machining centers and manual mills using a 1/8-inch collet or chuck. Its right-hand cutting direction is compatible with conventional spindle rotation on standard equipment. This tool is appropriate for light-duty engraving passes where depth control and fine detail are the primary requirements.

Key Features

• 90-degree included angle with tip radius point for precise v-groove and engraving geometry
• Solid carbide construction for superior hardness and edge retention over high-speed steel
• Bright uncoated finish suitable for use on both ferrous and non-ferrous metals
• Single-flute design promotes chip clearance in shallow engraving passes
• 1/8-inch shank fits standard collets and tool holders on CNC and manual mills
• Compact 1-1/2-inch overall length reduces overhang and improves rigidity

Compatibility

Designed for use on ferrous and non-ferrous metals. Fits any machine tool equipped with a 1/8-inch collet or end mill holder with right-hand spindle rotation.

Installation Notes

This cutter should be installed by a qualified machinist or CNC operator following standard tooling setup procedures. Ensure the machine spindle is fully powered down and locked out before loading or removing the tool. Seat the 1/8-inch shank fully into the collet or holder and torque to the equipment manufacturer's specification. Verify depth of cut and feed rate settings before running the first pass, as solid carbide tooling is brittle and susceptible to chipping under excessive lateral load or interrupted cuts.
