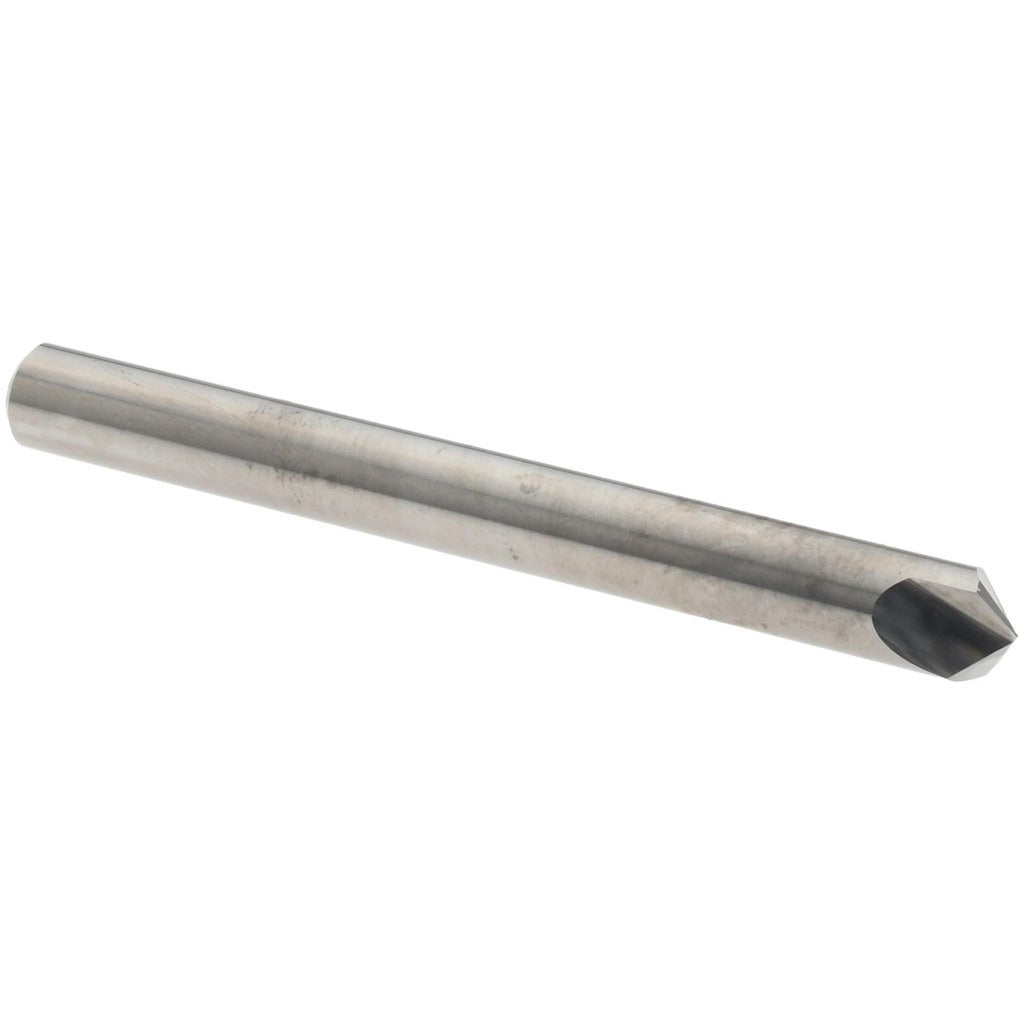

Harvey Tool 47660 Chamfer Mill 1/4 in 2 Flute Solid Carbide

Product Description

The HARVEY TOOL 47660 is a solid carbide chamfer mill designed for deburring, edge chamfering, and countersinking operations on a wide range of workpiece materials. With a 1/4 inch cutter head diameter, 2-flute geometry, and a bright uncoated finish, this single-end tool delivers clean, consistent chamfers in ferrous and non-ferrous metals, plastics, and composites. The right-hand cutting direction and solid carbide construction provide rigidity and edge retention in demanding machining environments. It accepts a standard 1/4 inch shank and measures 2.5 inches in overall length, making it well suited for use in CNC machining centers, milling machines, and manual knee mills.

The 47660 is used in precision machining applications where controlled edge preparation is required before assembly, threading, or cosmetic finishing. It is appropriate for job shops, production machining facilities, and toolrooms handling light to medium-duty chamfering work. The included angle range of 60 degrees and 120 degrees provides flexibility across multiple chamfer profile requirements. Machinists and CNC operators working in aerospace, automotive, and general metalworking will find this tool fits standard collet and end mill holders without modification.

Key Features

• Solid carbide construction for rigidity and extended tool life
• 1/4 inch cutter head diameter with a 1/4 inch shank for direct collet mounting
• 2-flute single-end geometry optimized for chamfering and deburring
• Included angles of 60 degrees and 120 degrees for versatile edge prep
• Bright uncoated finish compatible with a broad range of workpiece materials
• Right-hand cutting direction for use in standard spindle configurations

Compatibility

Designed as an OEM-style chamfer mill for use in standard 1/4 inch collets and end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully within a clean, undamaged collet or end mill holder to the recommended engagement depth before tightening. Inspect the cutting edges for chips or damage before mounting. Power down and lock out the spindle before changing tooling, following applicable machine-specific lockout/tagout procedures.
