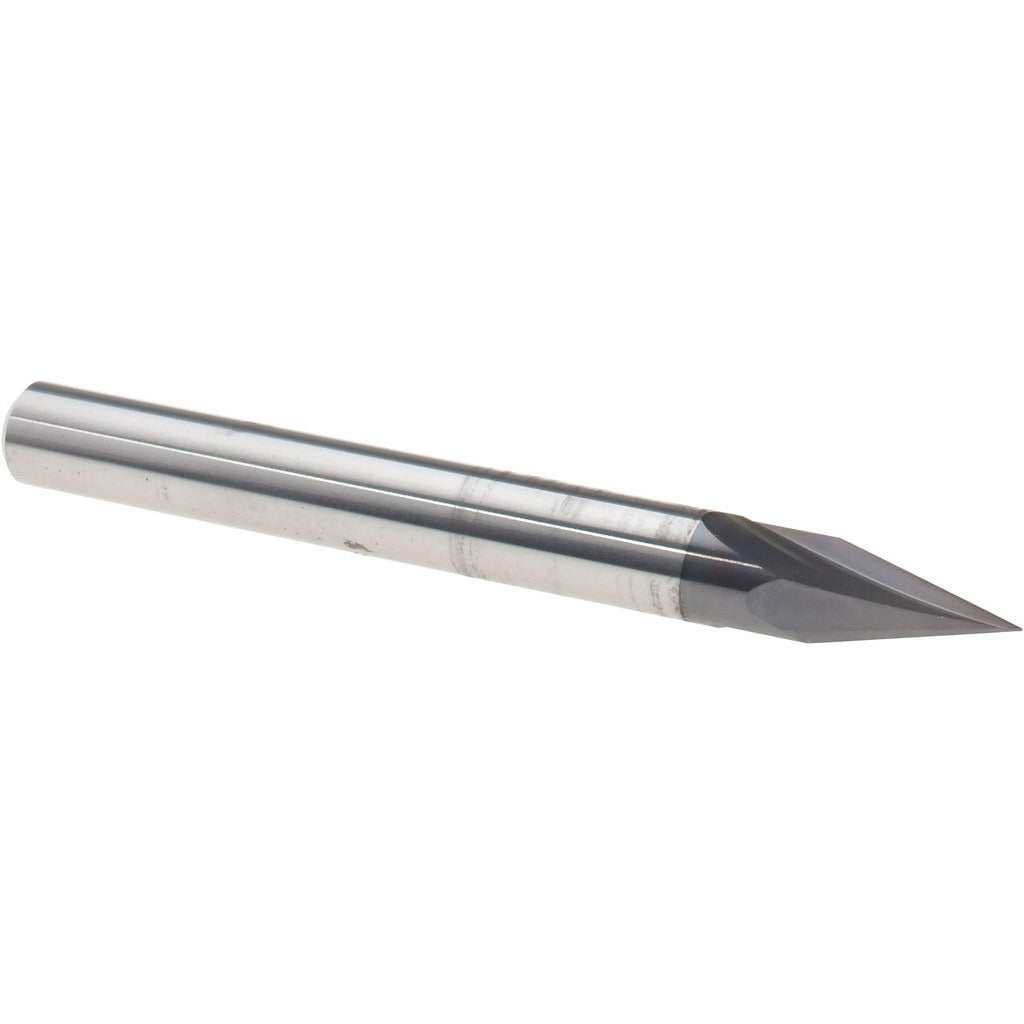

Harvey Tool 47615-C3 Chamfer Mill 1/4 in 2 Flute Carbide Altin

Product Description

The HARVEY TOOL 47615-C3 is a solid carbide chamfer mill designed for precision chamfering and deburring operations on a wide range of workpiece materials. With a 1/4 inch cutter head diameter, 2-flute single-end geometry, and a right-hand cutting direction, this tool delivers clean, consistent chamfer profiles in high-cycle production and job-shop environments alike. The AlTiN coating provides elevated hardness and oxidation resistance, extending tool life in ferrous and hardened materials. Overall length is 2-1/2 inches with a 1/4 inch shank diameter. Licensed machinists and CNC operators are the primary users of this tool.

This chamfer mill is suited for use in CNC machining centers and manual mills where edge preparation, chamfering, countersinking, and deburring are required. The 30 to 150 degree included angle range makes it appropriate for a broad set of chamfer geometries on steel, stainless, aluminum, and similar materials. It is packaged individually and well suited for both production runs and prototype work where edge quality and repeatability matter.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• AlTiN coating increases surface hardness and heat resistance for longer tool life
• 2-flute single-end geometry supports clean chip evacuation and smooth edge finishes
• Right-hand cutting direction compatible with standard CNC and manual mill spindle rotation
• 1/4 inch shank diameter fits standard collets and tool holders without adapters
• Included angle of 30 to 150 degrees accommodates a wide range of chamfer profiles

Compatibility

Designed as an OEM-style solid carbide chamfer mill for use in CNC machining centers and manual milling machines equipped with a 1/4 inch collet or end mill holder.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before loading or removing the tool from the holder. Secure the 1/4 inch shank fully into the collet or tool holder to the recommended engagement depth before tightening. Verify runout with a dial indicator after installation to confirm proper seating before beginning a cut.
