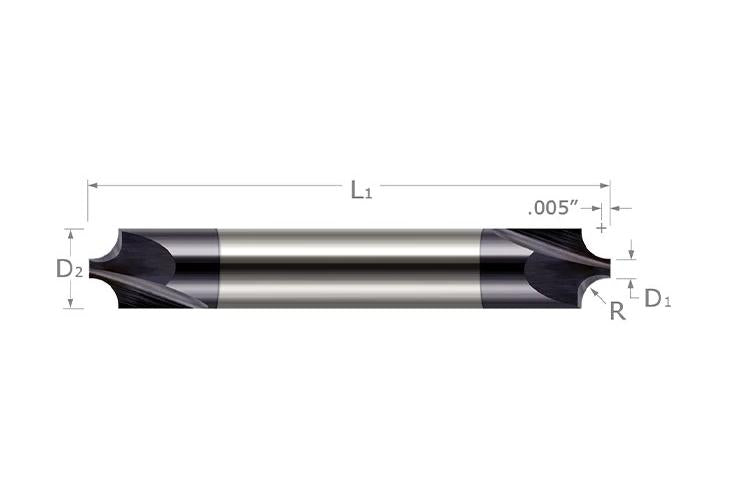

Harvey Tool 46100-C3 Corner Rounding End Mill, 1/4 in Dia Cutter, 2 in OAL, AlTiN

Product Description

The Harvey Tool 46100-C3 is a corner rounding end mill designed for precision milling. This end mill features a diameter of one fourth inch and an overall length of two inches. It is suitable for various applications, including non-ferrous metals, cast iron, and composites. This tool is made of solid carbide, coated with AlTiN for enhanced durability.

• Overall length: two inches
• Diameter: one fourth inch
• Double-ended design for extended tool life

Product Highlights

The Harvey Tool 46100-C3 provides reliable performance for rounding corners with accuracy. Its solid carbide construction and AlTiN coating make it ideal for high-performance milling operations.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 46100-C3

Technical Specifications

• Material: Carbide
• Coating: AlTiN
• Diameter: 0.2500 inches (6.350 mm) (1/4)
• Shank Diameter: 0.2500 inches (6.350 mm) (1/4)
• Overall Length: 2.0000 inches (50.800 mm) (2)
• Radius: 0.1000 inches
• Flutes: 2
• Tip Diameter: 0.0470 inches
• Double Ended: Yes
