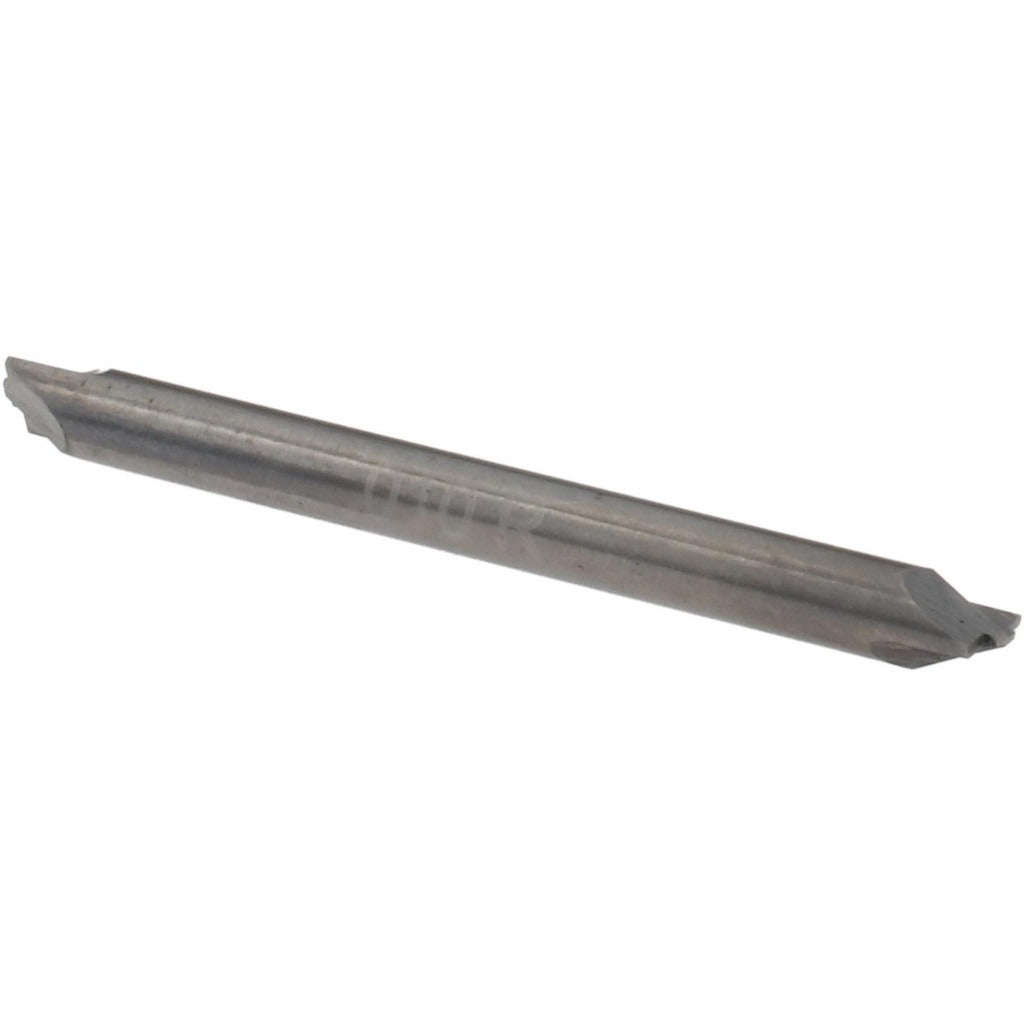

Harvey Tool 46010 Corner Rounding End Mill 1/8 in 2 Flute

Product Description

The HARVEY TOOL 46010 is a double-end corner rounding end mill designed to produce consistent edge radii on machined parts. It features a 0.01 mm (0.0100 inch) corner radius and a 1/8 inch mill diameter with two flutes, ground from solid carbide for rigidity and wear resistance in demanding cutting applications. The bright, uncoated finish makes it suitable for a range of work materials where coating interaction is a concern. Machinists and CNC operators install this tool in milling centers for edge-breaking, radius blending, and cosmetic finishing passes on precision components.

This end mill is suited for light-duty corner rounding operations in tool rooms, job shops, and production machining environments. The double-end configuration extends usable tool life by providing two cutting ends per shank. The 1/8 inch shank diameter is compatible with standard collet chucks and end mill holders found on vertical machining centers and CNC routers. It is typically used on aluminum, plastics, non-ferrous metals, and certain ferrous materials where a fine edge radius is required without a secondary deburring operation.

Key Features

• 0.01 mm (0.0100 inch) corner radius for fine, precise edge blending
• Solid carbide construction for stiffness and extended cutting life
• Double-end design provides two usable cutting ends per tool
• Bright, uncoated finish — no coating buildup risk on sensitive materials
• 2-flute geometry for efficient chip evacuation in finishing passes
• 3/64 inch (0.0470 inch) tip diameter for access in tight geometries

Compatibility

Designed as an OEM-style replacement corner rounding end mill for use in standard 1/8 inch collet chucks and end mill holders on vertical machining centers and CNC milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the spindle before loading or removing any end mill. Seat the shank fully in the collet or holder to the recommended gauge-line depth before torquing the nut — refer to the collet manufacturer specifications for proper clamping torque. Inspect the cutting edges and shank for damage before each use; solid carbide tools are brittle and should never be used if chipped or cracked.
