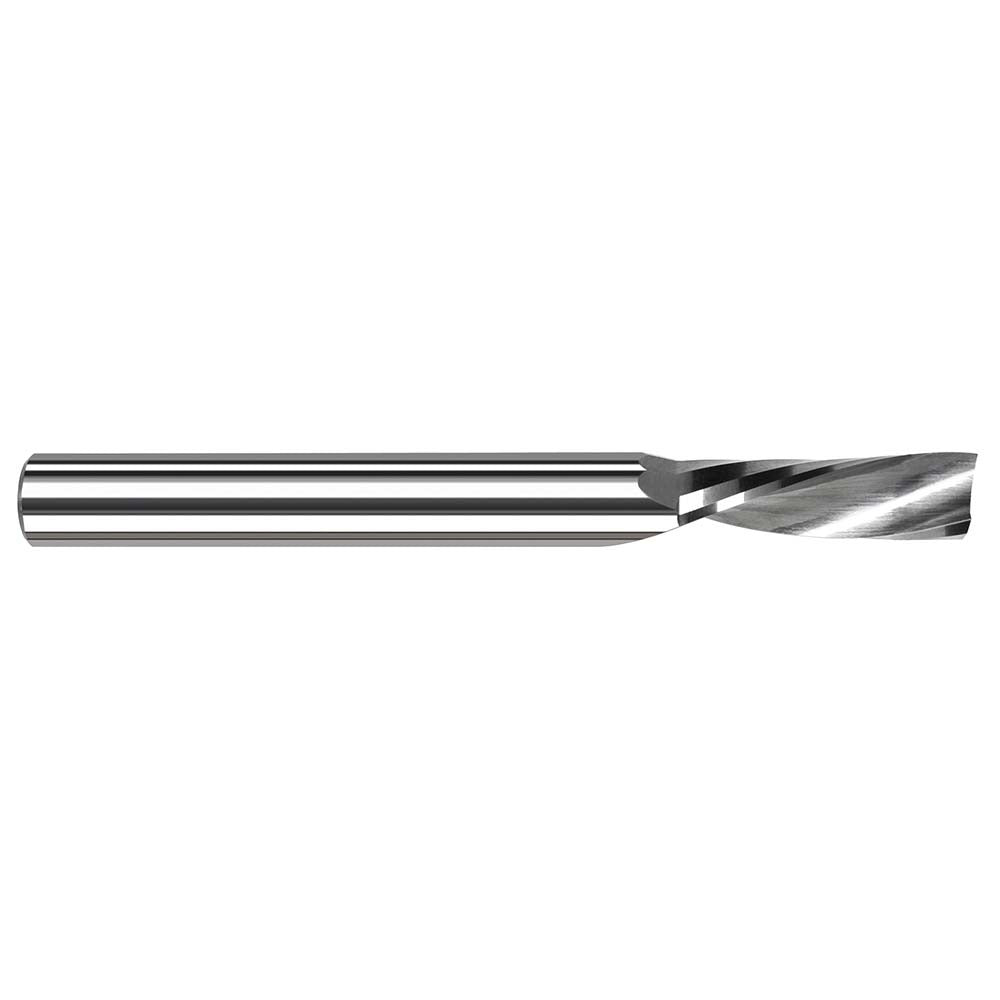

Harvey Tool 44932 Square End Mill 1/2 in 1 Flute Carbide

Product Description

The HARVEY TOOL 44932 is a single-flute, solid carbide square end mill designed for precision milling operations. With a 1/2 inch cutter diameter and a 1-1/2 inch length of cut, this tool handles slotting, profiling, and pocketing in a range of materials. The downcut flute geometry directs chips upward, reducing surface tearout and improving finish quality on the workpiece face. A 22-degree helix angle supports smooth chip evacuation. The bright, uncoated finish suits applications where coating compatibility or re-sharpening is a priority. Machinists and tooling professionals select this geometry when a single-flute, full-diameter carbide tool is needed for controlled chip load and reduced tool pressure.

This end mill is suited for CNC milling centers and manual mills in job shop, production, and toolroom environments. The downcut configuration makes it a practical choice for machining laminates, composites, wood-based materials, and non-ferrous metals where top-surface finish is critical. The 1/2 inch shank diameter fits standard ER and straight-bore collet systems. Single-flute geometry allows higher feed rates per tooth in softer materials without chip packing, which is a common concern in deep-slot operations.

Key Features

• Single-flute downcut geometry reduces surface tearout and improves face finish quality
• Solid carbide construction provides rigidity and wear resistance over high-speed tool steel alternatives
• 1-1/2 inch length of cut supports slotting and profiling operations at depth
• 22-degree helix angle promotes smooth chip flow and reduced cutting force
• Bright, uncoated finish allows direct use in materials sensitive to coating adhesion or permits re-grinding
• Single-end configuration with 1/2 inch shank fits standard collet toolholders

Compatibility

Designed as a direct-fit replacement or standard tooling selection for CNC and manual milling machines accepting a 1/2 inch straight shank. Compatible with ER collet systems, shrink-fit holders, and straight-bore toolholders sized for 1/2 inch shank diameter.

Installation Notes

Installation and tool changes must be performed by a qualified machinist with the spindle fully stopped and machine power locked out per shop safety procedures. Ensure the collet or toolholder bore is clean and free of debris before seating the shank. Torque the collet nut to the toolholder specification and verify tool runout with a dial indicator before beginning a cut. Do not exceed the depth of cut beyond the stated 1-1/2 inch length of cut, as engagement beyond the fluted section risks tool deflection and breakage.
