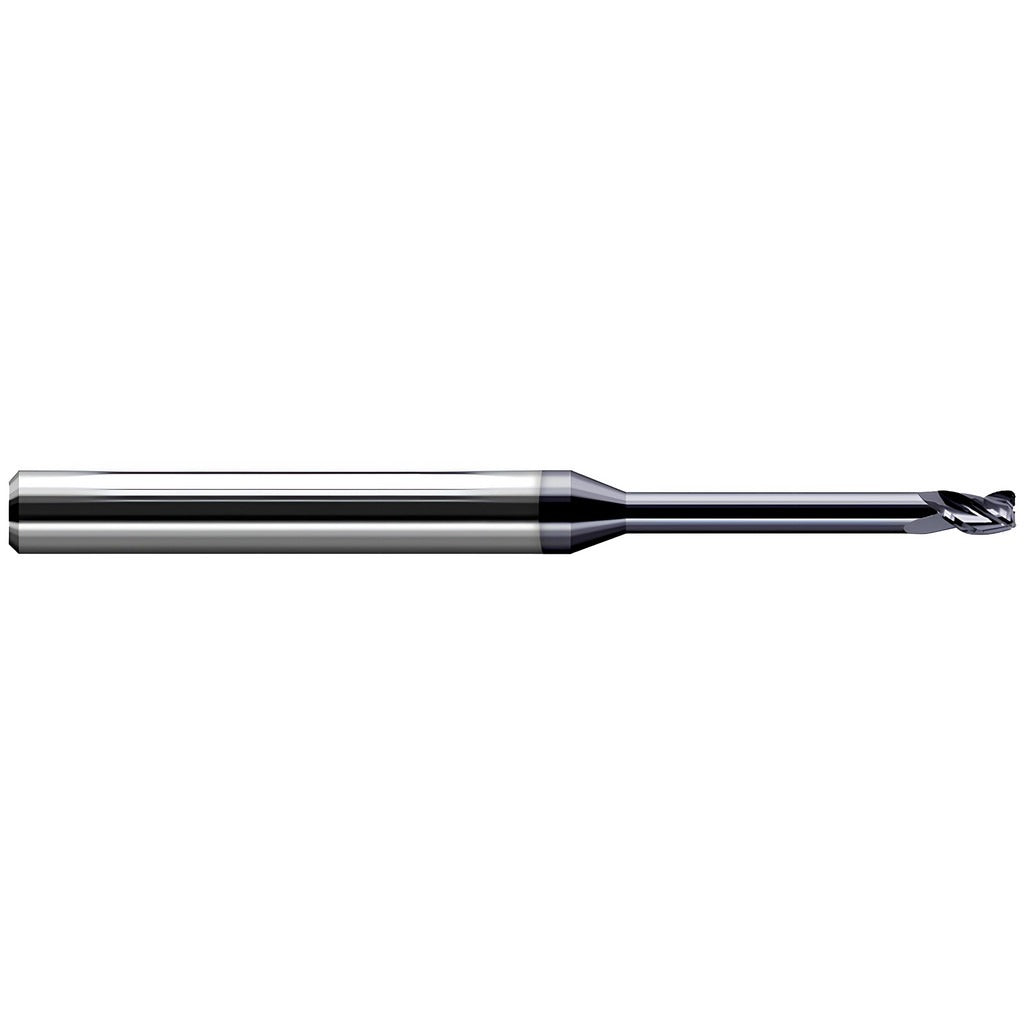

Harvey Tool 41608-C3 Corner Radius End Mill 1/8 in 3 Flute

Product Description

The HARVEY TOOL 41608-C3 is a solid carbide corner radius end mill designed for precision milling in demanding materials including steel, stainless steel, cast iron, and non-ferrous metals. Built on the Miniature End Mills Long Reach Stub Flute series, it features a 1/8 inch mill diameter with a 0.01 inch corner radius and three flutes for a balance of chip evacuation and surface finish. The extended reach geometry and stub flute configuration make it well suited for deep-pocket work and tight-clearance applications where a standard-length end mill cannot reach. The AlTiN PVD coating provides oxidation resistance and extended tool life at elevated cutting temperatures.

This end mill is used in CNC machining centers and manual mills for finish and roughing passes on ferrous and non-ferrous workpieces. The long reach design with a 5/8 inch reach length and 3/16 inch length of cut is a common fit for mold and die work, aerospace components, and precision part manufacturing where corner radii control is critical. Right-hand flute direction and right-hand cutting orientation are standard for conventional CNC spindle setups. The centercutting capability supports direct plunge entry where required by the program.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN PVD coating extends tool life during high-temperature cuts in steel and stainless steel
• 0.01 inch corner radius with a tight tolerance of plus or minus 0.001 inches
• Extended reach with 5/8 inch reach length enables deep-pocket and hard-to-access milling
• Centercutting design supports plunge milling without a pre-drilled entry hole
• Three-flute geometry balances chip clearance and finish quality on both roughing and finishing passes

Compatibility

Designed for use with standard CNC toolholders accepting a 1/8 inch straight cylindrical shank. Compatible with toolholders rated for miniature end mill diameters in this shank class.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and machine in an e-stop or powered-down state. Use a toolholder appropriate for a 1/8 inch straight shank and verify runout with a dial indicator before cutting to protect tool life and part tolerance. Avoid side-loading this reach length beyond recommended radial depth-of-cut parameters for the workpiece material. Consult the cutting data provided by HARVEY TOOL for feed and speed recommendations specific to this series and coating.
