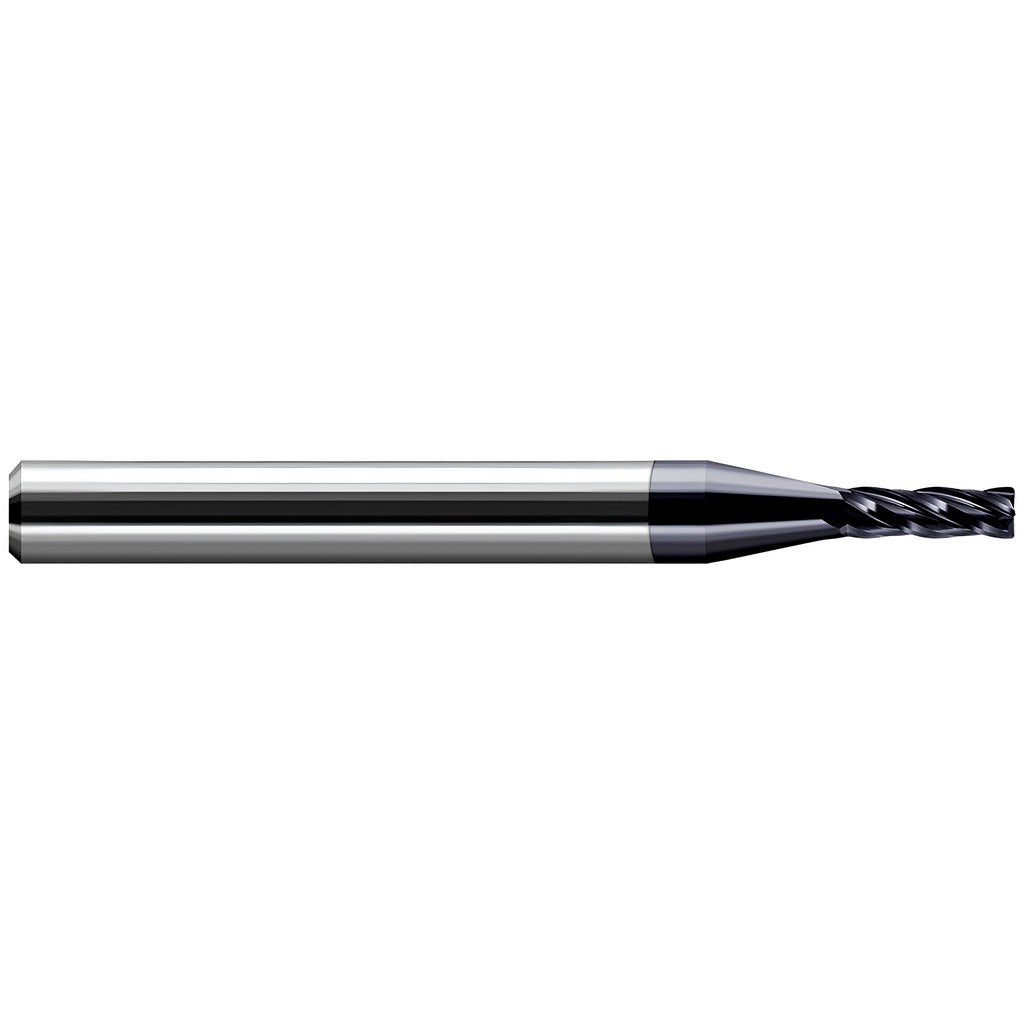

Harvey Tool 32410 Corner Radius End Mill 1/8 in 4 Flute

Product Description

The HARVEY TOOL 32410 is a solid carbide corner radius end mill designed for precision milling in metalworking and machining applications. Built with a 0.1250-inch mill diameter, a 0.0100-inch corner radius, and four right-hand spiral flutes, this tool delivers clean edge finishes and reduced corner chipping on ferrous and non-ferrous workpieces. The bright uncoated finish makes it well-suited for applications where coating-related dimensional buildup is a concern. With a 30-degree helix angle and centercutting geometry, this end mill handles both roughing and finishing passes. Licensed machinists and CNC operators in job shops, tool rooms, and manufacturing facilities are the primary users of this tool.

The 32410 is intended for use in milling steel, stainless steel, cast iron, aluminum, non-ferrous metals, wood, and composite materials. The stub-to-standard length profile and 0.5000-inch length of cut make it particularly useful for shallow-pocket milling, profile contouring, and edge-breaking operations on small-footprint parts. The straight cylindrical shank is compatible with standard collet-style toolholders and milling chucks.

Key Features

• 0.0100-inch corner radius reduces stress concentration and chipping at milled edges
• Four-flute, right-hand spiral geometry supports both roughing and finishing in a single tool
• Centercutting design allows plunge entry without a pre-drilled pilot hole
• Solid carbide construction provides rigidity and wear resistance in hard materials
• Bright uncoated finish is suitable for aluminum and non-ferrous applications where coating adhesion is undesirable
• Normal pitch with no variable helix or chipbreaker for predictable, stable cutting action

Compatibility

Designed for use with standard collet-style toolholders and milling chucks accepting a 0.1250-inch straight cylindrical shank. Part of the Harvey Tool Miniature End Mills Corner Radius Stub and Standard series.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine spindle fully stopped and locked out per shop safety procedures. Ensure the toolholder collet bore is clean and free of chips before seating the shank. Confirm runout with a dial indicator before engaging the cut to prevent premature tool wear or breakage. Follow the machine manufacturer and toolholder torque specifications when tightening the collet nut.
