Harvey Tool 31620 HAR R.020 3/16x4 2F D/E LONG CARB CORNER RD MILL .046 TIP

Product Description

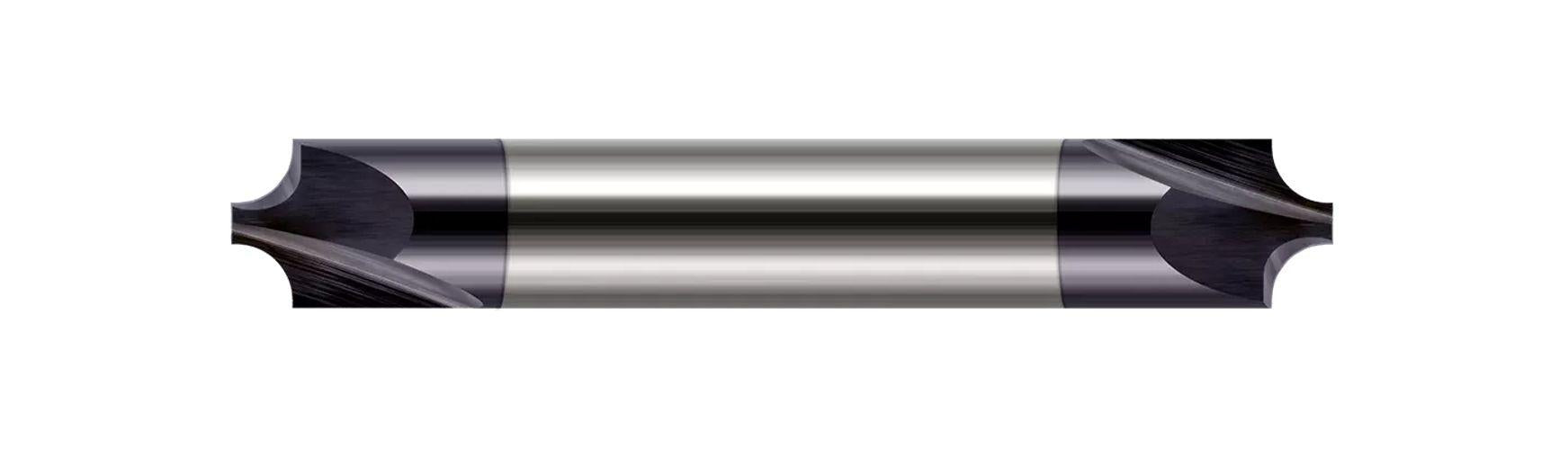

The Harvey Tool 31620 is a precision corner rounding end mill designed for milling applications. This tool is made from solid carbide and features a double-ended design that enhances overall durability. It has a cutting diameter of three-sixteenths inches and an overall length of four inches, making it suitable for various milling tasks.

• Material: Solid Carbide
• Flutes: 2
• Tip Diameter: 0.0460 inches

Product Highlights

The Harvey Tool 31620 is ideal for corner rounding and is effective on multiple materials, including aluminum and stainless steel. The uncoated finish provides better control during milling operations.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 31620

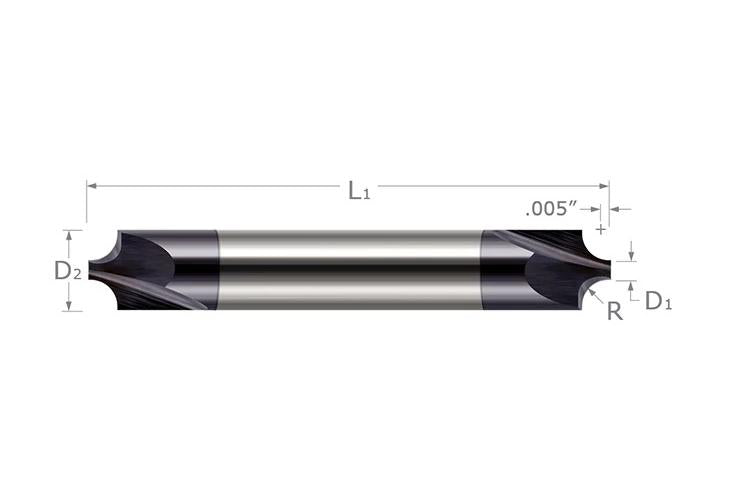

Technical Specifications

• Diameter: 0.1875 inches (3/16 inches)
• Shank Diameter: 0.1875 inches (3/16 inches)
• Overall Length: 4.0000 inches
• Radius: 0.0200 inches
• Flutes: 2
• Double Ended: Yes
• Tip Diameter: 0.0460 inches
