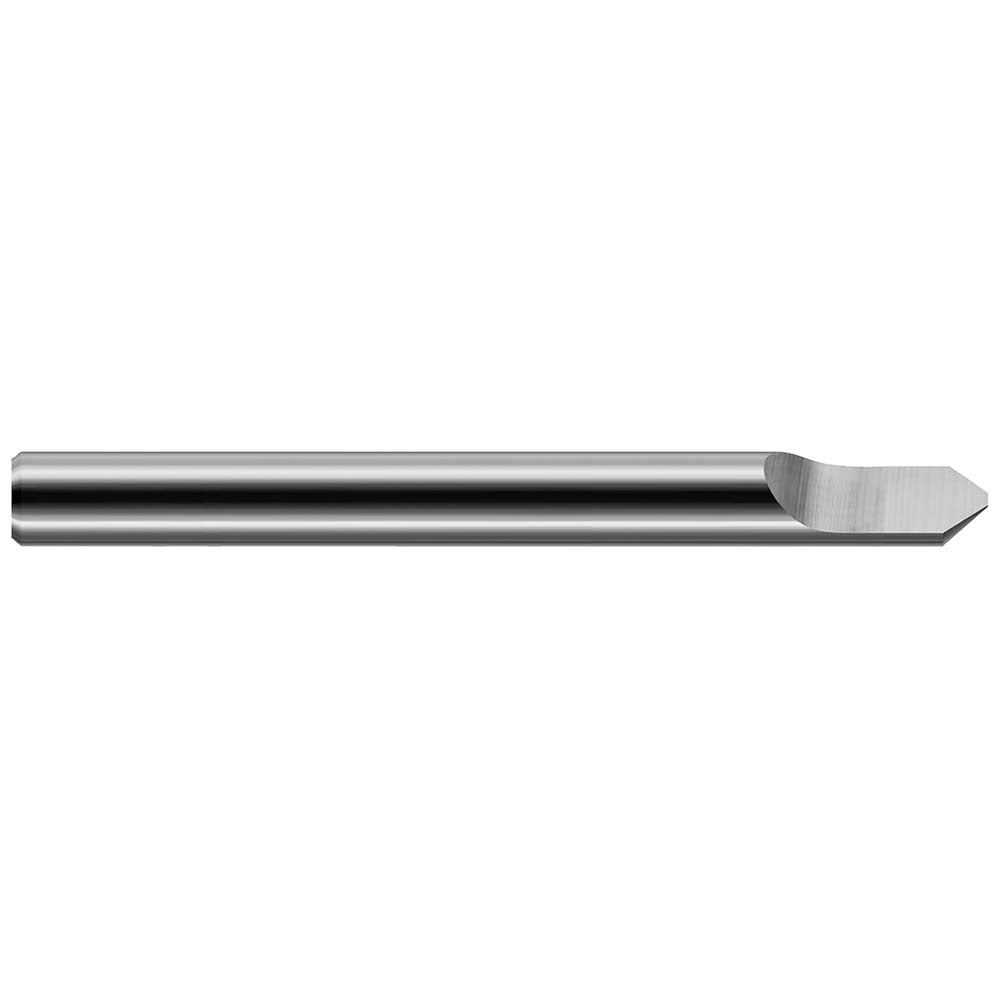

Harvey Tool 30210 Engraving Cutter 60 Degree 1/8 Inches

Product Description

The HARVEY TOOL 30210 is a solid carbide engraving cutter designed for precision marking, lettering, and detail engraving on flat and contoured workpiece surfaces. It features a 60-degree included angle with a tipped-off point geometry and a 0.01-inch tip diameter, which allows controlled line width and consistent engraved depth. The 1/8-inch shank fits standard collet toolholders used in CNC machining centers and engraving machines. With a single flute and bright uncoated finish, this cutter is built for clean chip evacuation in demanding engraving applications. It is installed and operated by machinists and CNC programmers working in precision fabrication, tool and die, and general metalworking environments.

This engraving cutter is suited for use on ferrous and non-ferrous metals including steel, aluminum, copper, and brass. The tipped-off point prevents the zero-diameter condition found on standard V-point engravers, allowing the operator to set a defined minimum line width without breakthrough. The 0.099-inch length of cut and 1-1/2-inch overall length make this tool appropriate for shallow engraving passes in production and prototype work. It is a single-piece, single-use quantity item packaged individually.

Key Features

• 60-degree included angle for standard V-groove and engraving profiles
• Tipped-off point geometry with 0.01-inch tip diameter for defined minimum line width
• Solid carbide construction for rigidity and wear resistance in metal engraving
• Bright uncoated finish compatible with ferrous and non-ferrous metal applications
• Single-flute design promotes chip clearance in shallow, fine-detail passes
• 1/8-inch shank fits standard collets on CNC routers, machining centers, and engravers

Compatibility

Designed for use on ferrous metals and non-ferrous metals. Fits toolholders and collets accepting a 1/8-inch shank diameter.

Installation Notes

Install into a collet or toolholder rated for the 1/8-inch shank diameter and confirm runout is within acceptable limits before cutting. Power down the spindle completely before tool changes. Set depth of cut carefully using the tipped-off geometry as a reference for minimum line width. This tool should be handled and set up by a qualified machinist or CNC operator familiar with engraving tool parameters.
