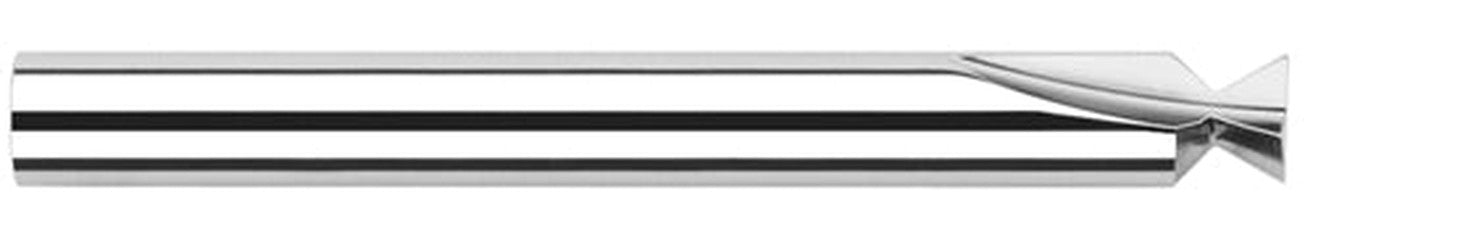

Harvey Tool 28532 1/2 40deg Dovetail Cutter Carbide

Product Description

The Harvey Tool 28532 is a 1/2 inch, 40-degree dovetail cutter made from carbide. This cutter is designed for precise milling and is suitable for various machining tasks. It features a cutting diameter of 0.5000 inches and a shank diameter of the same size, ensuring stability during operation.

• Material: Carbide
• Overall Length: 3.0000 inches
• Flutes: 3

Product Highlights

This cutter is ideal for creating dovetail joints and can be used in CNC machines for efficiency. The uncoated surface allows for flexibility in various applications.

Product Information

Standard Information

• Brand: Harvey Tool
• Part #: 1-420-28532

Technical Specifications

• Coating: Uncoated
• Diameter: 0.5000 inches (12.700 mm)
• Shank Diameter: 0.5000 inches (12.700 mm)
• Overall Length: 3.0000 inches (76.200 mm)
• Corner Radius: 0.0100 inches
• Flutes: 3
• Cut Length: 0.3120 inches
• Angle: 20 degrees
• Neck Diameter: 0.2810 inches
