Harvey Tool 27016 Dovetail Cutter 1/4 in Dia Cutter 0.312 in W Cutting 1/4 in Dia Shank Cylindrical Shank 10 deg Included Angle

Product Description

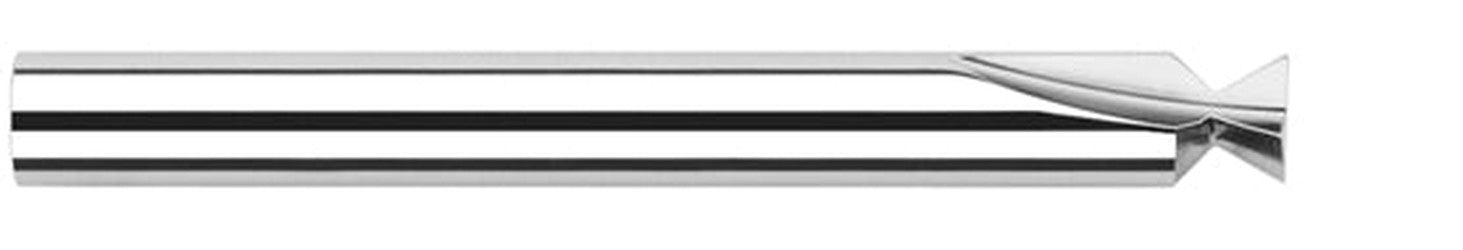

The Harvey Tool 27016 is a carbide dovetail cutter with a diameter of one quarter inch and an overall length of two inches. Designed for precision cutting, this cutter features a corner radius of point zero one inches and two flutes for efficient material removal.

• Diameter: 0.2500 inches
• Overall Length: 2.0000 inches
• Flutes: 2

Product Highlights

Efficient for various milling applications, the Harvey Tool 27016 is suitable for cutting aluminum, steel, stainless steel, wood, and composites.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Carbide
• Coating: Uncoated
• Cut Length: 0.3120 inches
• Included Angle: 10 degrees
• Neck Diameter: 0.1970 inches

Technical Specifications

• Diameter: 0.2500 inches (6.350 mm)
• Shank Diameter: 0.2500 inches (6.350 mm)
• Flutes: 2
• Overall Length: 2.0000 inches (50.800 mm)
• Corner Radius: 0.0100 inches
• Cutting Width: 0.312 inches
