Harvey Tool 27012 Dovetail Cutter 3/16 in Dia Cutter

Product Description

The Harvey Tool 27012 is a carbide dovetail cutter measuring 3/16 inches in diameter. This tool is designed with a ten-degree included angle and a cutting width of one-quarter inch. It is suitable for machining various materials such as aluminum, stainless steel, and wood.

• Material: Solid Carbide
• Flute Count: 2
• Overall Length: 2 inches

Product Highlights

This cutter provides precision milling capabilities and features a corner radius of ten-thousandths. It is ideal for creating dovetail joints in woodworking and metalworking applications.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 27012

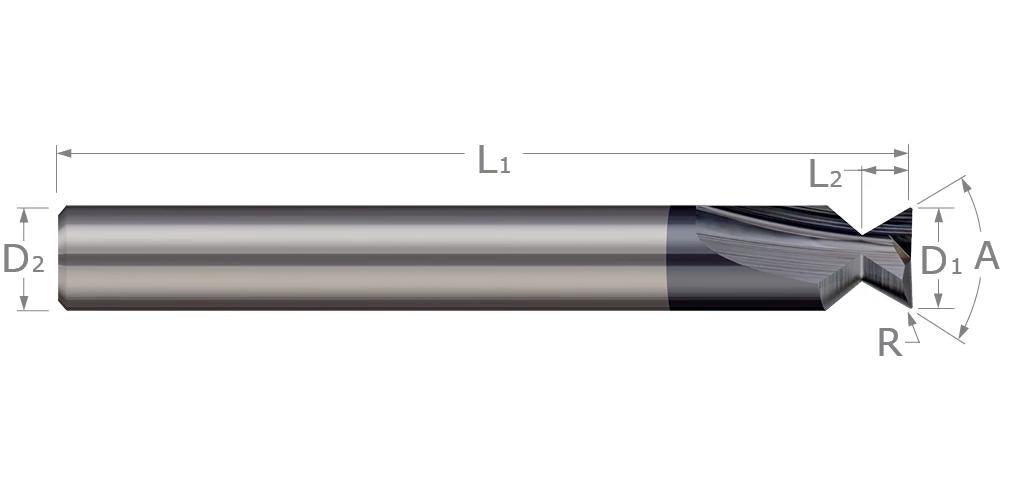

Technical Specifications

• Diameter: 0.1875 inches
• Shank Diameter: 0.1875 inches
• Overall Length: 2.0000 inches
• Corner Radius: 0.0100 inches
• Cut Length: 0.2500 inches
• Neck Diameter: 0.1460 inches
• Included Angle: 10 degrees
• Finish: Uncoated
