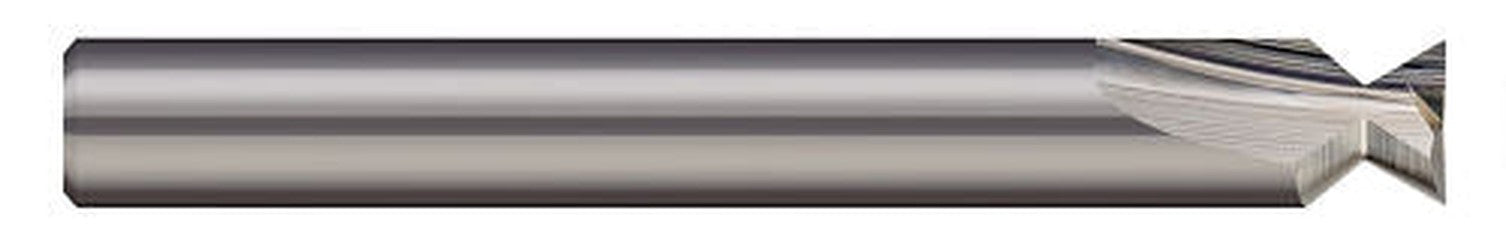

Harvey Tool 23935 HAR .231x.238 R.062 48DEG D/T CUTTER FOR .275 O-RING 1/4x2

Product Description

The Harvey Tool 23935 is a carbide dovetail cutter designed for precision milling. It features a diameter of 0.2310 inches and a cutting width of 0.2380 inches, with an overall length of 2 inches. This tool has a cylindrical shank diameter of 1/4 inches and is suitable for milling dovetails without drop hole allowance.

• High-quality carbide material
• Two flutes for enhanced cutting efficiency
• 48-degree included angle for optimal performance

Product Highlights

This cutter is ideal for applications requiring clean and accurate dovetail cuts in various materials.

Product Information

Standard Information

• Brand: Harvey Tool
• MPN: 23935

Technical Specifications

• Diameter: 0.2310 inches
• Shank Diameter: 0.2500 inches (1/4)
• Overall Length: 2.0000 inches
• No. of Teeth: 2
• Corner Radius: 0.0620 inches
• Flutes: 2
• Double Ended: Yes
• Angle: 48 degrees
• Neck Diameter: 0.0860 inches
• Profile: Dovetail
