Harvey Tool 23928-C3 O-Ring Dovetail Cutter 0.1710 in Diameter

Product Description

The Harvey Tool O-Ring Dovetail Cutter with MPN 23928-C3 is designed for precise milling applications. This cutter features a diameter of zero point one seven one zero inches and a cutting width of zero point one seven six inches. The overall length is two inches, and it has a shank diameter of three sixteenths of an inch.

• Contains two flutes for effective cutting.
• Suitable for non-ferrous metal, cast iron, steel, stainless steel, and composites.
• Corner radius of zero point zero three one zero inches.

Product Highlights

This dovetail cutter is ideal for creating half dovetails or full dovetails without a drop hole allowance. The solid carbide construction offers durability and efficiency in various materials.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

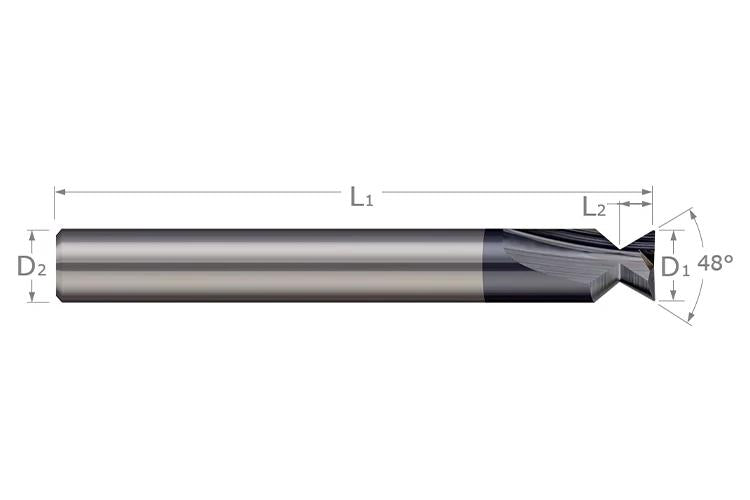

Technical Specifications

• MPN: 23928-C3
• Diameter: 0.1710 inches
• Cutting Width: 0.1760 inches
• Overall Length: 2 inches
• Shank Diameter: 3/16 inches
• Number of Teeth: 2
• Flutes: 2
• Included Angle: 48 degrees
