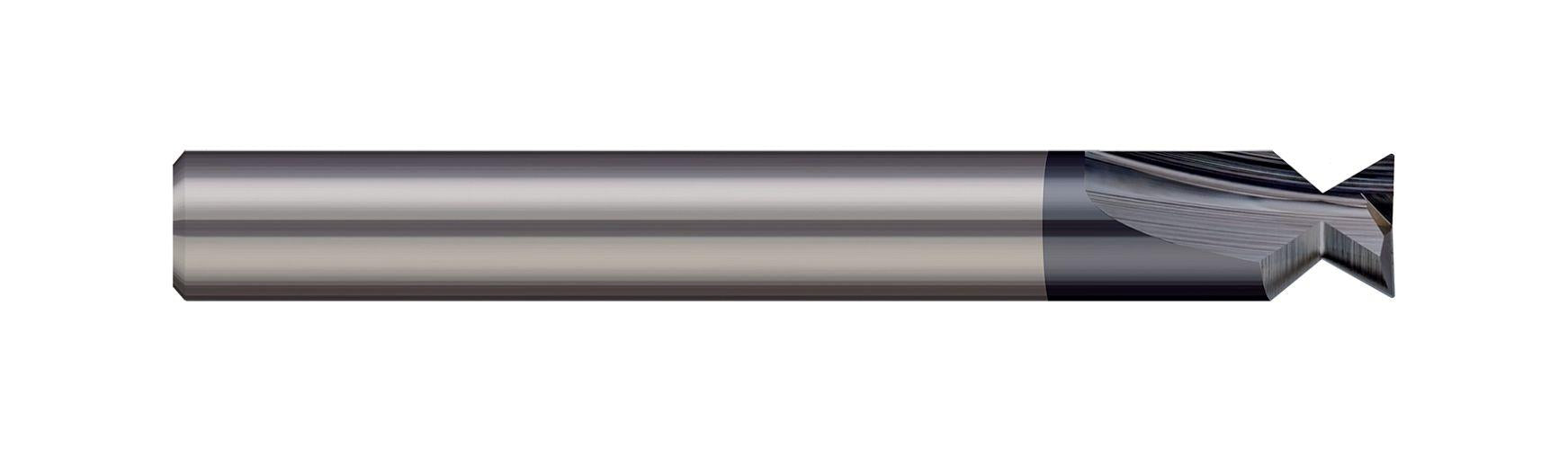

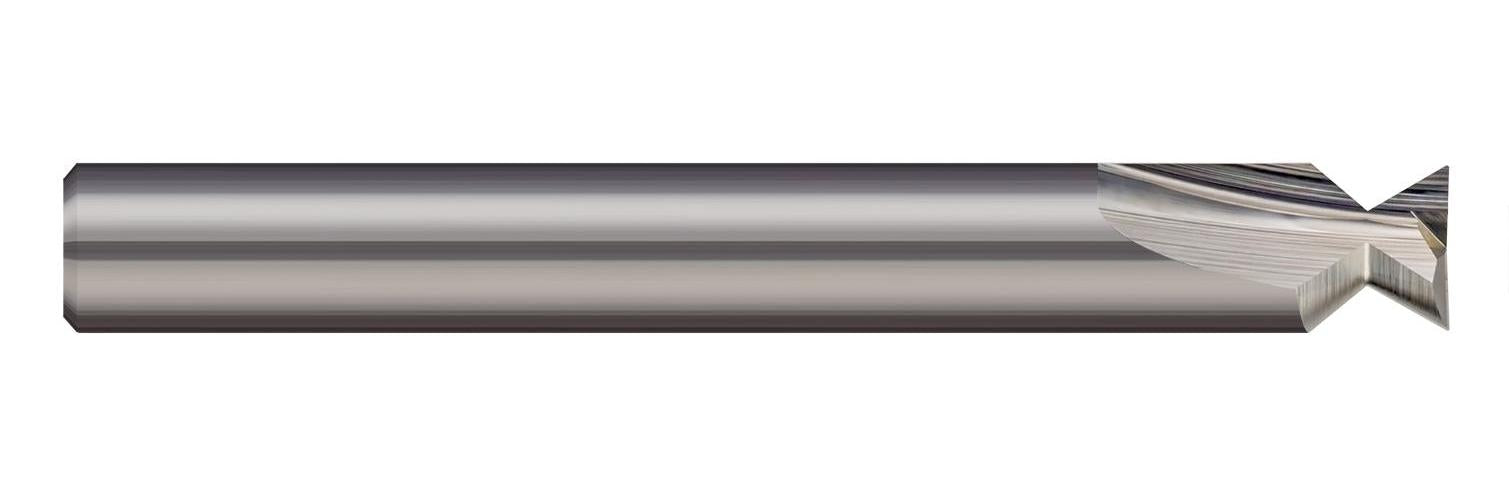

Harvey Tool 23921 HAR .113 DIA 48DEG CARB DOVETAIL CUTTER 1/8x1.1/2

Product Description

The Harvey Tool 23921 is a carbide dovetail cutter designed for precision milling applications. This cutter features a diameter of zero point one one three inches with an included angle of forty-eight degrees, making it suitable for creating half and full dovetails. Constructed from solid carbide, it provides durability and is uncoated for versatility.

• Diameter: 0.1130 inches
• Overall Length: 1.5000 inches
• Shank Diameter: 1/8 inches

Product Highlights

This cutter excels in milling applications, especially where drop holes are not required. It is designed to create clean dovetail profiles which are essential in various woodworking and metalworking tasks.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Carbide

Technical Specifications

• Flutes: 2
• Corner Radius: 0.0310 inches
• Neck Diameter: 0.0440 inches
• No. Teeth: 2
• Profile: Dovetail
