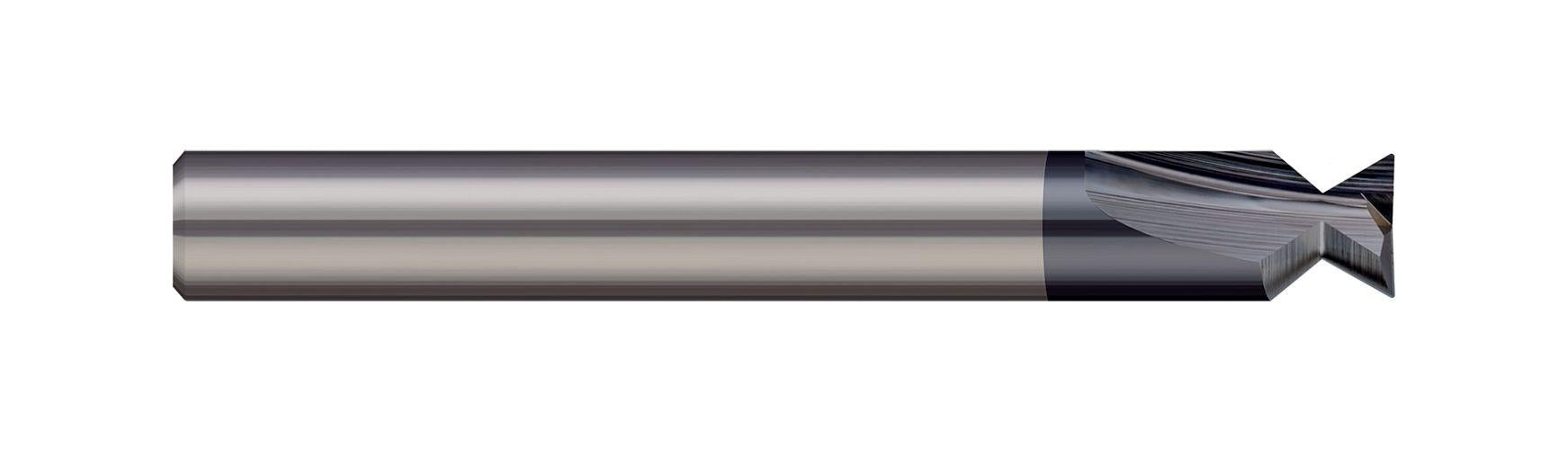

Harvey Tool 23835-C3 O-Ring Dovetail Cutter 0.3620 in Diameter 3/8 in Shank 48 deg Angle

Product Description

The Harvey Tool 23835-C3 O-Ring Dovetail Cutter features a cutting diameter of zero point three six two zero inches and a shank diameter of three eighths inches. This solid carbide cutter is designed for milling full dovetail grooves with a drop hole allowance. It includes a two flute design with a forty-eight degree included angle, making it suitable for both top and bottom radii milling.

• Cutter diameter of zero point three six two zero inches
• Two flutes and a corner radius of zero point zero six two zero inches
• Overall length measures two and a half inches

Product Highlights

This dovetail cutter is ideal for machining non-ferrous metals, cast iron, steel, stainless steel, and composites. The undersized cutter design allows for climb milling on both faces of the groove, improving the finish of your workpiece.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

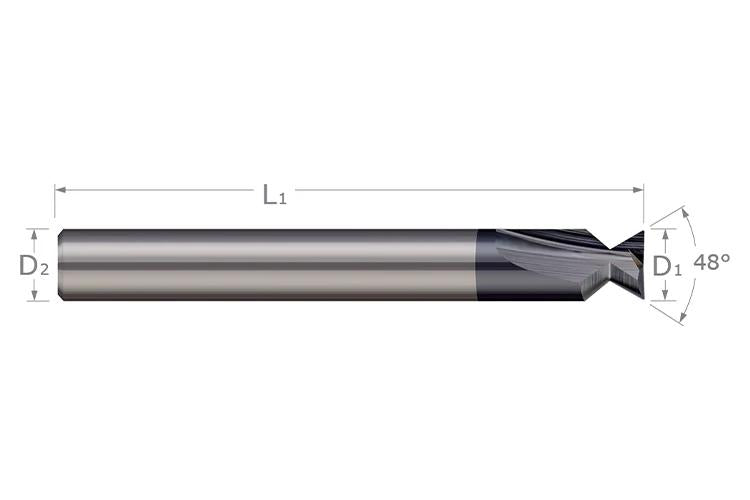

Technical Specifications

• Cutting Diameter: zero point three six two zero inches
• Shank Diameter: three eighths inches
• Overall Length: two and a half inches
• Included Angle: forty-eight degrees
• Number of Teeth: two
• Corner Radius: zero point zero six two zero inches
• Neck Diameter: zero point two three seven zero inches
• Flutes: two
