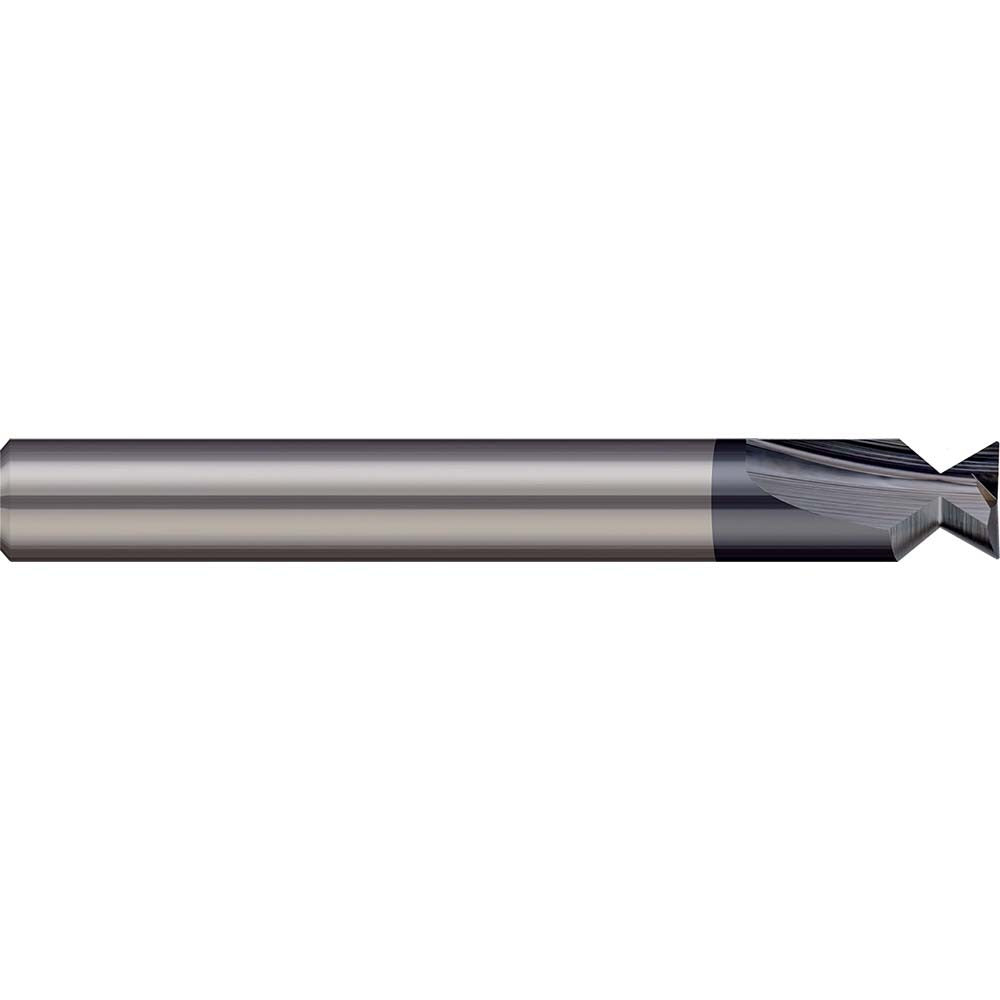

Harvey Tool 23828-C3 Dovetail Cutter 48 Deg 0.284 in Carbide

Product Description

The HARVEY TOOL 23828-C3 is a solid carbide dovetail cutter designed for precision undercut milling operations in metalworking and machining applications. Built with a 48-degree included angle and a 0.284-inch cut diameter, it produces accurate dovetail profiles in a single pass. The 0.158-inch cutting width and 0.031-inch corner radius control chip load and surface finish in tight-tolerance slots and features. A Titanium Aluminum Nitride (TiAlN) coating increases surface hardness and heat resistance, extending tool life in ferrous and hardened materials. Machinists and CNC operators install this cutter on vertical machining centers and manual mills where dovetail slides, fixtures, and T-slot profiles require consistent geometry.

This dovetail cutter fits standard milling setups using a 5/16-inch shank diameter, making it compatible with common collet systems found on CNC machining centers and manual knee mills. It is suited for dovetail slot production in steel, aluminum, cast iron, and similar materials where a TiAlN-coated carbide tool is appropriate. With only 2 cutting teeth, it is well-matched to applications requiring controlled chip evacuation in narrow, undercut profiles. Typical uses include fixture plates, machine ways, dovetail slides, and precision mechanical assemblies requiring repeatable undercut geometry.

Key Features

• 48-degree included angle for standard dovetail profile cutting
• 0.284-inch cut diameter with 0.158-inch cutting width for narrow slot work
• Solid carbide construction for rigidity and dimensional accuracy
• TiAlN coating increases heat resistance and extends tool life in ferrous materials
• 0.031-inch corner radius reduces stress concentration at slot roots
• 2-flute geometry promotes chip clearance in confined undercut profiles

Compatibility

Designed for use in standard 5/16-inch collet or end mill holders on CNC machining centers and manual mills. Compatible with collet systems that accept a 5/16-inch shank diameter.

Installation Notes
