Product Description

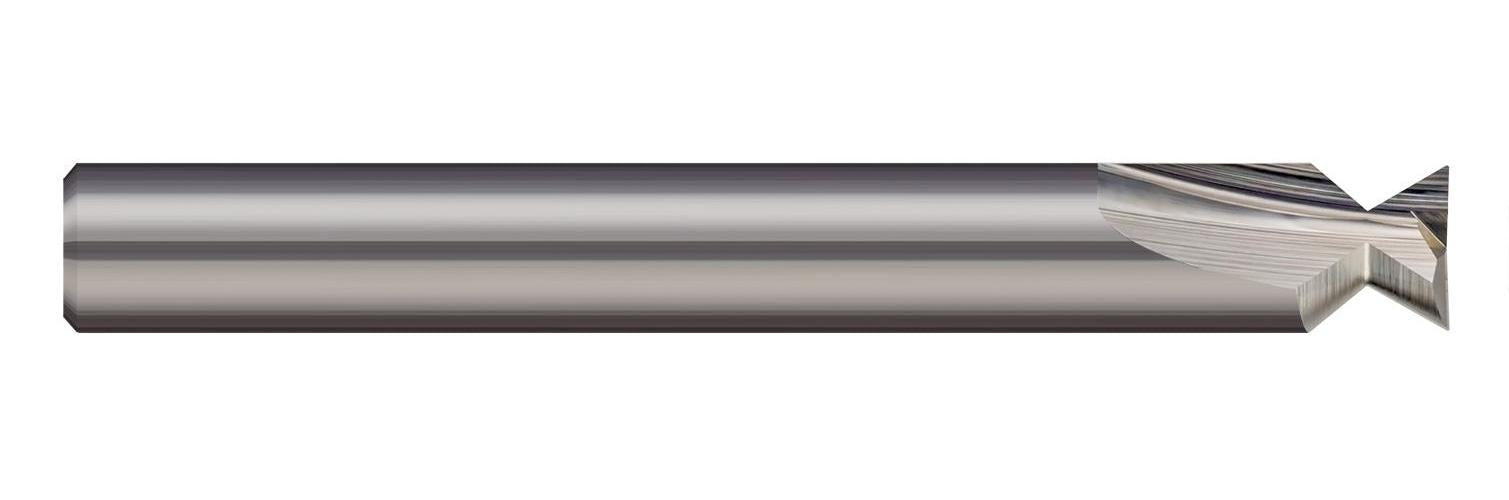

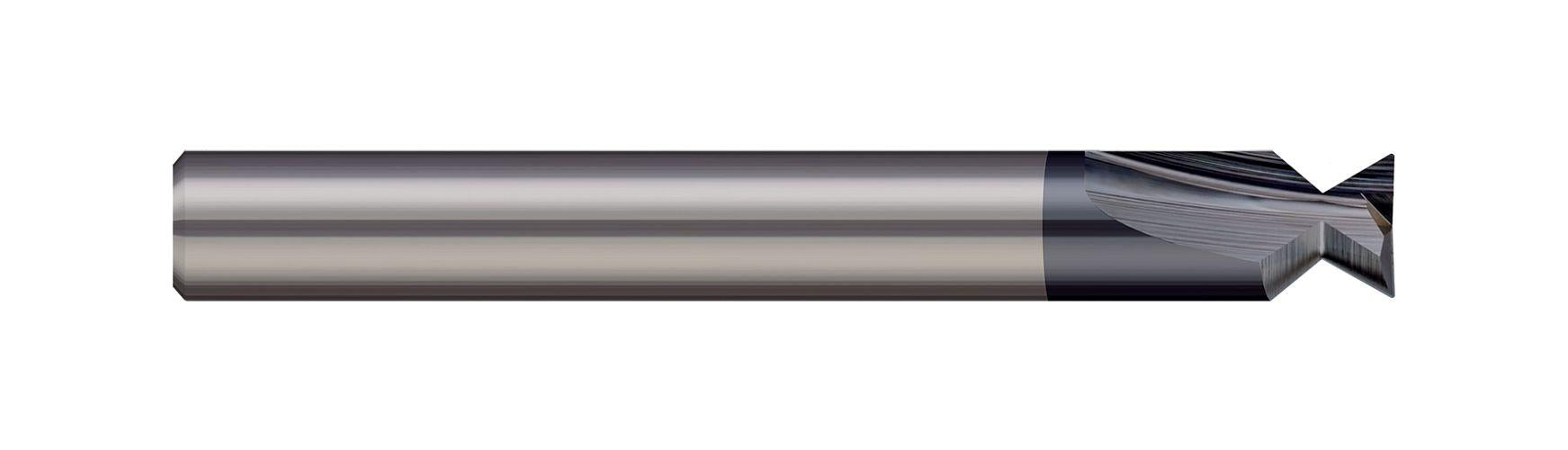

The Harvey Tool O-Ring Dovetail Cutter, MPN 23821, is designed for efficient milling tasks. It features a diameter of eleven sixty-fourths of an inch, a shank diameter of three sixteenths of an inch, and an overall length of two inches. This cutter includes a drop hole provision which is essential for milling complete dovetail grooves.
- Designed for milling full dovetail grooves with drop hole allowance
- Solid carbide construction for durability
- Two flutes for effective cutting
Product Highlights
This cutter is engineered to provide precision in complex milling tasks. It is suitable for various materials including aluminum, cast iron, steel, and wood.
Product Information
Standard Information
-
Brand: Harvey Tool
-
MPN: 23821
-
Material: Solid Carbide
-
Coating: Uncoated

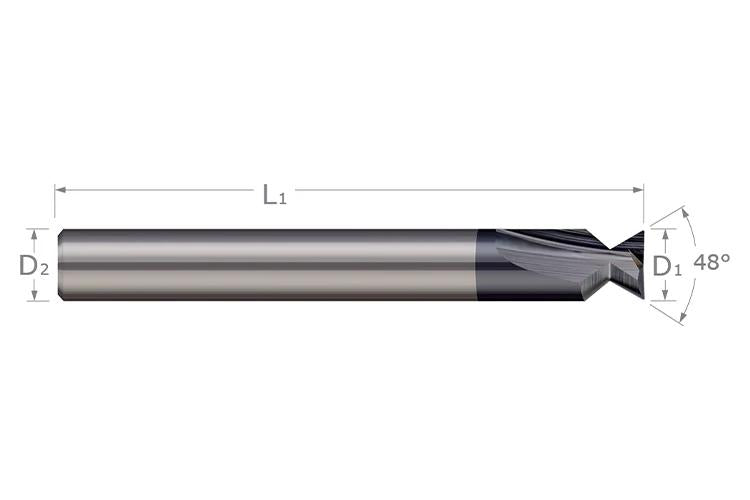

Technical Specifications
-
Cutter Diameter: 0.1720 inches (4.370 mm)
-
Shank Diameter: 0.1875 inches (4.763 mm)
-
Overall Length: 2 inches (50.800 mm)
-
No. of Teeth: 2
-
Corner Radius: 0.0310 inches
-
Flutes: 2
-
Included Angle: 48 degrees
-
Neck Diameter: 0.1160 inches (2.946 mm)
