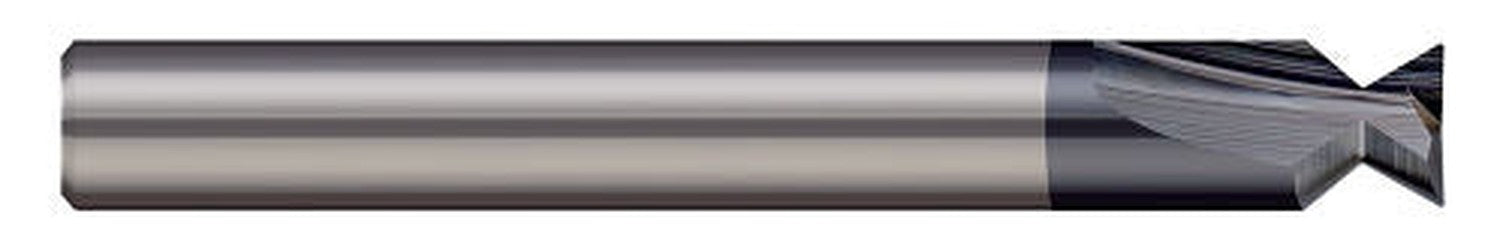

HARVEY TOOL 23821-C3 O-RINGS & GASKETS
HARVEY TOOL Harvey Tool 23821-C3 Parker Hannifin O-Ring Dovetail Cutters with Drop Hole Allowance, 11/64 in Dia Cutter, 3/16 in Dia Shank Cylindrical Shank, 48 deg Included Angle, 2 in OAL
HARVEY TOOL 23821-C3 O-RINGS & GASKETS
Harvey Tool 23821-C3 Parker Hannifin O-Ring Dovetail Cutters with Drop Hole Allowance, 11/64 in Dia Cutter, 3/16 in Dia Shank Cylindrical Shank, 48 deg Included Angle, 2 in OAL

Harvey Tool 23821-C3 Parker Hannifin O-Ring Dovetail Cutters with Drop Hole Allowance, 11/64 in Dia Cutter, 3/16 in Dia Shank Cylindrical Shank, 48 deg Included Angle, 2 in OAL

Brand: HARVEY TOOL
SKU: 23821-C3
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Harvey Tool 23821-C3 is a carbide dovetail cutter designed for precise machining. It features a diameter of eleven sixty-fourths of an inch and an overall length of two inches. This cutter has a cylindrical shank diameter of three sixteenths of an inch and is suitable for milling operations that require drop hole allowance.

  • Designed for milling full dovetail grooves
  • Offers two flutes for efficient cutting
  • Ideal for non-ferrous metals, stainless steel, and composites

Product Highlights

This cutter is ideal for creating dovetail profiles and is made from solid carbide material with an AlTiN coating for durability. The double-ended design and included angle of forty-eight degrees provide versatility in use.

Product Information

Standard Information

  • Brand: Harvey Tool
  • Material: Solid Carbide

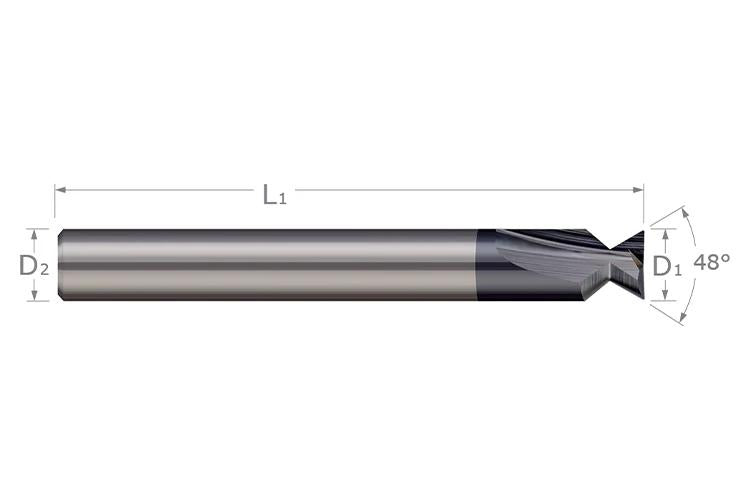

Technical Specifications
Diameter
0.172 inches
Shank Diameter
0.1875 inches
Overall Length
2.000 inches
No. of Teeth
2
Corner Radius
0.031 inches
Flutes
2
Double Ended
Yes
Included Angle
48 degrees
Neck Diameter
0.116 inches
Profile
Corner Radius
