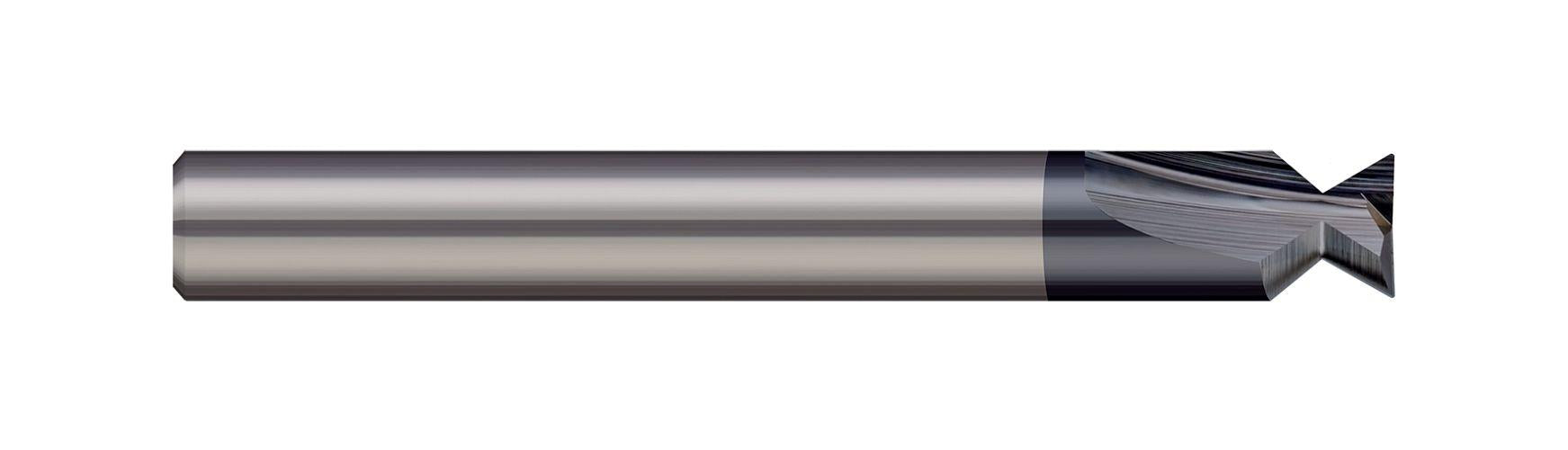

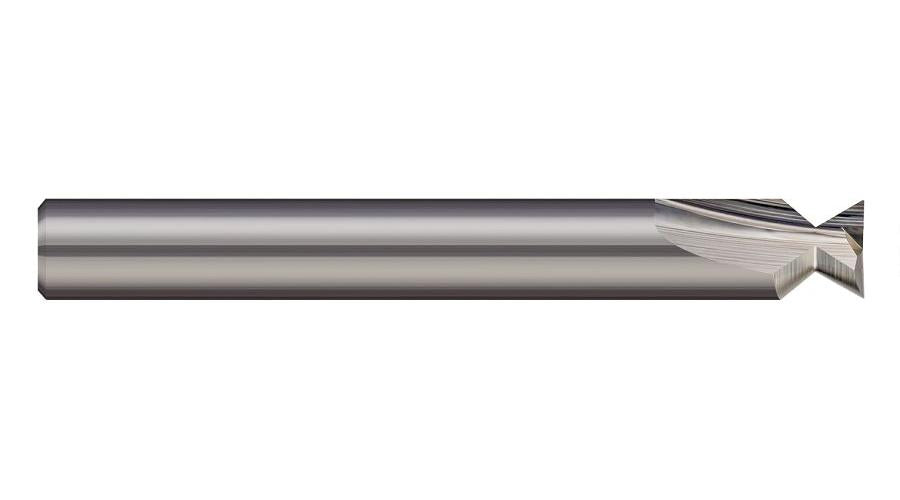

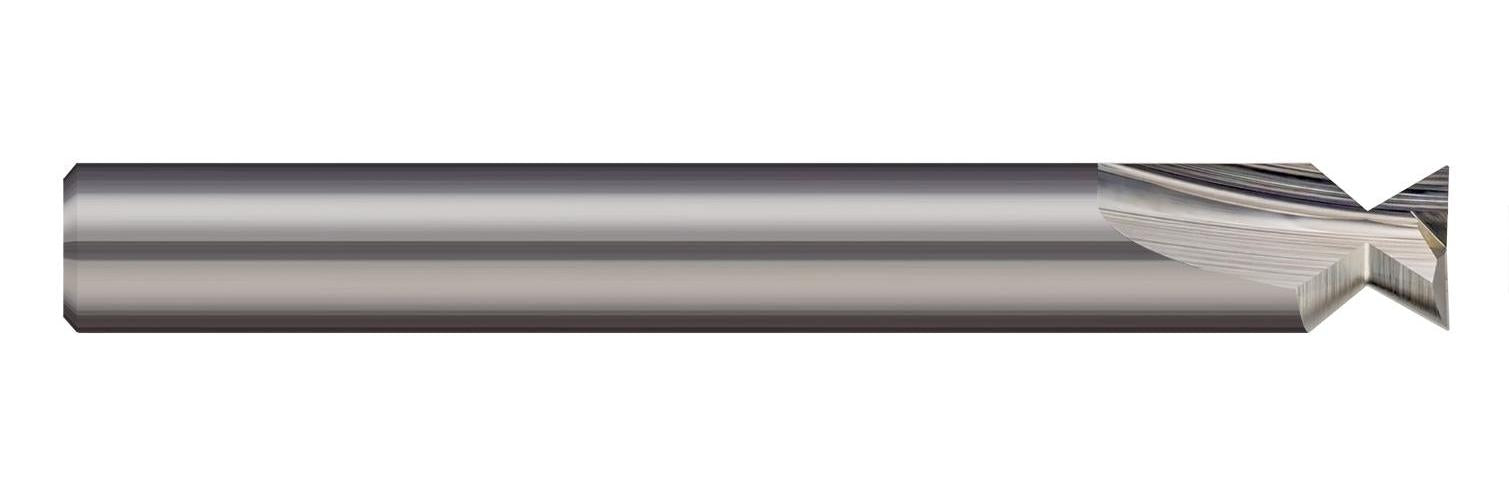

Harvey Tool 23814 HAR .103 48DEG PARKER O-RING DOVETAIL CUTTER .135 DIA

Brand: HARVEY TOOL
SKU: 23814
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$14.99
$14.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Harvey Tool 23814 is a carbide dovetail cutter designed for precision milling. This cutter has a diameter of 0.1350 inches with a 48-degree included angle, making it suitable for various applications in metalworking.

  • Designed for milling full dovetail grooves with drop hole allowance.
  • Undersized cutter allows climb milling for improved finish on both faces.
  • Compatible with materials such as aluminum, steel, and wood.

Product Highlights

This cutter is ideal for creating high-quality dovetail joints and achieving precision profiles.

Product Information

Standard Information

  • Brand: Harvey Tool
  • Part Number: 23814

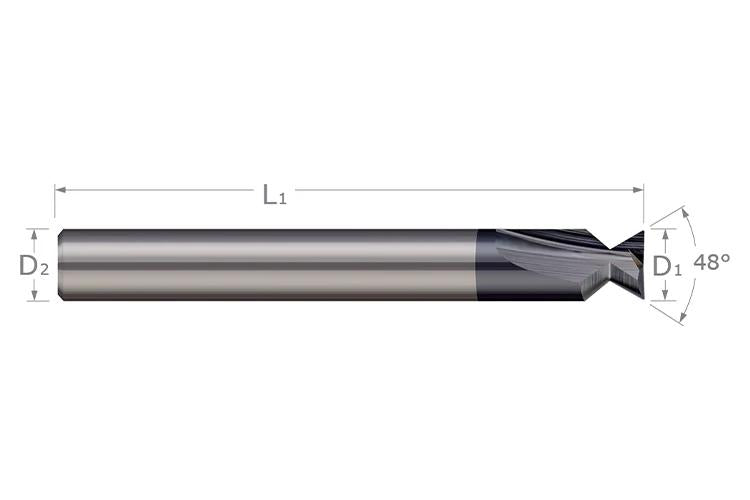

Technical Specifications

  • Material: Solid Carbide
  • Coating: Uncoated
  • Cutter Diameter: 0.1350 in
  • Shank Diameter: 3/16 in
  • Overall Length: 2 in
  • Number of Teeth: 2
  • Included Angle: 48 degrees
  • Corner Radius: 0.0150 in
