Harvey Tool 23814-C3 Parker Hannifin O-Ring Dovetail Cutter 0.1350 in Diameter

Product Description

The Harvey Tool 23814-C3 is a precision dovetail cutter designed for milling full dovetail grooves with a drop hole allowance. This solid carbide cutter features a diameter of zero point one three five inches, a two-inch overall length, and a shank diameter of three sixteenths inches. The cutter is coated with AlTiN for extended durability.

• Designed for milling full dovetail grooves
• Two flutes allow for efficient cutting
• Compatible with various materials including non-ferrous metals and stainless steel

Product Highlights

This dovetail cutter is suitable for both top and bottom radii milling, making it versatile in your machining tasks.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

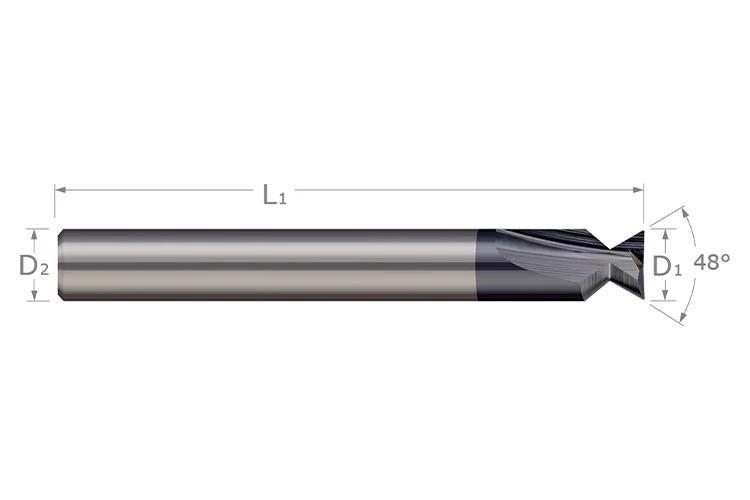

Technical Specifications

• Diameter: 0.1350 inches
• Shank Diameter: 0.1875 inches
• Overall Length: 2.0000 inches
• Flutes: 2
• Angle: 48 degrees
• No. Teeth: 2
• Corner Radius: 0.0150 inches
• Neck Diameter: 0.0880 inches
