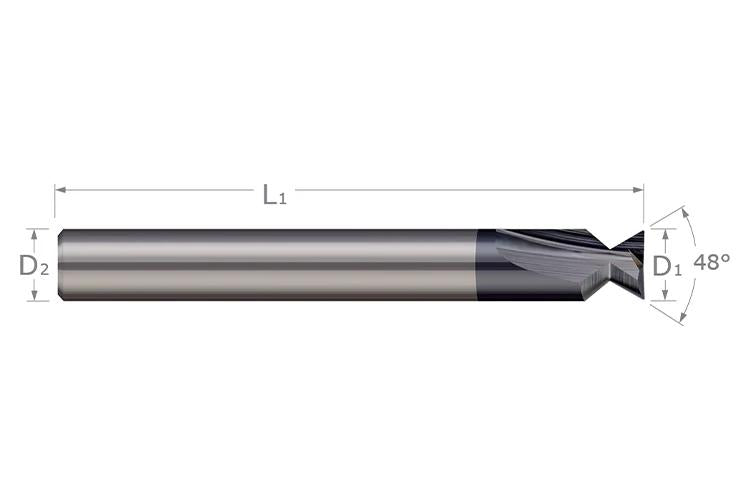

Harvey Tool 23807-C3 Parker Hannifin O-Ring Dovetail Cutter 0.07 in Diameter Cutter 1/8 in Shank Cylindrical

Product Description

The Harvey Tool 23807-C3 is a specialized dovetail cutter designed for precision milling applications. With a diameter of 0.07 inches and a shank diameter of one eighth inch, this cutter is made from solid carbide and features two flutes. It has an included angle of forty-eight degrees, making it suitable for a variety of materials, including non-ferrous metals and composites.

• Designed for milling full dovetail grooves
• Includes a drop hole allowance
• AlTiN coated for enhanced wear resistance

Product Highlights

This cutter is ideal for achieving clean finishes while milling both top and bottom radii. The undersized design allows for efficient climb milling, improving the overall finish quality.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 23807-C3

Technical Specifications

• Diameter: 0.07 inches
• Overall Length: 1-1/2 inches
• Shank Diameter: 1/8 inch
• Number of Teeth: 2
• Included Angle: 48 degrees
• Material: Solid Carbide
• Coating: AlTiN
• Neck Diameter: 0.054 inches
