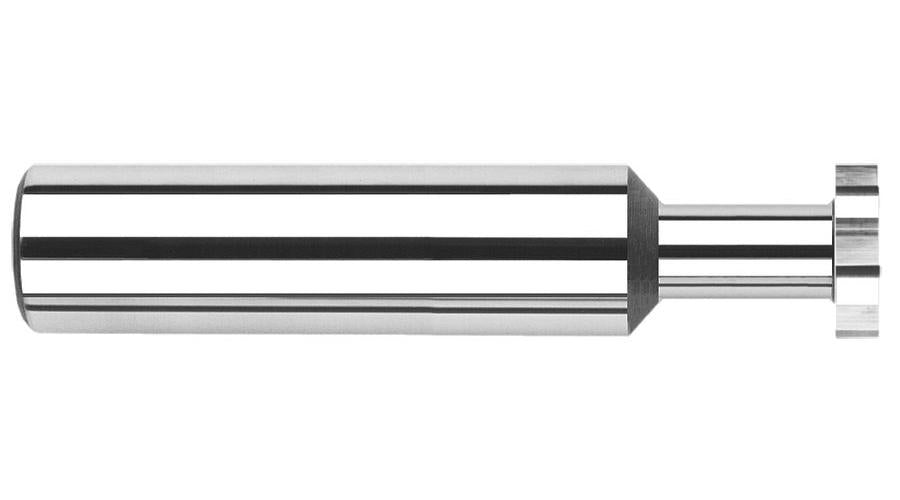

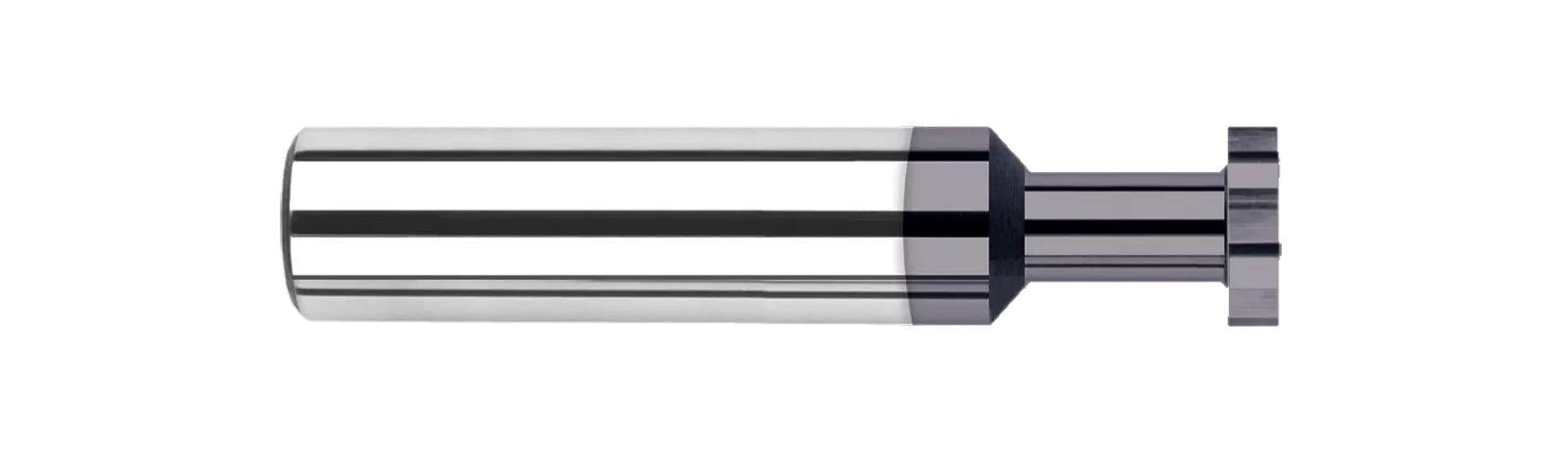

Harvey Tool 23512 Keyseat Cutter, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 0.039 in Cutting Width, Shank Connection

Product Description

The Harvey Tool 23512 is a carbide keyseat cutter featuring a diameter of one fourth inch and cutting width of zero point zero three nine inches. It is suitable for milling retaining rings and grooves. This tool is designed for high precision and efficiency in metalworking applications.

• Material: Carbide
• Coating: Uncoated
• Overall Length: 2.5 inches

Product Highlights

Durable and reliable, the Harvey Tool 23512 is perfect for applications requiring precise slot widths for retaining rings and provides exceptional performance in various materials.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: HVT23512

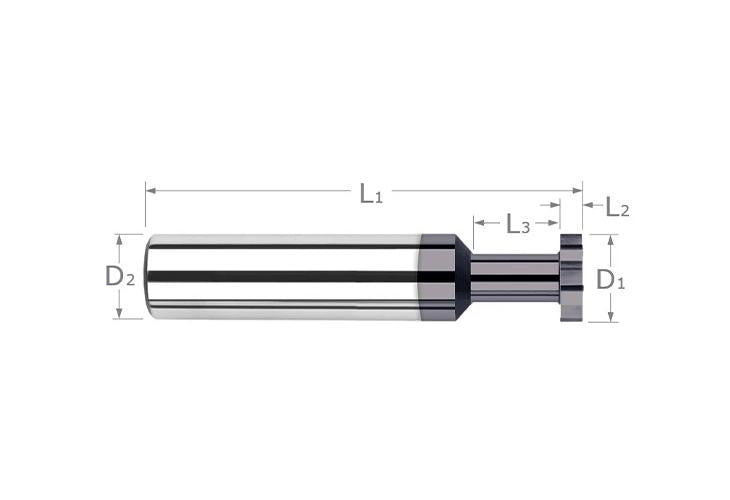

Technical Specifications

• Material: Solid Carbide
• Diameter: 0.2500 inches
• Cut Width: 0.0390 inches
• Shank Diameter: 0.2500 inches
• Overall Length: 2.5000 inches
• No. of Teeth: 6
• Neck Diameter: 0.1560 inches
• Neck Length: 0.1560 inches
