Harvey Tool 23208-C3 UnderCutting End Mill 0.125 Dia Cutter 1-1/2 Overall Length

Product Description

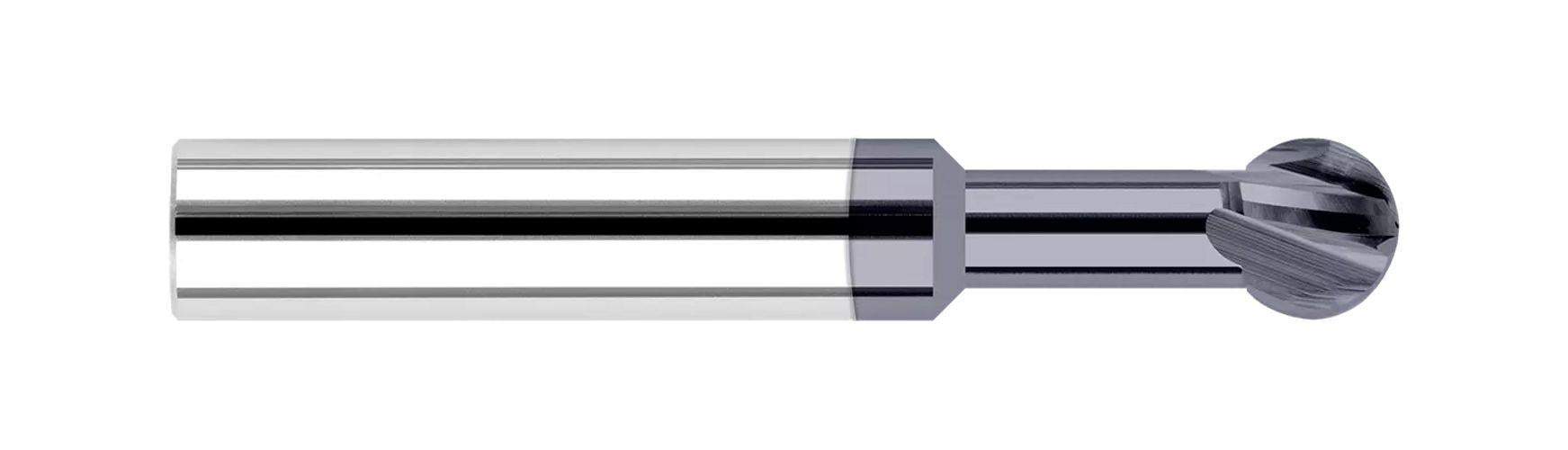

The Harvey Tool 23208-C3 is a carbide undercutting end mill designed for precision cutting. This tool features a diameter of one-eighth inch and an overall length of one and a half inches. It is coated with AlTiN to enhance durability and performance.

• 270-degree spherical ball profile
• Designed for undercutting and multi-axis machining
• Solid carbide and right-hand cutting direction

Product Highlights

This end mill is suitable for a variety of materials including non-ferrous metals, cast iron, and stainless steel. It features a four flute design with an upcut flute type for efficient material removal.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 23208-C3

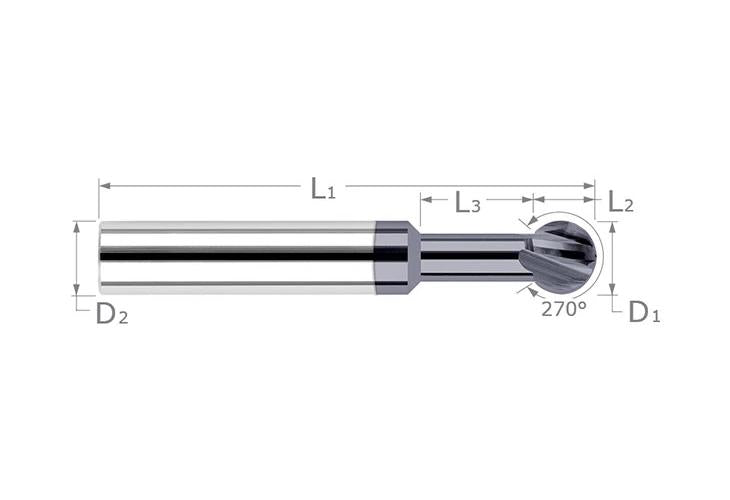

Technical Specifications

• Diameter: 0.1250 inches
• Shank Diameter: 1/8 inch
• Length of Cut: 0.107 inches
• Overall Length: 1.5000 inches
• Number of Flutes: 4
• Neck Length: 0.6070 inches
• Neck Diameter: 0.0760 inches
• Helix Angle: 10 degrees
