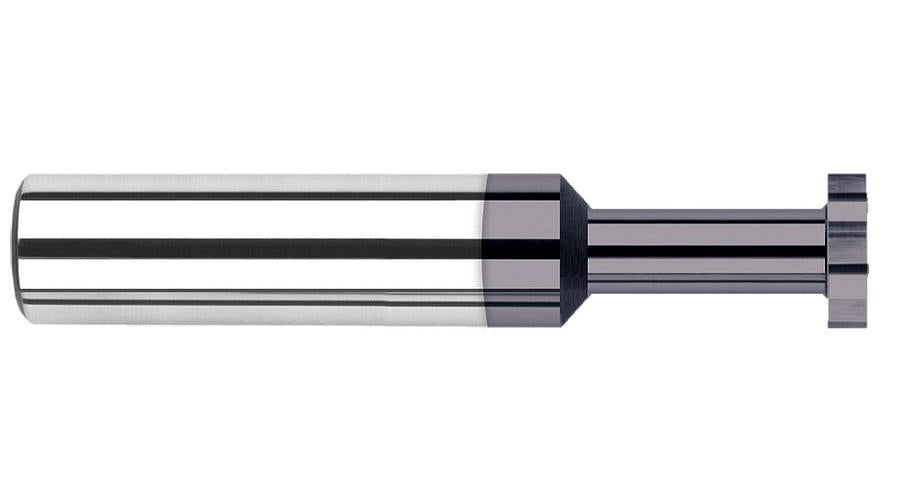

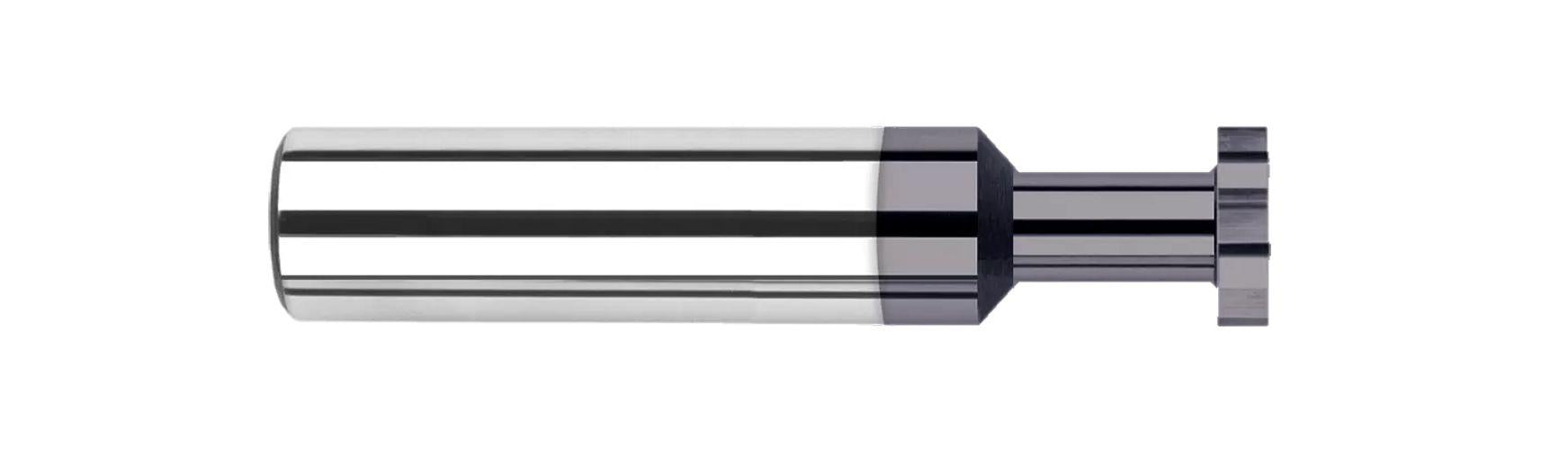

Harvey Tool 22660-C3 Keyseat Cutter 1/2 in Dia Cutter 0.125 in W Cutting 3 in OAL

Product Description

The Harvey Tool 22660-C3 is a keyseat cutter designed for milling applications. It features a diameter of one half inch and a cutting width of one eighth inch. The overall length of the cutter is three inches with a shank diameter matching the cutter diameter.

• Made of solid carbide with an AlTiN coating
• Suitable for right-hand cutting direction
• Designed for both ferrous and non-ferrous metals

Product Highlights

The cutter is ideal for precision milling of keyseats and other detailed cuts. It provides a reliable performance for various materials, including steel, stainless steel, and composites.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 22660-C3

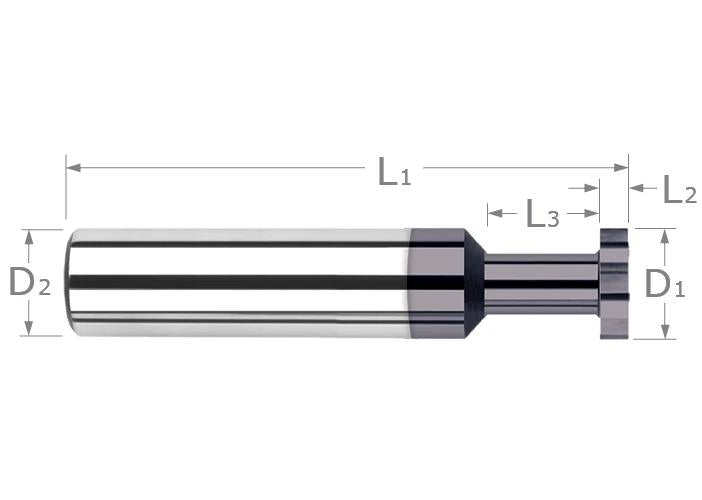

Technical Specifications

• Material: Solid Carbide
• Coating: AlTiN
• Diameter: 0.5000 inches (12.700 mm)
• Cut Width: 0.1250 inches (3.175 mm)
• Shank Diameter: 0.5000 inches (12.700 mm)
• Overall Length: 3.0000 inches (76.200 mm)
• Number of Teeth: 8
• Neck Diameter: 0.2500 inches (6.350 mm)
• Neck Length: 0.7500 inches (19.050 mm)
