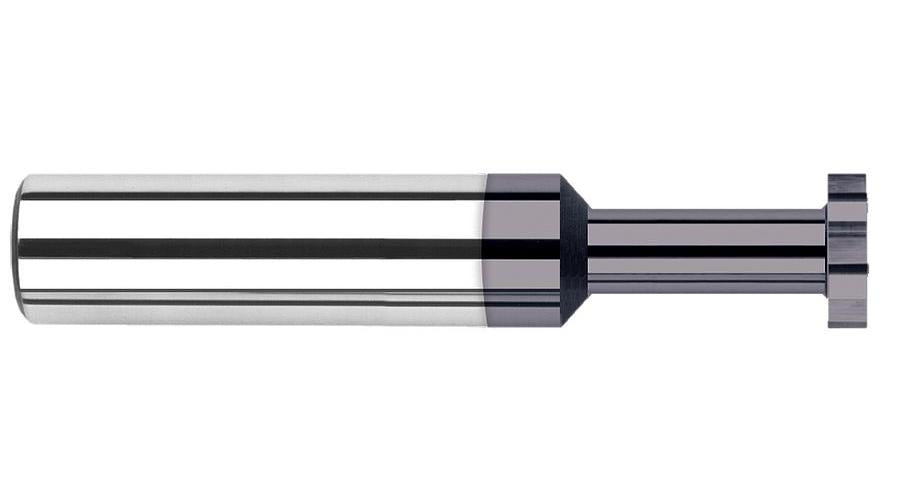

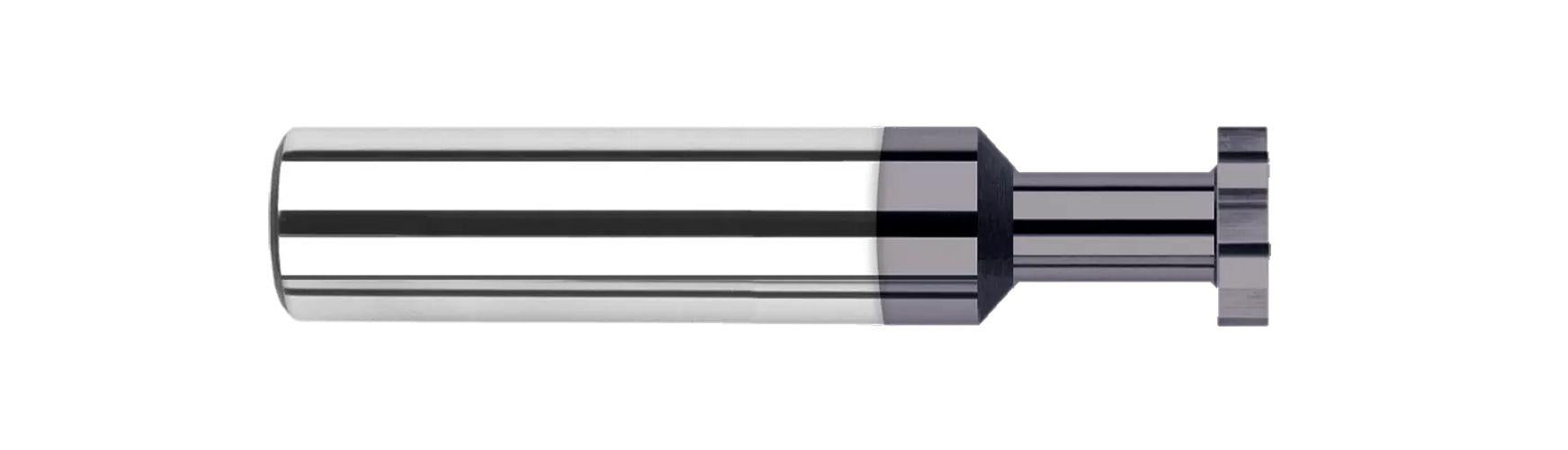

Harvey Tool 22509-C3 HARVEY 3/8 D x .030 W CARB KEYSEAT AlTiN

Product Description

The Harvey Tool 22509-C3 is a carbide keyseat cutter designed for precise slotting applications. This tool features a diameter of three-eighths inches and a cutting width of thirty thousandths of an inch. The AlTiN coating enhances durability and performance.

• Constructed with solid carbide for increased longevity
• Designed for use with CNC machines and manual milling
• Ideal for creating keyways and slots in various materials

Product Highlights

The Harvey Tool 22509-C3 provides excellent cutting performance and is suitable for a variety of machining applications.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Carbide

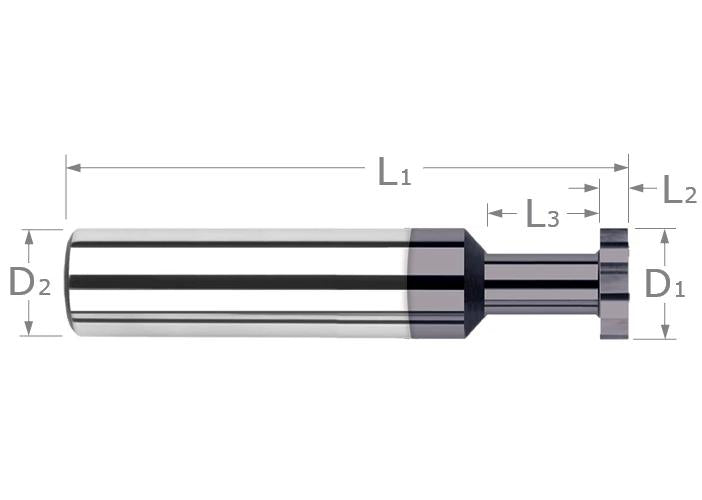

Technical Specifications

• Coating: AlTiN
• Diameter: 0.3750 inches (3/8)
• Cut Width: 0.0300 inches (0.762 mm)
• Shank Diameter: 0.3750 inches (3/8)
• Overall Length: 2.5000 inches (63.500 mm)
• No. Teeth: 8
• Neck Diameter: 0.1870 inches (4.750 mm)
• Neck Length: 0.5620 inches (14.275 mm)
