Harvey Tool 22505-C3 Standard Slotting Keyseat Cutter, Shank Connection, 3/8 in Dia Cutter, 0.02 in W Cutting, 2-1/2 in OAL, 3/8 in Dia Shank

Product Description

The Harvey Tool 22505-C3 is a keyseat cutter designed for precision milling. This tool is constructed from solid carbide and features an AlTiN coating for enhanced durability. The cutter has a diameter of three eighths of an inch and a cutting width of zero point zero two inches. With an overall length of two and a half inches, it is suitable for various milling tasks. It is designed with a right-hand cutting direction and is ideal for non-ferrous metals, cast iron, steel, stainless steel, and composites.

• Cutter diameter of three eighths of an inch.
• Two and a half inch overall length with a right-hand cutting direction.
• Eight flutes for efficient cutting.

Product Highlights

Use this cutter for keyseating and slotting applications across a wide range of materials.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

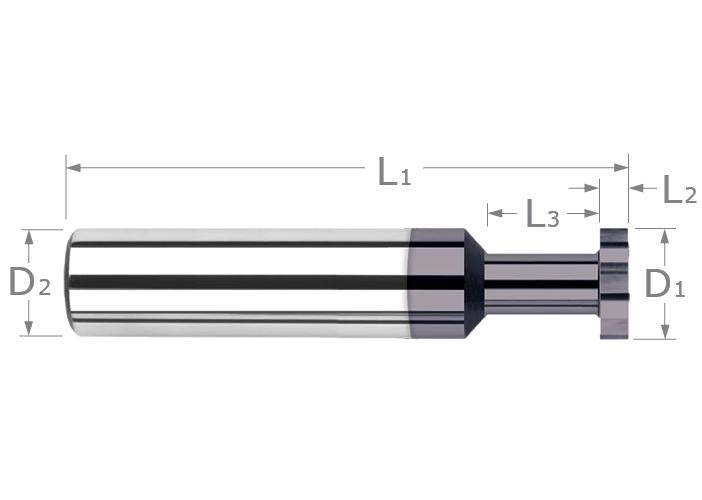

Technical Specifications

• Coating: AlTiN
• Diameter: 0.3750 inches (3/8)
• Cut Width: 0.0200 inches (0.508 mm)
• Shank Diameter: 0.3750 inches (3/8)
• Overall Length: 2.5000 inches (63.500 mm)
• No. Teeth: 8
• Neck Diameter: 0.1870 inches (4.750 mm)
• Neck Length: 0.5620 inches (14.275 mm)
