Harvey Tool 22422-C3 HARVEY 5/16 D x .050 W Carb Keyseat AlTiN

Product Description

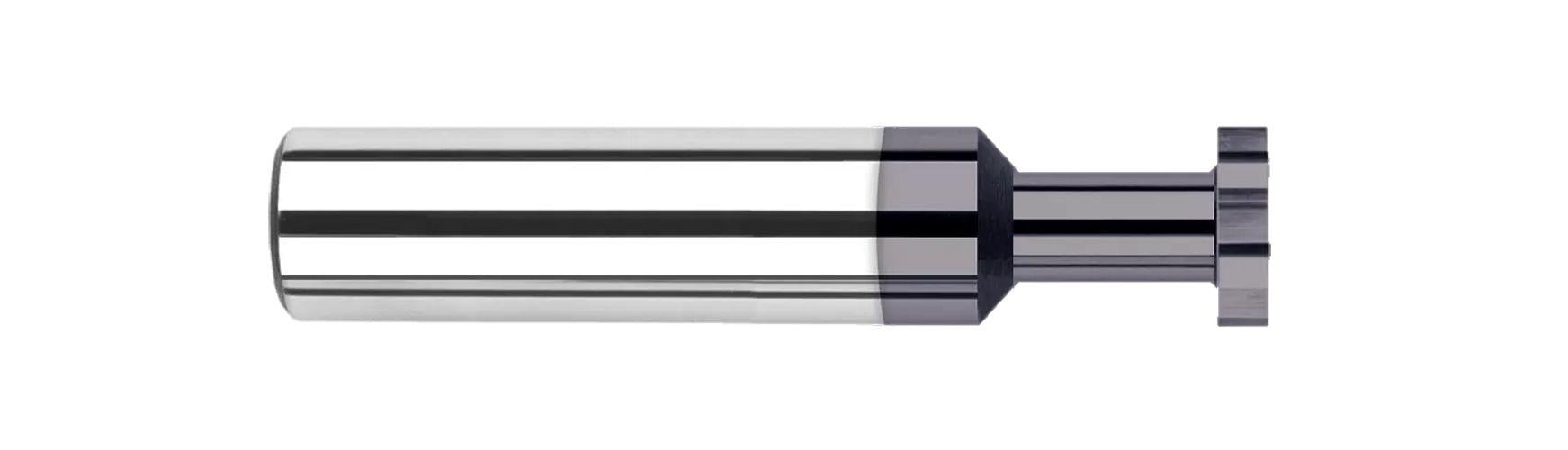

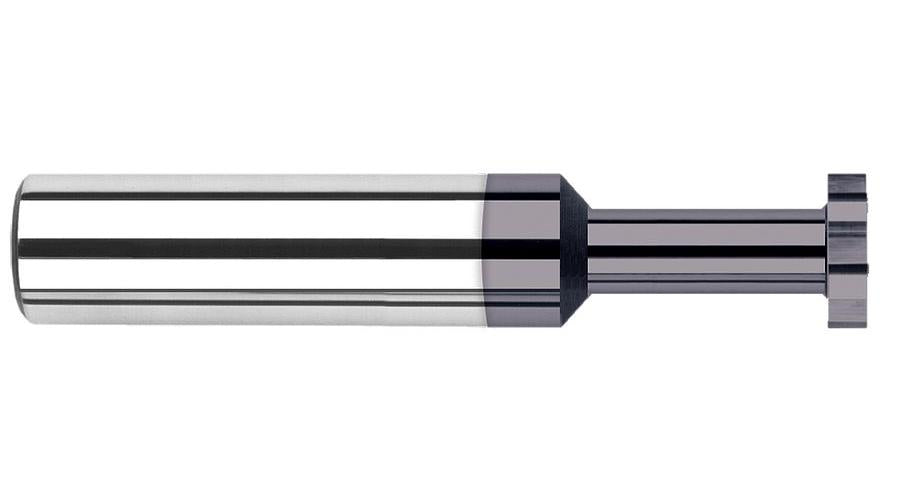

The Harvey Tool 22422-C3 is a carbide keyseat cutter with a diameter of five-sixteenths inches. This cutter features an AlTiN coating that increases wear resistance. It is suitable for various materials and offers precise cutting capabilities.

• Diameter: five-sixteenths inch
• Cut Width: fifty-thousandths inch
• Overall Length: two and a half inches

Product Highlights

The 22422-C3 model is designed for high performance in milling applications. It is part of the keyseat cutter category and ensures consistent results.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Carbide

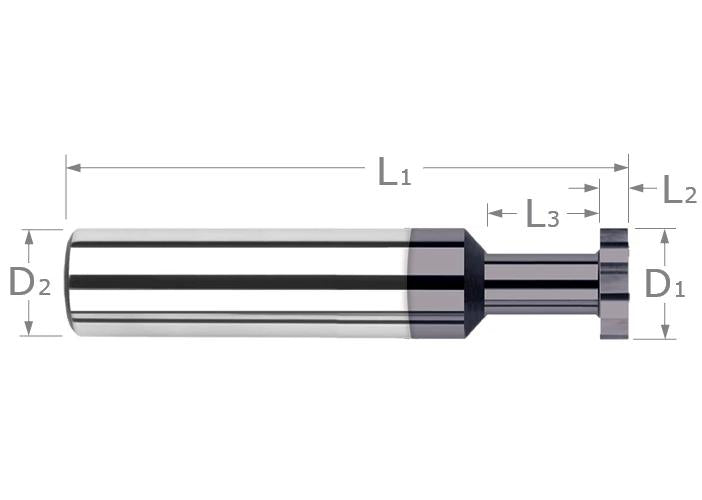

Technical Specifications

• Coating: AlTiN
• Diameter: five-sixteenths inch (7.938 mm)
• Cut Width: fifty-thousandths inch (1.270 mm)
• Shank Diameter: five-sixteenths inch (7.938 mm)
• Overall Length: two and a half inches (63.500 mm)
• No. Teeth: six
• Neck Diameter: one hundred fifty-six thousandths inch
• Neck Length: four hundred sixty-eight thousandths inch
